To design an electrical parallel circuit in AutoSIM 200 where a lamp can be turned on by pressing either of two push buttons (OR logic).

Components Required:
Two Push Buttons (Normally Open - NO)
Lamp (Indicator Light)
Power Supply (24V DC or 230V AC, based on circuit design)
Wires & Connections
Circuit Working Principle:
The two push buttons are connected in parallel.
The lamp will turn ON when either of the push buttons is pressed.
The circuit follows OR logic, meaning only one button needs to be pressed for activation.

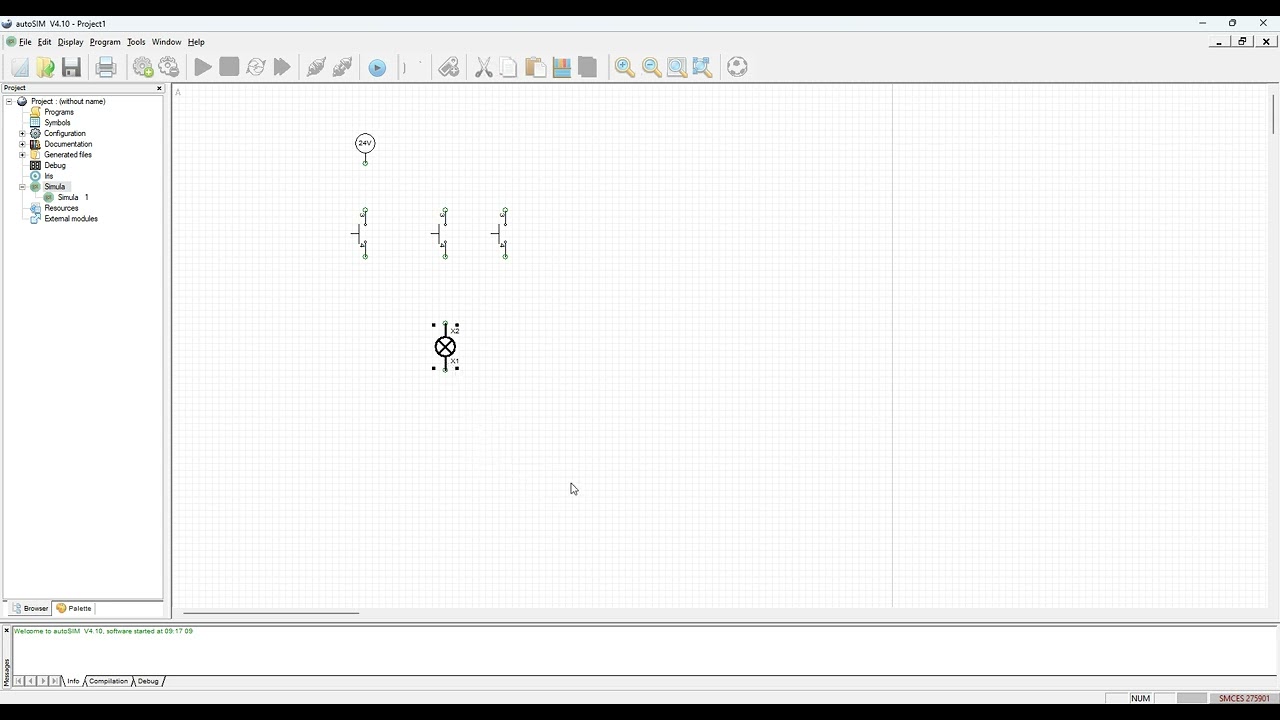

Steps to Design in AutoSIM 200:
Add Electrical Components:

Place two push buttons (NO).
Connect them in parallel before reaching the lamp.
Add a power source.
Make the Circuit Connections:

Ensure both push buttons can independently complete the circuit.
Simulate the Circuit:

Press one button → Lamp turns ON
Press both buttons → Lamp remains ON
Release all buttons → Lamp turns OFF
