REBUILT IN 2018 BY GCH MACHINERY,

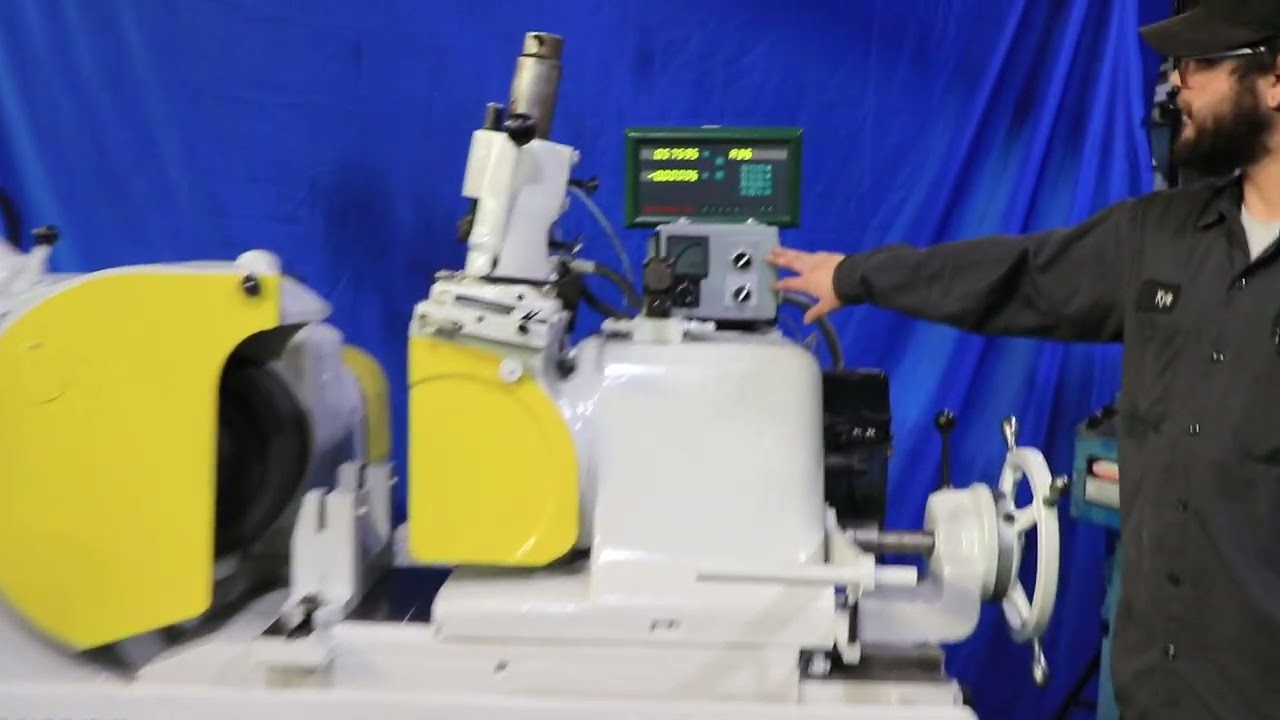

CINCINNATI No. 2 "OM" CENTERLESS GRINDER
(THIS MACHINE WAS MADE IN THE USA!)


S/N: 2M2H1Y-463


DIAMETER CAPACITY, STD. .......... 1/16" TO 3.5"
LOW THRU FEED WORK REST .......... 2" TO 4.75"
BAR WORK ................. 1/8" TO 2" DIA. 18" LONG

GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL WIDTHS. ........... 4", 6" OR 8"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 20 H.P.

REGULATING WHEEL DIAMETER, MIN. .... 9"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL WIDTHS. ........... 4", 6" OR 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 7,000 LBS.
FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:
HYDRAULIC DRESSER FOR GRINDING WHEEL, WITH JOYSTICK
HYDRAULIC DRESSER FOR REGULATING WHEEL, WITH JOYSTICK
THRUFEED WORK REST WITH BLADES, FOR 6" WIDE WHEELS
EXTERNAL COOLANT SYSTEM, TANK & PUMP
"AUTOMATION DIRECT" :SURE SERVO" ELECTRONIC VFD PROVIDING
INFINITELY VARIABLE SPEEDS FOR THE REGULATING WHEEL
CONTROL STATION, WITH RHEOSTAT CONTROL KNOB FOR
INFINITELY VARIABLE REGULATING WHEEL SPEEDS
DIGITAL DISPLAY FOR INDICATION OF REGULATING WHEEL SPEED
"DRO PROS" DIGITAL READOUT DISPLAY FOR REGULATING WHEEL
MOVEMENT, FORWARD & BACK
"DROPSA" "SMART3" "MADE IN ITALY" AUTOMATIC
LUBRICATION SYSTEM
SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS
20 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL
MACHINE IS WIRED FOR 440 VOLTS


** REBUILT IN 2018 BY GCH MACHINERY **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
