Скачать или смотреть 18 GPM Reverse Osmosis System By Complete Water Solutions

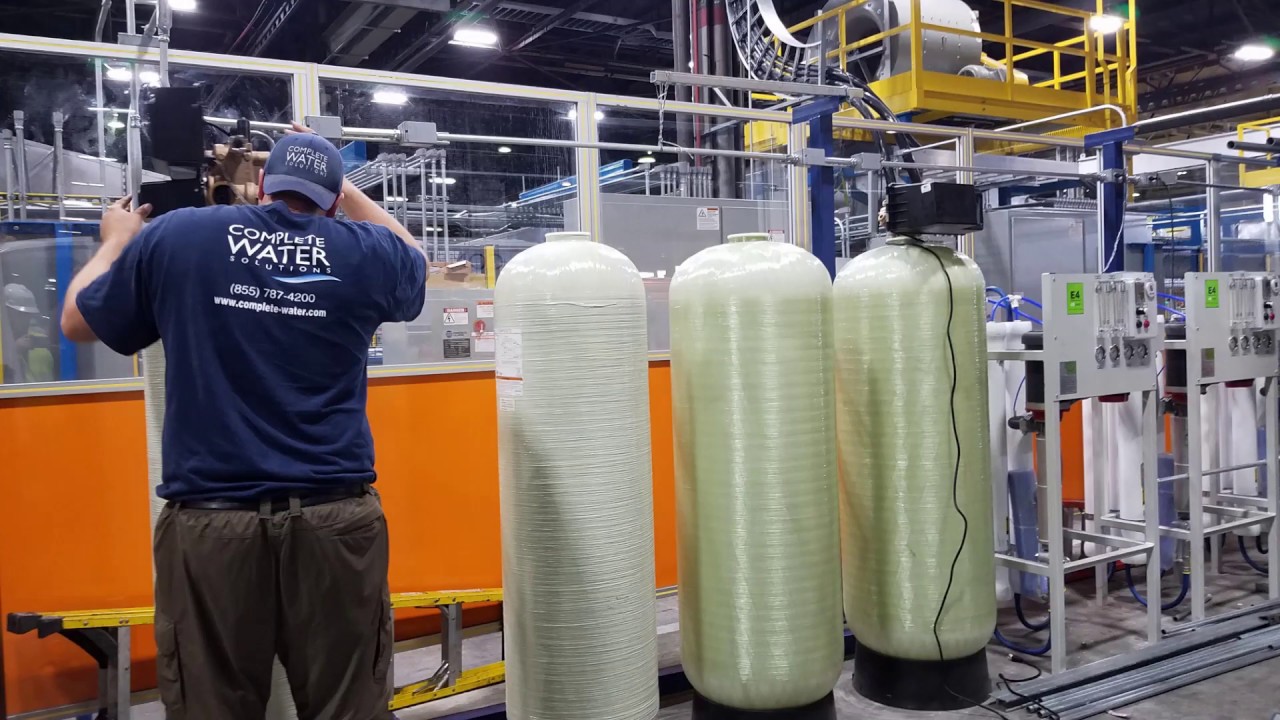

Recently Complete Water Solutions completed a turnkey installation of a 18 GPM Reverse Osmosis System complete with pre-treatment. Do you need a system contact complete water solutions [email protected] (855) 787-4200.

The system composed of the following equipment:

CWSS-150-2
Fleck 2900 Softener Control Valve
NXTR2 Digital Controller
5 Cubic Feet C110 10% Cross Link Softener Resin
2″ Clack Flow Meter
18″ x 65″ Fiberglass Tanks (Non-ASME)

CWSC-7-2
Fleck 3150 2″ Control Valve
Time Clock Controller
7 Cubic Foot Carbon Media (Virgin)
21″ X 65″ Diameter Fiberglass Tanks (Non- ASME)

E4-8800-DLX Reverse Osmosis (x3)
(4) AK4040FM Low Energy Membranes (For Cold Water)
Auto Flush Timer Assembly w/Valve
Pressure Gauges
Pre Filter
Post Pre Filter
Primary
Final
Flow Meters
Permeate
Concentrate
Conductivity Controller

Waste System
4,450 GPH Stainless Steel Pumps
Overflow Safety Alarm
