AKAMURA TOME WT 250 For Sale :- (TWIN TURRET TWIN SPINDLE TURN-MILL CNC MACHINE)

TWIN TURRET TWIN SPINDLE TURN-MILL CNC MACHINE with BarFeeder,

Parts Includes In Machine :-
Total Axis - 7 / X1, X2, Z1, Z2, C1, C2, B1 ;
Total Turning Spindles - 2 / 250mm (9.84 Inch) & 165mm (6.5 Inch),
Total Turrets - 2 / 12 Station (Upper & Lower Turret),

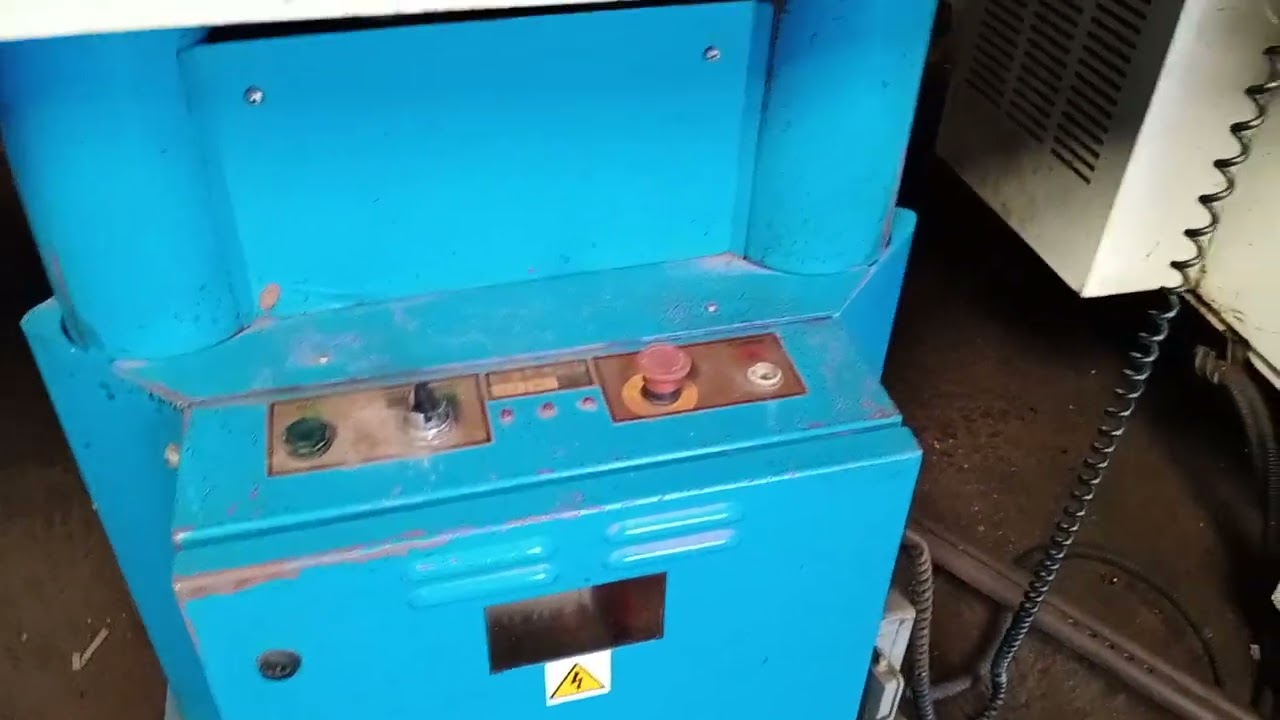

Bar Feeder - MultiFeed, Short Magazine CNC Barfeed,
Part Catcher (Carrying Workpieces Outside Machine),
Tool Setter,
Chip Conveyor (Installed at the Side of the Machine),
Stabilizer - SERVO VOLTAGE STABILIZER 40 KVA,
Air Dryer - TRIDENT COLDSPELL TID 35 CFM,

General :-
System (Control) - FANUC 18i-T ,
Servo System - AC Drives & AC Servo Motors,
Machine Height - 2050mm (80.71 Inch),
Floor Space - L3475*W1933 mm (136.81*76.10 Inch),
Machine Weight - 6000 kg (6 Tone),
Year Of Manufacturing - 2001,

Capacity & Axis Travel :-
Max. Turning Diameter - 250mm (9.84 Inch),
Max. Turning Length - 435mm (17.13 Inch),

X1-Axis Travel - 195mm (7.68 Inch),
Z1-Axis Travel - 480mm (18.90 Inch),
C1 - 360 Degree,

X2-Axis Travel - 195mm (7.68 Inch),
Z2-Axis Travel - 480mm (18.90 Inch),
C2 - 360 Degree,

Main Spindle (Left Side) :-
Spindle Speed - 4500RPM,
Spindle Nose - A2-5,
Hole Through Spindle - 63mm (2.48 Inch),
Drive Motor - 26/22 kW,

Sub-Spindle (Right Side) :-
Spindle Speed - 4500RPM,
Spindle Nose - A2-5,
Hole Through Spindle - 63mm (2.48 Inch),
Drive Motor - 7.5/5.5 kw,
B-Axis Motor - 2.1 kW,

C-Axis (C1 & C2 Axis) :-
Index Accuracy - 40Sec,
Max. Programmable Index Angel - 99999.999 ,
Least Input Increment - 0.001 Degree,
Least Command Increment - 0.001 Degree,
C-Axis Travel - 360 Degree (C1 & C2),
C-Axis Drive Motor (Cf) - 0.2 kW,

Rotary Tool Spindle (Upper / Lower Turret) :-
Spindle Speed - 30 to 3600RPM,

Rotary Tool Drive Motor - 3.7/2.2 kW,
Number of Tool Mounting Positions - 12,

Turret (Upper / Lower) :-
Number of Stations - 12,
Tool Size - 25mm (1 Inch),
I.D. Turning Tool Mounting Bore Dia. - 32mm (1.26 Inch),
Turret Index Motor - Servo Motor,

Cutting Feedrate :-
Rapid Traverse X1/X2 - 12000 mm/Min. (472.44 Inch/Min.),
Rapid Traverse Z1/Z2 - 24000 mm/Min. (944.88 Inch/Min.),
Cutting Feed X1/X2 - 0.0001 to 500 mm/Min. (0.000004 to 19.70 Inch/Min.),
Cutting Feed Z1/Z2 - 0.0001 to 500 mm/Min. (0.000004 to 19.70 Inch/Min.),
Jog Feed X/Z - 0 to 1260 mm/Min. (0 to 49.61 Inch/Min.) / 16Steps ,

Part Catcher A type (Carrying Workpieces Outside Machine) :-
Type - Swing Bucket Type,
Capacity - 65 mm (2.56 Inch),
Length - 100/200 mm (3.94/7.87 Inch),
Weight - 1.5/33.11 kg,

Machine Location - Talawade, Pune, Maharashtra, India.

Machine Dry-run Video Link :-
   • Nakamura WT250 CNC Turn-Mill - Machine For...

Contact Details -
Prashant Zodge
+919623158072
Mail ID - [email protected]
