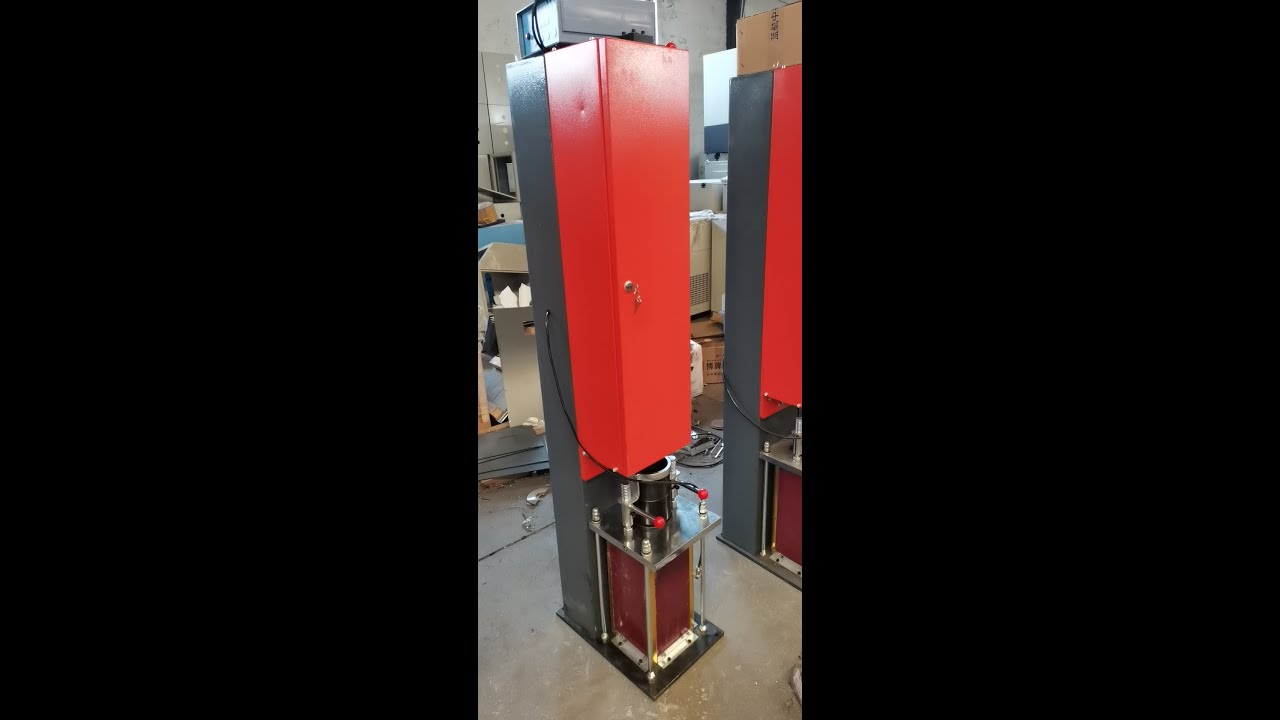

Скачать или смотреть EN 12697-10, 12697-30, BS 598-107 Standard automatic asphalt digital electrical marshall compactor

Our company engages in producing a variety of material test moulds and the material instruments with high quanlity.

This equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard. The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia. 101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, stroke times to be preset freely, auto counting and easy to operate etc.

Email: [email protected]

Parameters:

1.Compaction hammer weight : 4536g±9g, drop height : 453.2mm±1.5mm
2.Blows per minute : 60s/min
3.Preset compaction times, preset range: 0-9999s, have a memory feature
4.Dimension of laminated woodblock compaction baseplate : 457×200×200(mm)
5.Dimension of concrete baseplate : 120×450×450(mm)
6.Specifications of motor : 370W 380V 50HZ
7.Outside measurement : 1740×500×500(mm)
8.Complete machine weight: 180Kg
