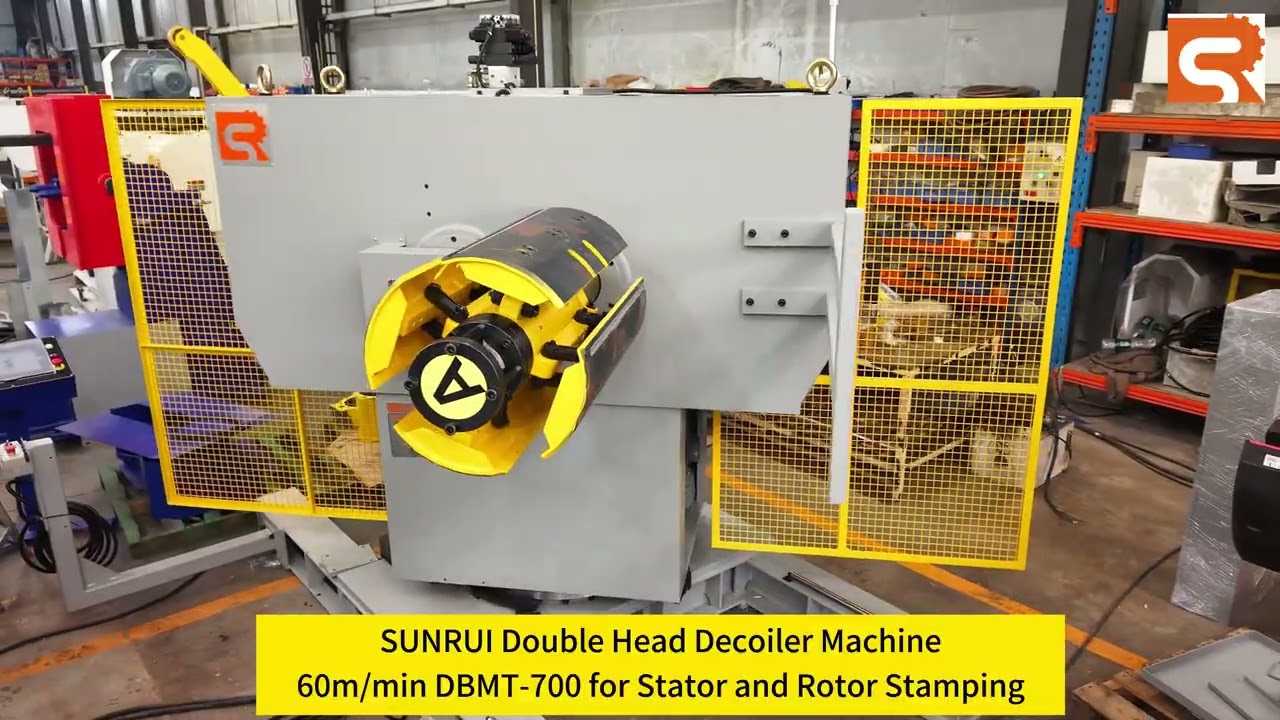

Скачать или смотреть SUNRUI DBMT-700 Double Head Decoiler:60m/min for Stator Rotor Stamping | Motor Core Production

Precision Powerhouse for Electric Motor Core Production

The SUNRUI DBMT-700 Double Head Decoiler is engineered as the robust and efficient feeding solution for the demanding, high-volume world of electric motor manufacturing. Specifically designed for stator and rotor stamping lines, it combines high payload capacity with high-speed operation to ensure continuous, reliable, and precise material flow for producing the critical laminations at the heart of every motor.

Built for Heavy-Duty, High-Output Environments

High Payload Capacity: Engineered with a reinforced structure to handle a maximum single-side payload of 5,000 kg, ensuring stable operation with large, heavy silicon steel coils common in motor production.

Optimized Production Speed: Delivers a smooth, consistent feed at speeds up to 80 meters per minute, perfectly synchronized with high-speed progressive stamping presses to maximize line throughput.

Precision for Thin-Gauge Materials: Expertly processes electrical steel coils with a width of up to 700 mm and a delicate thickness starting from 0.5 mm, maintaining material integrity and flatness critical for lamination performance.

Dual-Head, Continuous Operation: Its core feature allows for non-stop production. While one head feeds the active coil into the stamping line, the other head is prepared with the next coil, reducing changeover time to mere seconds and dramatically increasing overall equipment effectiveness

Technical Specifications & Key Advantages

Feature Specification / Benefit
Model:SUNRUI DBMT-700 Double Head Decoiler
Max. Single-Side Weight:5,000 kg
Max. Operating Speed： 80 m/min
Material Width：Up to 700 mm
Material Thickness：From 0.5-1.0 mm
Core Function：Non-stop feeding for stator/rotor stamping lines
Key Benefit Maximizes uptime and output for electric motor core production
Engineered for Reliability and Integration
The DBMT-700 is built with a heavy-duty mandrel and frame to prevent deflection under full load. Its advanced servo-driven control system guarantees precise tension control and flawless synchronization with downstream stamping equipment, ensuring every lamination is produced with consistent accuracy. This machine is not just a decoiler; it is a strategic investment in building a more productive, automated, and competitive motor manufacturing line.
