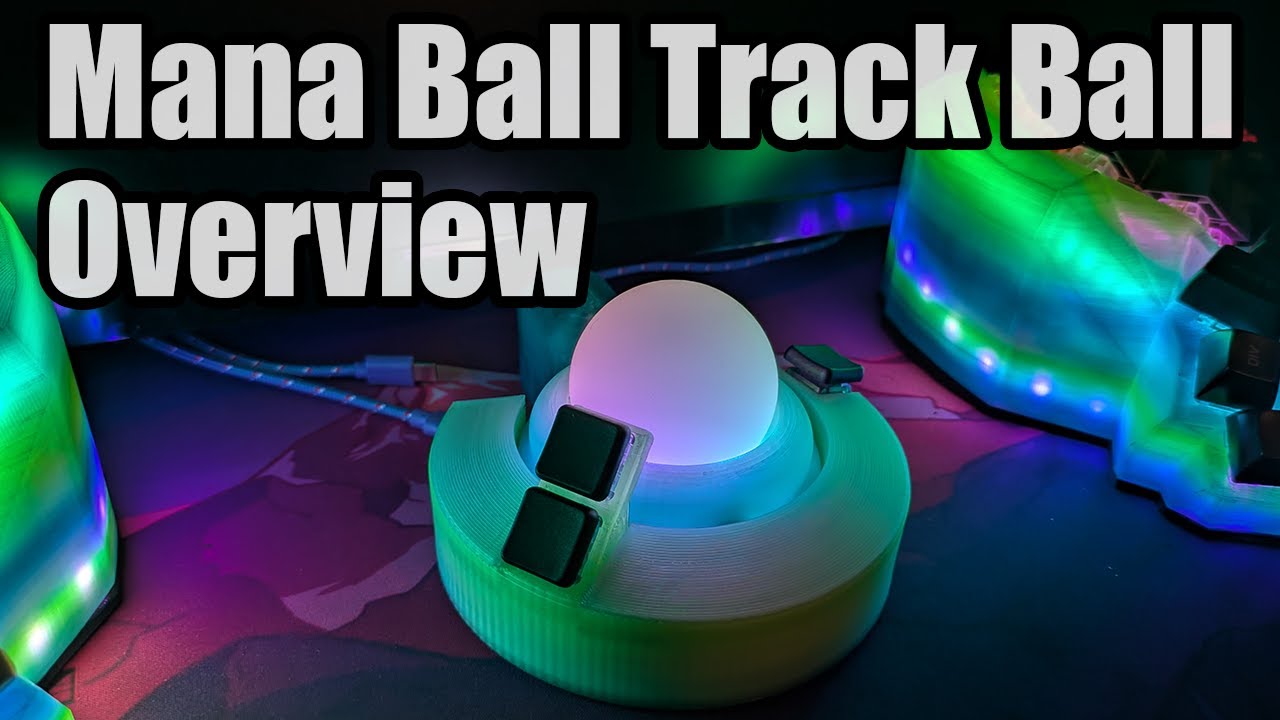

Introducing the Mana Ball - a fully modular, open-source 3D-printable trackball with RGB lighting and swappable button modules!

Trailer:    • Mana Ball - Open Source DIY Modular Trackb...
Overview and features:    • Mana Ball - Open Source DIY Modular Trackb...

🌟 FEATURES:
• Modular design with hot-swappable components
• PMW3360 high-precision optical sensor
• 6 RGB LEDs illuminating a translucent 50mm ball
• Smooth Rexroth Ball Transfer Units
• QMK firmware on RP2040 microcontroller
• Drag scrolling and customizable settings
• Low-profile ergonomic design

🔗 PROJECT LINKS:
GitHub Repository: https://github.com/ArtiomSu/ManaBall-...
QMK Firmware Fork: https://github.com/ArtiomSu/qmk_firmware (branch: artiomsu_manaball)
QMK RAW HID Router: https://github.com/ArtiomSu/QMK-Raw-H...
Makers World: https://makerworld.com/en/models/2009...

📋 WHAT YOU'LL NEED:
• 3D printer
• PMW3360 sensor module
• RP2040 microcontroller
• 3x Rexroth Ball Transfer Units
• 50mm trackball
• 6x WS2812B RGB LEDs
• Low-profile keyboard switches (optional)
• USB-C cable

🛠️ ASSEMBLY GUIDES:
Head Assembly:    • Mana Ball - Open Source DIY Modular Trackb...
Body Assembly:    • Mana Ball - Open Source DIY Modular Trackb...
Button Module:    • Mana Ball - Open Source DIY Modular Trackb...

📄 LICENSE:
CC BY-NC-SA 4.0 - Free for personal use, modifications must be shared

💬 Questions? Open an issue on GitHub!
