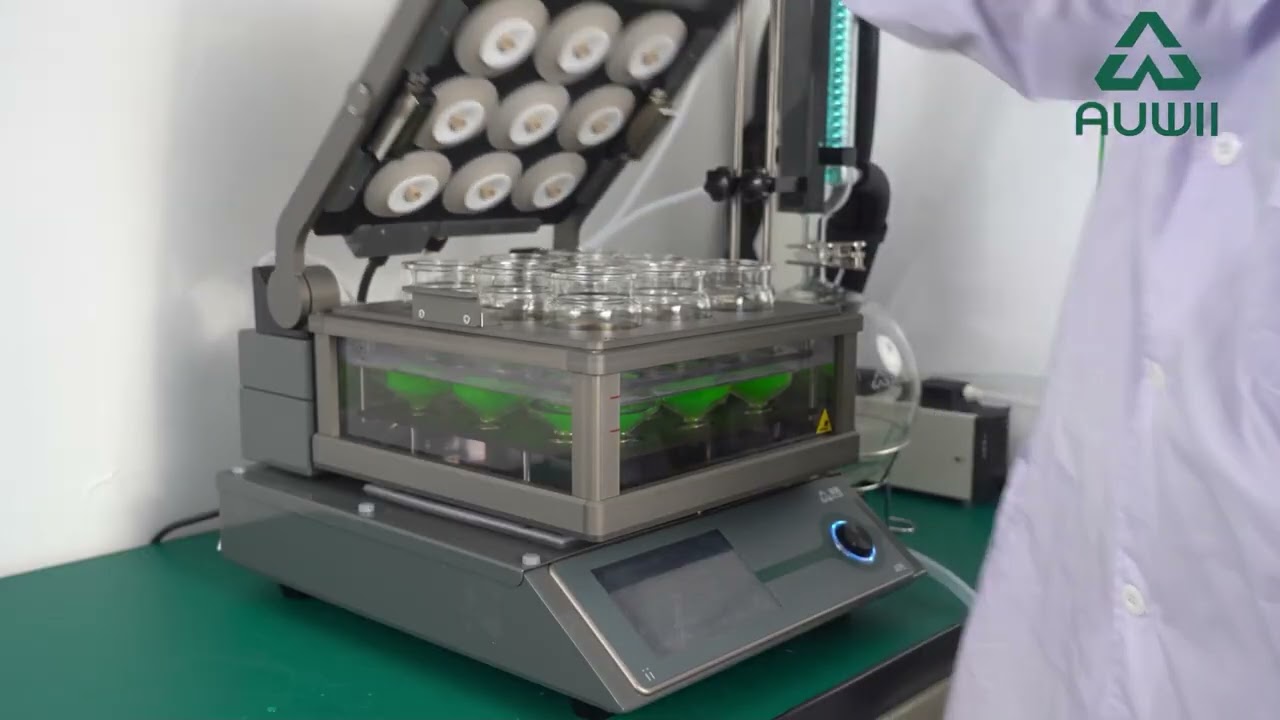

Скачать или смотреть Vakuum Parallel Evaporator PÄVAP

High Throughput Vacuum Parallel Evaporator: Modular design, compatible with multiple volume vials

The APE series vacuum parallel concentrator adopts a modular design, and can be equipped with 850 ml, 450 ml, 250 ml, 60 ml sample bottles.

flip-up vacuum cover (patented technology)
vacuum pump
chiller or a solvent collector

The vacuum cover plate has a heating function. After the solvent vapor enters the vacuum cover plate, it is heated and evaporated again to avoid condensing and refluxing to contaminate the sample. The heating temperature range can reach up to 70°C.

High-intensity three-sided transparent water bath with built-in backlight for easy observation of sample concentration. The backlight can be controlled by software.

The hot water outlet in the water tank is annularly distributed to ensure that the water temperature difference in the water tank is less than 0,5°C

The vibration speed can be set by software, 80~250rpm.
The sample vibrates around the sample bottle, which can increase the evaporation area, speed up the concentration, and suppress the sample bumping.

The software follows the GLP regulation:
Support user login management, records management, method management, and data can be exported through the USB interface.
