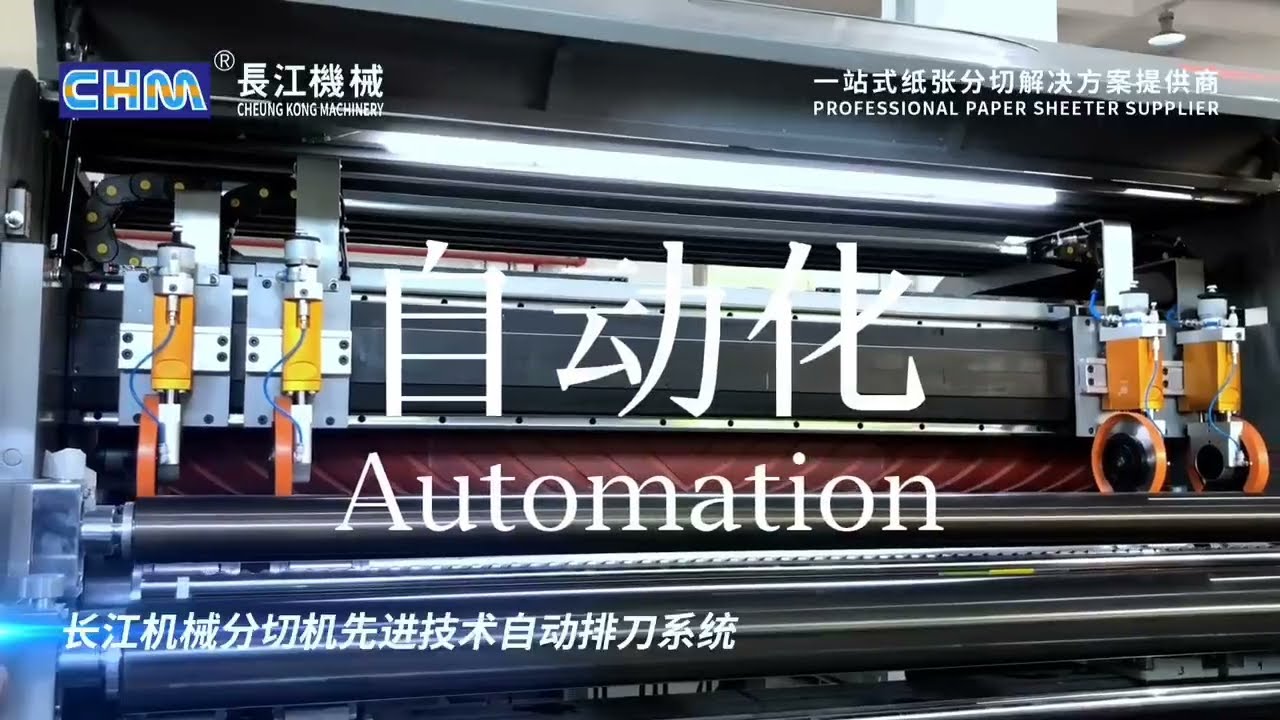

Скачать или смотреть CHM Dual Rotary sheeter with automatic position slitting system

For more information please visit:https://www.chm-machinery.com/paper-sheete...
Mr. David' WhatsApp（Wechat）: 008613030997689（https://api.whatsapp.com/send?phone=861303...
Email:[email protected]

Slitting System:
Standard configuration: 3 sets (2 pockets)
Optional configuration: 4 sets (3 pockets), 5 sets (4 pockets)...
Pneumatic slitting knife, double slide rail cylinder locking structure, using the cylinder to lock the pneumatic slitting knife, it is convenient and quick to adjust the slitting knife,More suit for need often change the cutting width.

Automatic position slitting system(Optional), To change the cutting paper width, just enter the width to be cut on the display Improve the efficiency of customers change orders, More suit for need often change the cutting width. more easy to operation.

Reject gate system:
Include, when the machine is turned on and tested, Unqualified paper can be ejected by Button

Advantage:
Dual-Rotary Sheeter,High Precision Twin Rotary synchronize-fly Paper Sheeter, It adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies, the cut edge is clean and neat, with high cutting accuracy!
More suit for Thick paper like board paper, RAT paper, craft paper and packing paper or board etc.
After the paper is cut, No Paper wool, No Spot, No Indentation, It can be directly onto the printing press. More and more popular by the printing house nowadays.
Reduce paper trimming loss, Reduce one trimming process by GUILLOTINE, Improve work efficiency, Improve enterprise efficiency!

De-curl unit:
Use dual web guide and dual de-curl structure, When cutting 2 rolls paper at the same time, It can meet the requirements of each roll paper guide and de-curl alone, Improve cutting precision.

MAIN SPECIFICATIONS:
Reference weight of cutting paper: 100-1000GSM
Cutting accurancy: 0.5mm tolerance allowed
Max. Cutting speed: 300sheets/min
Max. Cutting meter speed: 300m/min
Cutting lenght range: 450-1650mm
Max. Diameter of reel: 1800mm
Paper stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700mm/1900mm
Weight:15000kg/17000kg/18400kg
.............................................................................
Dual-Rotary Sheeter, Precision High Speed Sheeter, paper roll to sheets cutter, A4 cut size sheeting and packaging production.
