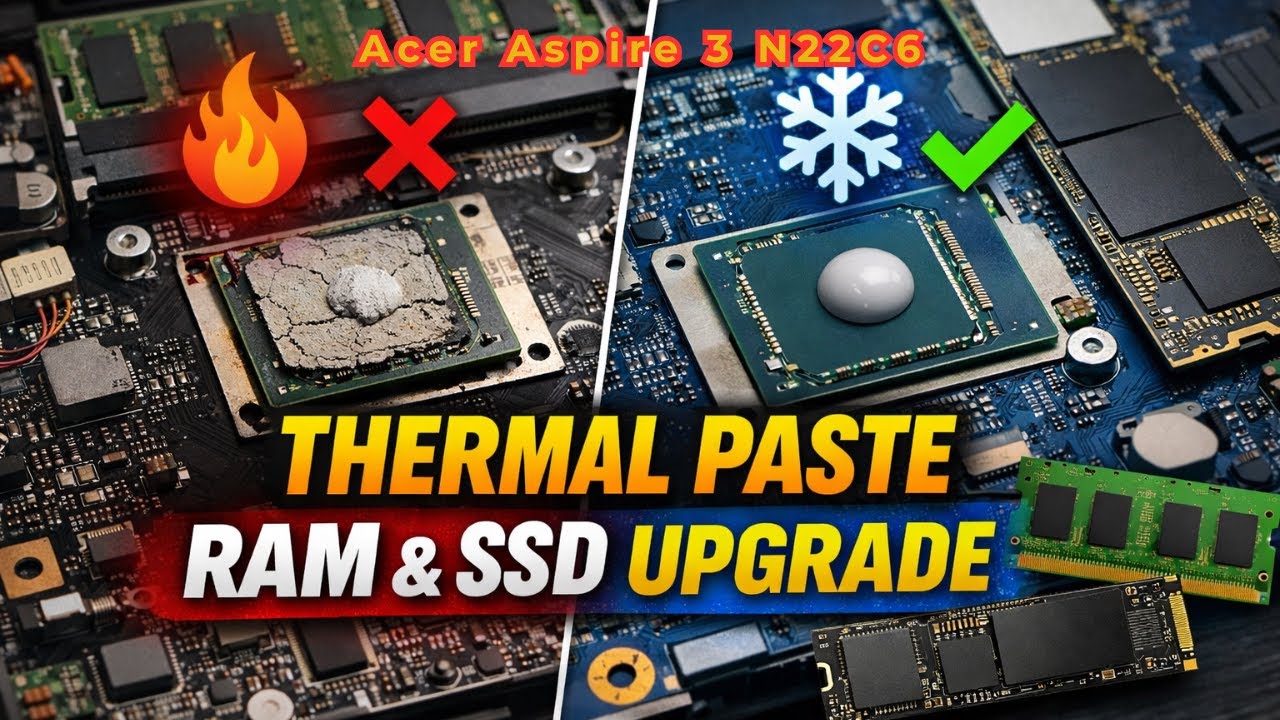

Acer Aspire 3 N22C6 – Motherboard Assembly, Thermal Paste Replacement & Upgrade ‪@MultiSolution1‬

Here’s a step-by-step guide for Acer Aspire 3 N22C6 motherboard assembly and thermal paste replacement — perfect for laptop repair technicians.
________________________________________
🛠️ Tools You’ll Need
• Phillips screwdrivers (PH0, PH1)
• Plastic pry tools/spudger
• Tweezers
• Isopropyl alcohol (90%+)
• Thermal paste (e.g., Arctic MX-4 / similar)
• Anti-static wrist strap (recommended)
________________________________________
📍 Part 1 — Disassembling the Laptop
1. Power Down & Remove Battery
1. Power off completely.
2. Remove any attached cables.
3. If model has a removable bottom battery, detach it.
________________________________________
2. Remove Bottom Cover
1. Unscrew all visible screws on the bottom cover.
2. Use plastic pry tools to gently lift the base cover.
3. Keep screws organized by location.
________________________________________
3. Disconnect Battery Cable (Internal)
1. Locate the internal battery connector.
2. Use tweezers/spudger and carefully unplug it — do not pull wires.
________________________________________
🧠 Part 2 — Motherboard Removal
1. Unplug Peripherals
Disconnect the following carefully:
• SSD/HDD ribbon cables
• Keyboard & touchpad ribbons
• Wi-Fi module cable
• Display cable (LCD/video)
• Speakers, USB board, status LEDs
💡 Tip: Use a gentle pull and lift the locking tabs on ribbon connectors.
________________________________________
2. Remove Cooling Assembly
1. Unscrew the fan & heatsink assembly (usually marked with arrows).
2. Carefully lift the entire assembly out.
________________________________________
🔥 Part 3 — Thermal Paste Replacement
1. Clean Old Thermal Paste
1. Use isopropyl alcohol + cotton swabs.
2. Remove old paste from:
o CPU die
o GPU die (if present)
o Heatsink contact plate
➡️ Surface should be shiny and residue-free.
________________________________________
2. Apply New Thermal Paste
• Place a pea-sized drop in the center of the CPU.
• If GPU present, do same there.
• No need to spread manually — heatsink pressure spreads it evenly.
________________________________________
3. Reinstall Cooling Assembly
1. Align heat pipe assembly onto CPU/GPU.
2. Tighten screws in a diagonal pattern — this ensures even pressure.
3. Reconnect fan cable to motherboard.
________________________________________
🧩 Part 4 — Motherboard Re-Assembly
1. Seat the motherboard back into the chassis.
2. Reconnect all ribbon cables in reverse order.
3. Reconnect battery (internal connector).
4. Install SSD/HDD.
5. Place bottom cover and screw all screws back.
________________________________________
✅ Final Checks Before Power On
✔ Battery reattached
✔ Screws properly tightened
✔ Cables firmly connected
✔ No loose screws inside
________________________________________
💡 Pro Tips
✔ Keep screw map/layout visible with labels
✔ Avoid touching gold connectors
✔ Use anti-static wristband
✔ If display doesn’t power on after reassembly, reseat display ribbon cable
________________________________________
Common Issues After Reassembly
Problem Check
No power Battery cable, DC jack connection
Fan not spinning Fan cable reseat
Overheating Thermal paste application
No display Display ribbon or backlight inverter
________________________________________
🛒 Recommended Thermal Paste (Optional)
• Arctic MX-4
• Noctua NT-H1
• Thermal Grizzly Kryonaut
________________________________________
