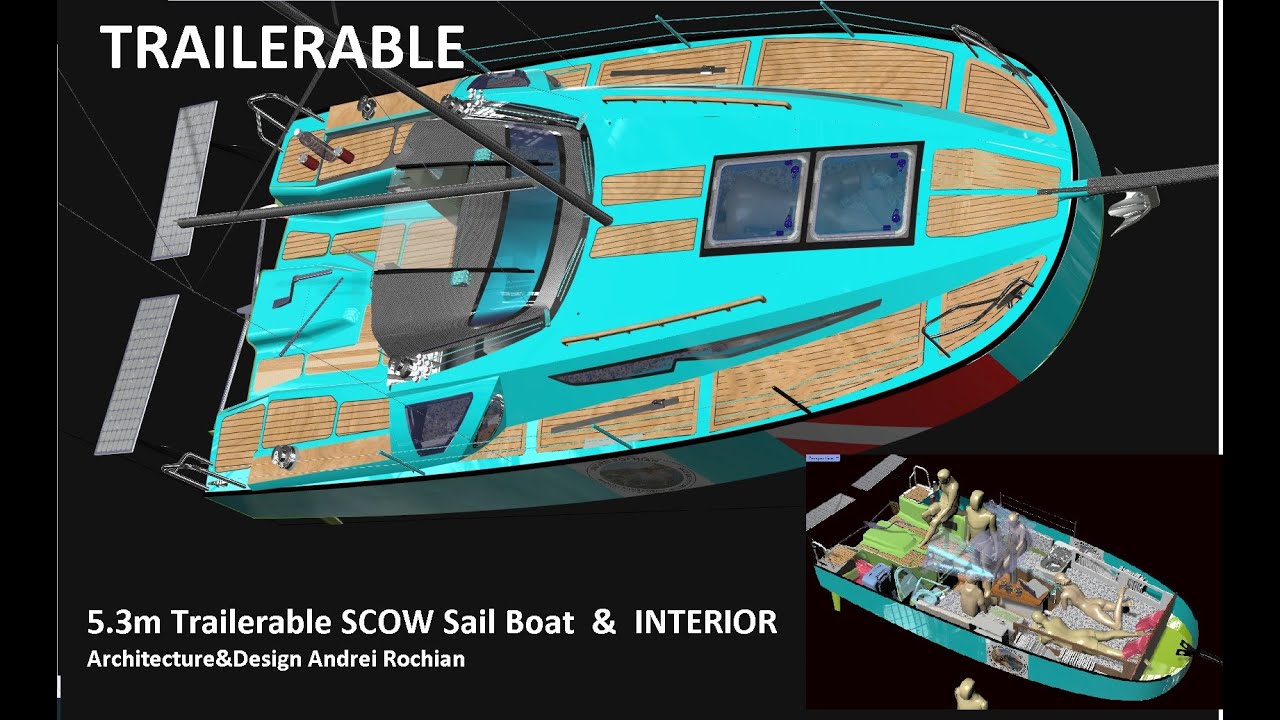

Скачать или смотреть 5.3m Trailerable SCOW Sail Boat & INTERIOR Architecture&Design Andrei Rochian

5.3m Trailerable SCOW Sail Boat Chine Hull Plywood Epoxy Architecture&Design Andrei Rochian L=5.3m B=2.5m
HIGH SPEED SAIL BOAT capable to reach speeds of 17 Knots
for Low Cost Marine Plywood Epoxy construction
The inconvenient of the modern Minitransat style scow sail yachts is their transportability as they are 3 m wide cannot be easily loaded on a trailer
I designed this scow sail yacht to be easily Trailerable
and also builadble in CNC cut plywood empoxy and fiberglass at low costs at the amateur level of skills and with a multi chine hull
LOD =5.3m
B=2.5m
Draft without keel= 214mm
Fradt with Keel=1582
Volume Displacement = 1.00705e+09
Center of Buoyancy = 2490.75, -0.00188965, 138.357
Wetted Surface Area = 8.76899e+06
Waterline Length = 4645.06
Maximum Waterline Beam = 2161.93
Water Plane Area = 8.42584e+06
Center of Floatation = 2297.94, -0.00188965,214
Hull Area= 20m2

The hull shell (sides ; bottom and transom ) is built from 8 flat panel components that are cut with the CNC from marine plywood
The plywood parts are assembled and covered in fiberglass epoxy
The deck and cabin is in a similar way built from flat stitch and glue assembling of marine plywood panel parts cut with the CNC .
With the emergence of Today Robot CNC Routers like GOLIATH ROBOT CNC ROUTER the scow sail yacht design with Multi Chine Hull may be built at Low Cost in Marine Plywood Epoxy construction

Alternatively the Scow with Multi Chine Hull Can be built in Aluminium Construction or in Carbon Sandwich
