STATUS:
The printer is in excellent condition

SPECIFICATIONS:
Machine Alignment Capability: 2.0 Cmk @ +/- 20µm, (±6 Sigma)
Process Alignment Capability: 2.0 Cpk @ +/- 25µm, (±6 Sigma)
Cycle Core Time: 8 secs + process
Max. Board Size (Print Area): 510mm (X) x 508.5mm (Y)
Print Speed: 2 mm to 300 mm / sec
Substrate Handling Features: Soft rail lift/land; Board clamp regulator
Substrate Fixture / Warpage: Over the top clamps
Substrate Warpage: Up to 7mm including substrate thickness
Squeegee Pressure Mechanism: Software controlled, motorised with closed loop feedback
Stencil Loading: Semi-Auto-Load incorporating squeegee drip tray
Stencil Alignment: Motorized via actuators X, Y and Theta
Fiducial Recognition: Automatic Fiducial teach and finding incorporating 0,1 mm Fiducial capture
Operating System: Windows 7 Standard embedded

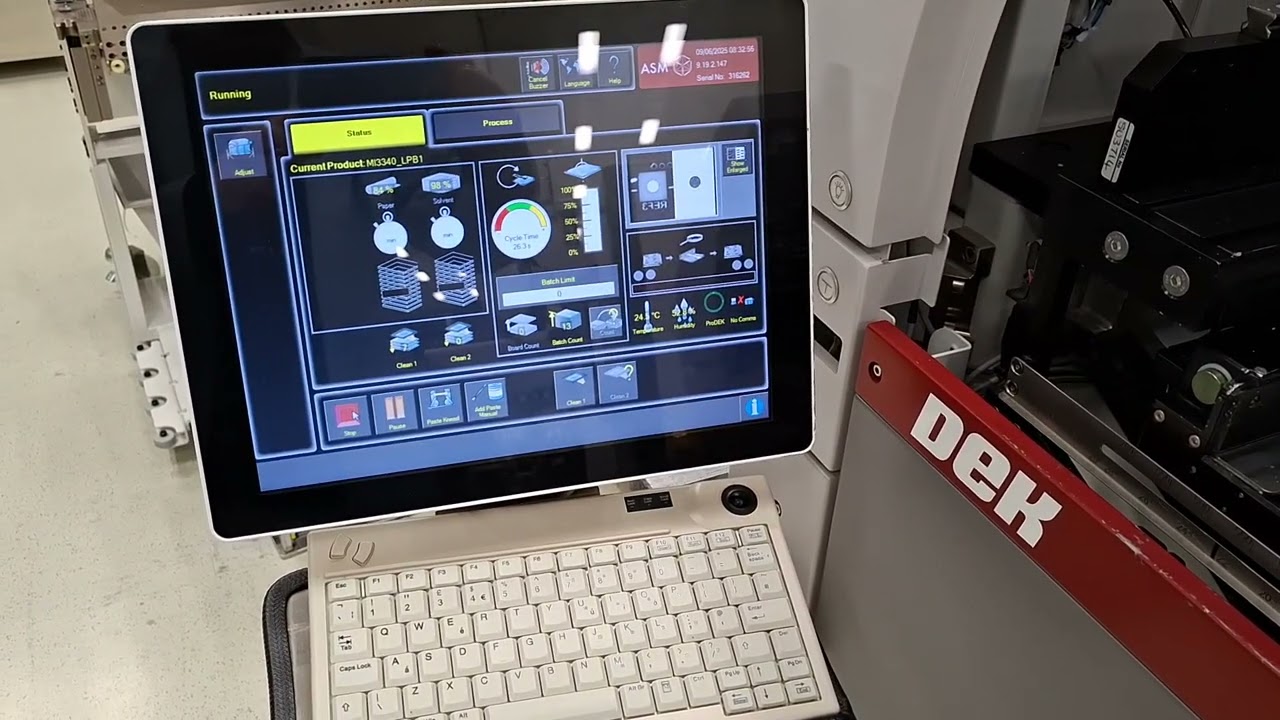

Operator Interface: Colour TFT touch screen display, keyboard and trackball…
Connectivity: RJ-45LAN (networking) and USB2/3 interface available
Printer Construction: One piece optimised welded frame
ISCAN™ Machine control: Motion control using CAN BUS network
ProDEK, Closed loop system with SAKI SPI
DEK Squeegee: 350 mm and 250mm

BASE MACHINE SPECIFICATION
Camera: HawkEye® 750 digital camera, LED lighting. FOV 11.3mm x 8.7mm. Inspection window 26mm2.
Camera Positioning: Rotary motors and encoders, with 4 micron resolution
Camera Lighting: Software controlled programmable LED lighting
Machine Interface: Upline and downline FMI included
Tri Colour Beacon: Programmable with audible alarm
Under Stencil Cleaning: Interchangeable Under Stencil (IUSC) cleaner….
Vacuum Assist for Under Stencil Cleaning: On board vacuum unit 25 litres/sec airflow

STANDARD OPTIONS
Miniatur Fiducial capture
Fiducial under 0,5mm (down to 0,1mm)
Interior Light, Temperature & humidity sensor, Instinctive Software V9
