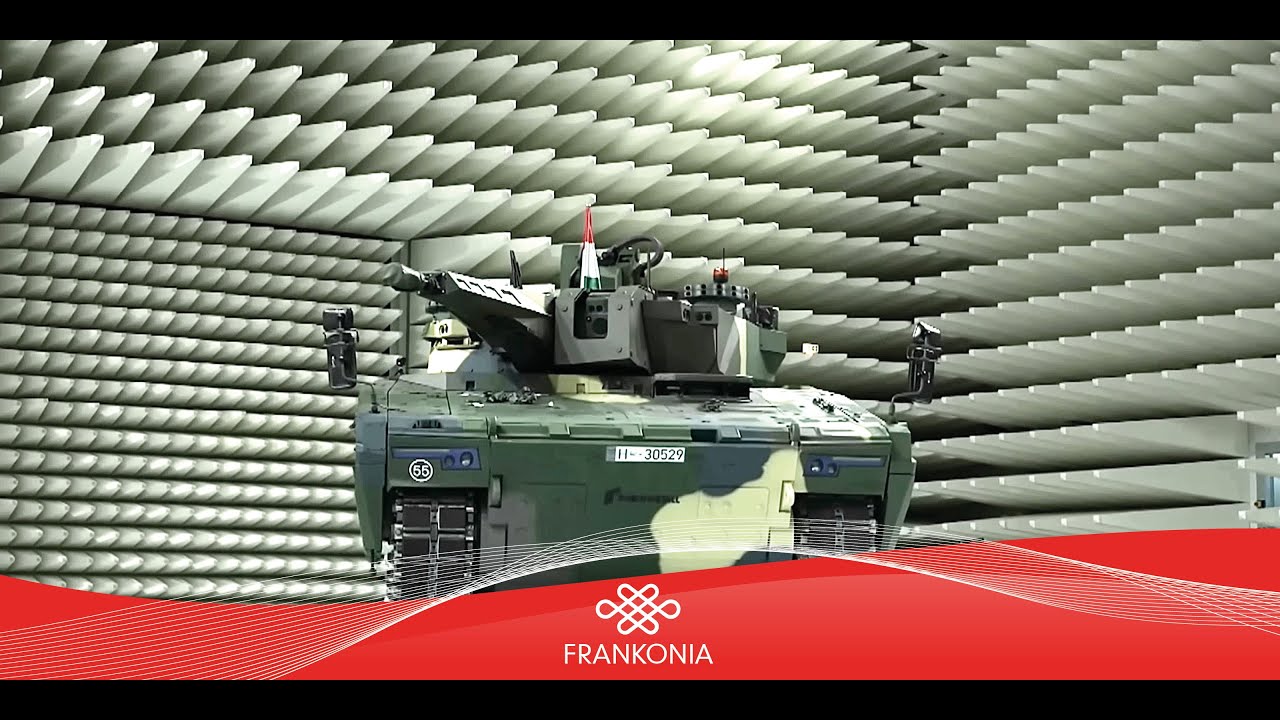

The MIL-STD Chamber is Frankonia’s large chamber solution at 1,0 m measuring distance according to MIL-STD 461 adapted for radiated emission and immunity tests for large EUT’s or vehicles using our short pyramid P600 absorbers (80 MHz -40 GHz).

Trend is going to low frequency performances. So, the MIL-STD Advanced Chambers are Frankonia’s chamber solution according to MIL-STD 461 adapted for radiated emission and immunity tests for large military EUT’s or vehicles using our P2400 long pyramid absorbers (30 MHz -40 GHz).
The chamber is then compliant with commercial test requirements according to CISPR 16-1-4, ANSI C63.4 and IEC/EN 61000-4-3. Furthermore, it is adapted for radiated emission and immunity tests on vehicles and components according to CISPR 12, CISPR 25 and ISO 11451, ISO 11452.
