✨ This project was built by my teammate Thejas S. and me, and we proudly presented it at Open Day 2025 (Electronics Dept, JSSSTU).
Check out the showcase post here 👉   / inesh-candade_openday2025-iot-embeddedsyst...

Welcome to Candade LabWorks
This channel showcases hands-on electronics and IoT projects — from basic circuits to embedded systems and beyond.

🔧 About This Project

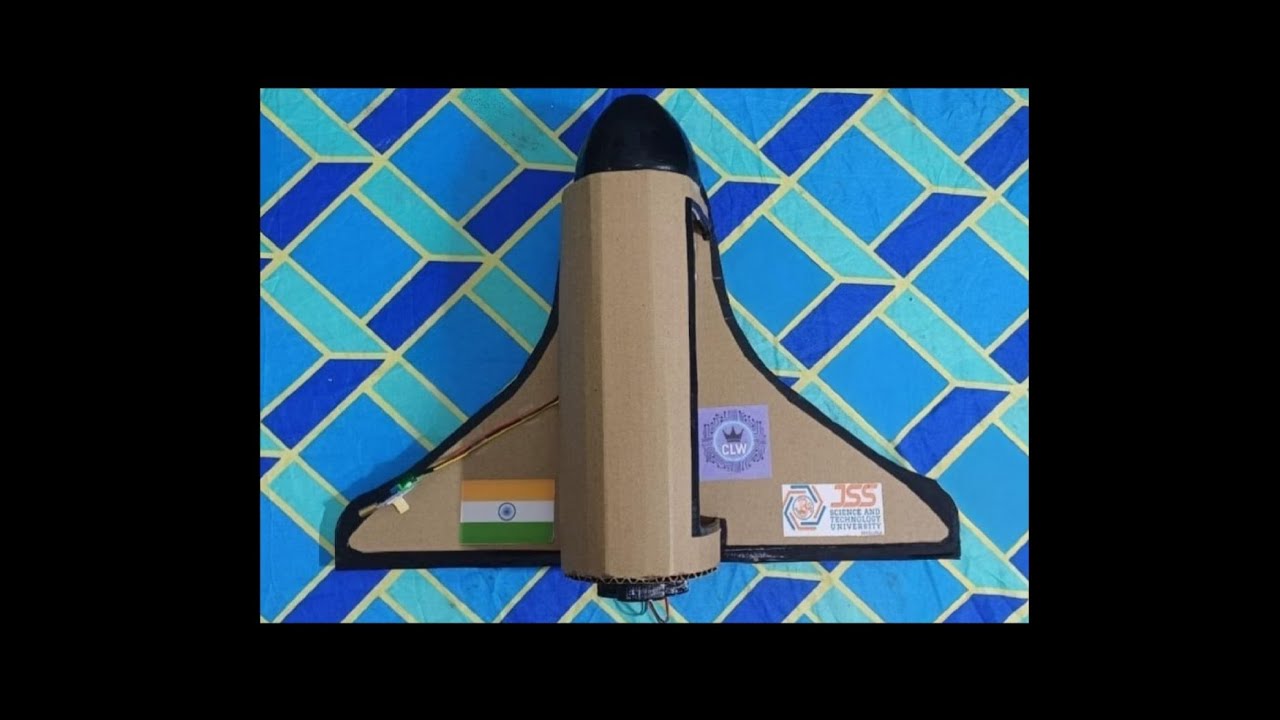

SEAM Skyborne Environmental Alert Mechanism is a compact multi sensor safety system that detects tilt, distance, temperature, and humidity hazards - all visualized on an OLED display with multi-level LED and buzzer alerts. Inspired by spacecraft hazard monitoring, this project shows how multiple sensor inputs can be fused into a real time alert system.

🧰 Components Used
Arduino Uno
DHT22 Temperature and Humidity Sensor
HC SR04 Ultrasonic Distance Sensor
Tilt Switch Sensor
128x64 OLED Display SSD1306 driver
3 LEDs Red, Green, Blue
Active Buzzer
Breadboard and Jumper Wires

⚙️ Pin Connections
DHT22 - D2
Ultrasonic - Trigger D3, Echo D4
Tilt Switch - D7
Green LED - D9
Blue LED - D10
Red LED - D11
Buzzer - D12
OLED - I2C SDA, SCL

🎛️ Control Logic
⚠️ Tilt detected - Red LED ON + buzzer constant ON
📏 Distance less than 10 cm - Blue LED ON + buzzer beep 200 ms
🌡️ Temperature above 40°C or abnormal humidity - DANGER flagged
✅ Otherwise - Green LED ON (SAFE mode)
OLED updates every 1.5 seconds with live readings and status

💡 Technical Highlights
Multi sensor fusion combining digital and analog inputs
Prioritized alert handling - tilt then distance then temperature and humidity
Real time OLED visualization of sensor values and status
Serial monitor feedback for debugging
Modular structure for scaling alerts and upgrades

📌 What You'll Learn
Integrating multiple sensors into a single embedded system
Designing conditional alert logic with priority levels
Displaying real time data on an OLED screen
Prototyping environmental monitoring and safety systems

🧠 What’s Next
Add EEPROM to log alert history
Smarter OLED dashboards with graphs and logs
Wireless alerts using Wi-Fi or Bluetooth
Adjustable thresholds for custom applications
AI and ML integration for anomaly detection
