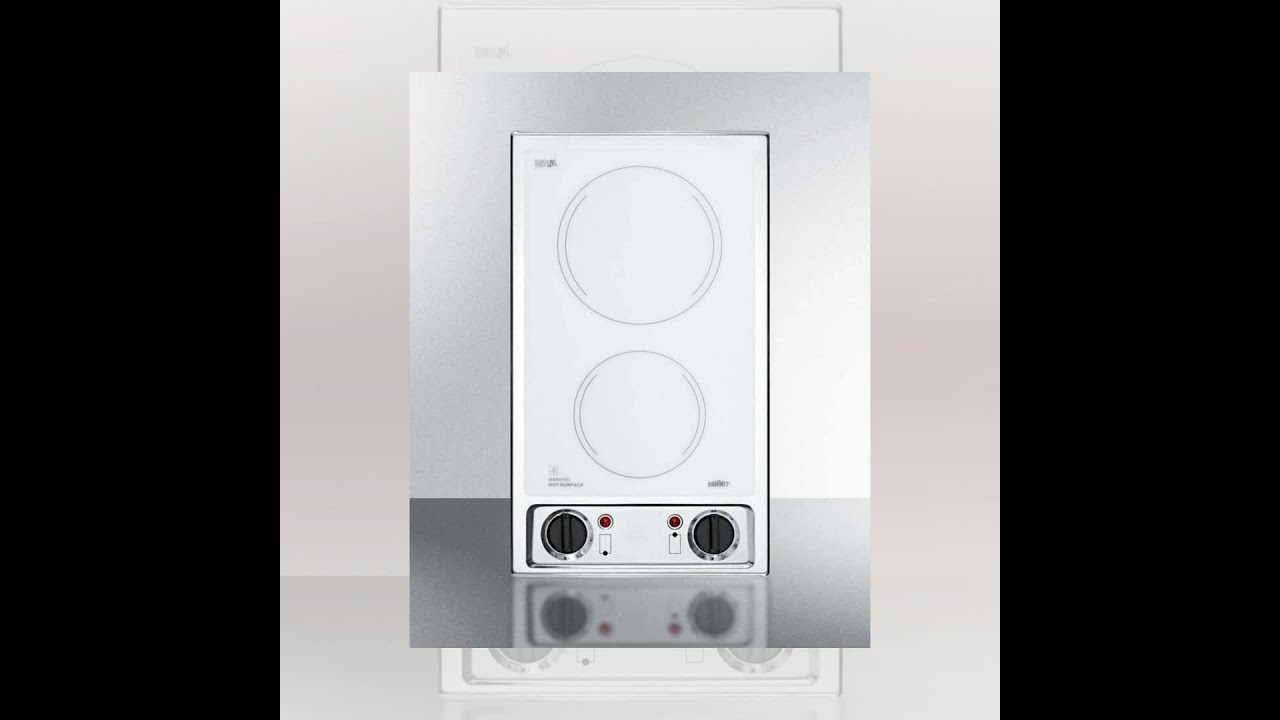

Скачать или смотреть Summit 12" Wide 115V 2-Burner Radiant Cooktop ADA Compliant White

Wow picks! Priced at $539.20 Choose your wows. 🐕
FEATURES

EuroKera glass surface
Easier cleanup with a smooth ceramic top in a white finish

115V operation
Designed to work with standard 115V/60Hz electrical supplies
with proper grounding

Cord included
Ships with 3-pronged cord preinstalled

Two heating elements
One 900W burner and one 500W burner in smooth ceramic glass

Push-to-turn controls
Prevents accidents by requiring a small amount of force to turn
on cooktop heat

Indicator lights
Both burners are equipped with indicator lights to display when
the cooktop is in use

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier
accessibility

Designed for built-in installation
Cutout dimensions: 10 1/8" W x 18 5/8" D

DESCRIPTION

Summit's collection of radiant cooktops offers quality choices
for a variety of small kitchen applications. The CR2B120WH is a
120V 2-burner cooktop for built-in installation in cutouts sized
10 1/8" W x 18 5/8" D. The surface is made from EuroKera ceramic
glass in a classic white finish, offering easier cleanup and
faster cooking than traditional coils. The base and trim are
finished in brushed stainless steel. The CR2B120WH includes a
rear 7" 900W burner for larger cooking vessels, and a smaller
5.75" 500W front burner ideal for heating smaller pans.
Push-to-turn knobs in a matte black finish help to prevent
accidents, with indicator lights for each burner for added
safety. The controls are located towards the front, preventing
users from having to reach over hot burners. The CR2B120WH
includes a pre-installed 3-pronged cord for a faster setup. With
a clean design and great price, Summit's electric cooktops offer
top value for homes, hotels, yachts, and other settings with
unique kitchen needs. Browse our website for additional cooktop
choices, including 220V radiant cooktops in white and black, gas
cooktops, and induction burners.

SPECIFICATIONS

Overview

Height of Cabinet
2.5" (6 cm)

Width
11.25" (29 cm)

Depth
20.0" (51 cm)

Cabinet
White

US Electrical Safety
ETL

Canadian Electrical Safety
ETL-C

Amps
20.0

Voltage/Frequency
115 V AC/60 Hz

Weight
20.0 lbs. (9 kg)

Shipping Weight
25.0 lbs. (11 kg)

Parts & Labor Warranty
1 Year

Electric Cooktop

Heating Type
Radiant

Surface
Glass

Element Type
Glasstop

Number of Elements
2

controls
Dial

Countertop Cutout Height
2.5" (6 cm)

Countertop Cutout Width
10.13" (26 cm)

Countertop Cutout Depth
18.63" (47 cm)

Element #1 Size
5.75" (15 cm)

Element #1 Wattage
500.0

Element #2 Size
7.0" (18 cm)

Element #2 Wattage
900.0

DOWNLOADS

Download

BROCHURE w/ DRAWINGS
CR2B120WH.pdf

Download

CR2B120_ASSY.pdf

Download

CR2B120_ASSY2.pdf

Download

USE & CARE
CR2B120_CR2B120WH_Manual.pdf

Download

OTHER
HowToCleanYourGlassCooktop.pdf

Download

OTHER
CR2B120_ASSY.pdf

Due to our commitment to continuous product improvement, all
specifications are subject to change without notice

California residents:

Warning WARNING: This product can expose you to chemicals
including nickel (metallic), which is known to the State of
California to cause cancer. For more information, go to
www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
