Скачать или смотреть Jones Hand Load Vertical Tuck Cartoner Demonstration

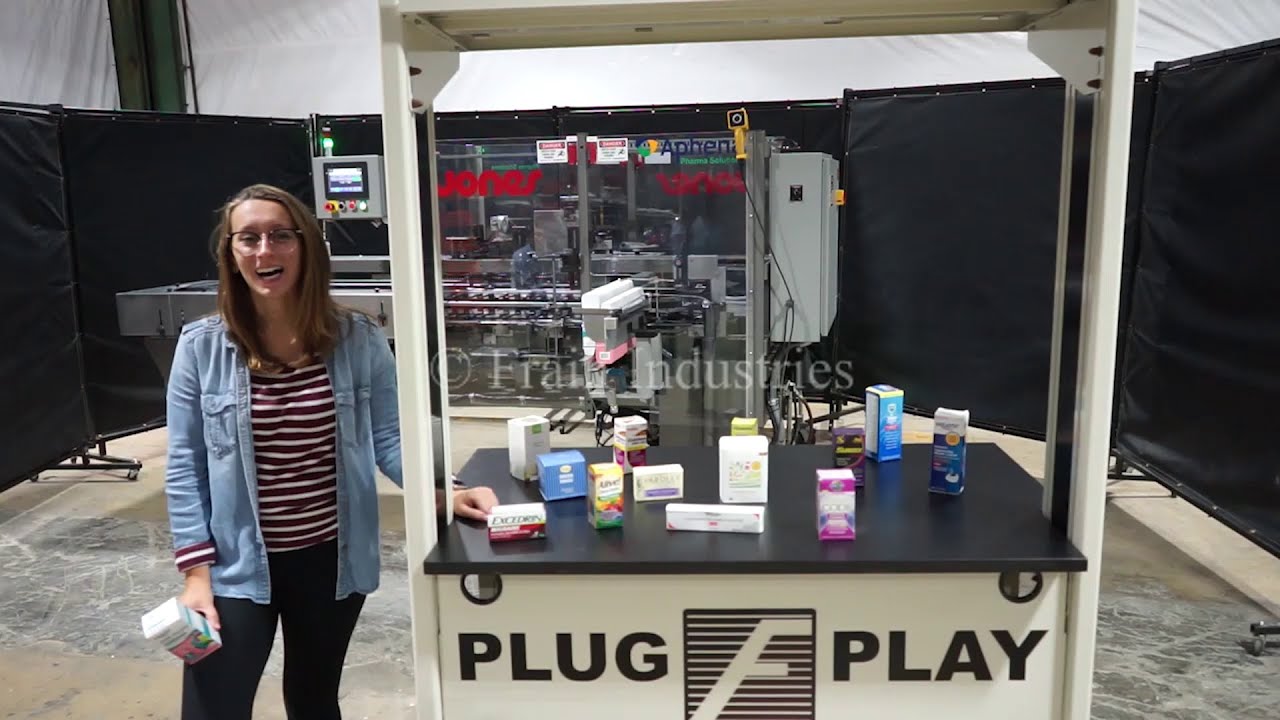

Here we're running one of our Jones IMV5 Vertical Tuck Cartoners integrated with optional combination metal detector and checkweigher.



To view additional machinery on our website click here: http://www.fraingroup.com.
Jones, Model IMV5, Semi-automatic, intermittent motion, vertical tuck cartoner rated up to 45 cartons per minute - depending on materials, application and operator dexterity. Carton size range: 1" to 4-1/4" in Length; 3/4" to 4-1/4" in Width; 2-1/2" to 8" in Depth. Equipped with (2) chains fixed set on 5" centers, with 1-1/2" lugs, 24" empty carton magazine, with a reciprocating pick-n-place, 30" long operator hand load area each side, major and minor flap closers and tuckers, right angle carton discharge and interlocked guarding. Control panel has start, stop, e-stop controls and status light bar. Mounted on heavy duty frame with casters.

OAD: 124" L x 57" W x 72" H
