Stainless Steel Aluminum Fin Tube
Composite Fin Tube Rolled Fin Tube Aluminum Extruded Type
complete Specifications, customization acceptable
Used in heating, ventilation, and air conditioning (HVAC) systems.

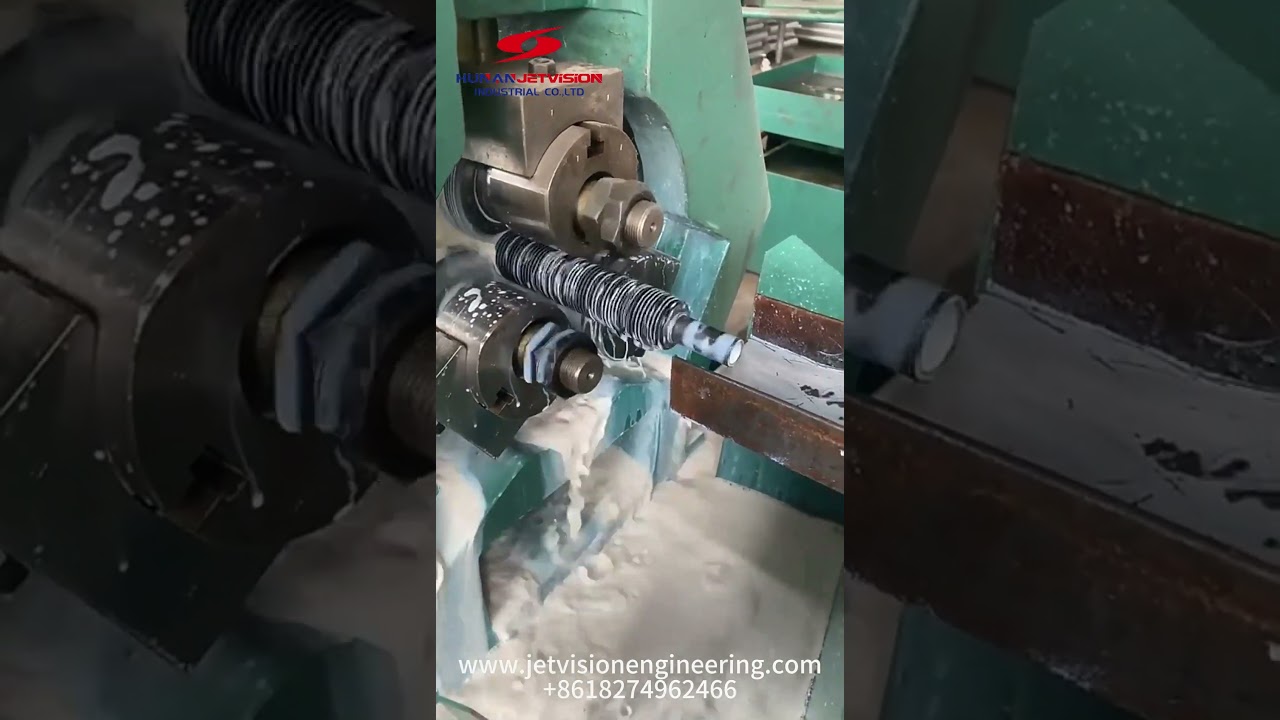

Bimetal Extruded Fin tube, use base tube insert Aluminium tube, directly extruded the Aluminium into wanted fin specification. Fin and tube surface are tight touch thus improving the heat transfer efficiency. This also give considerable corrosion protection to the base tube.

Base Tube Material:
Stainless steel, carbon steel, copper alloy,alloy steel Etc.
ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321 TP310S TP317, ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTM A192 ASTM B111 C70600 C44300 C68700 C71500...

Fin Material:
Aluminiumcopper, Stainless steel Bimetal Extruded fins tube, carbon steel Extruded fins tube copper Extruded Type fins tube Cu-Ni Extruded fins tube,Aluminium brass Extruded fins tube Copper-nickel Bi-metal Extruded fins tube Duplex Extruded Type fins tube super duplex Extruded Type fins tube Air cooler fins tube, Air preheater fins tube.

Extruded fins tube Serrated fin tubes L Type fins tube G Type fins tube LL Type fins tube H Type fins tube KL Type fins tube HFW fin tube laser welded fin tube.

Base pipe O.D:15.88-165mm
Fin height:6-50mm
Fin thickness:0.3-0.5mm
Fin pitch: as customer's request.
End:Plain Ends, Beveled Ends
No fin area on both side:As Customer's request.

Application:
Air Cooler,Air preheater,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration,Steam to Air Heat Exchanger etc.
