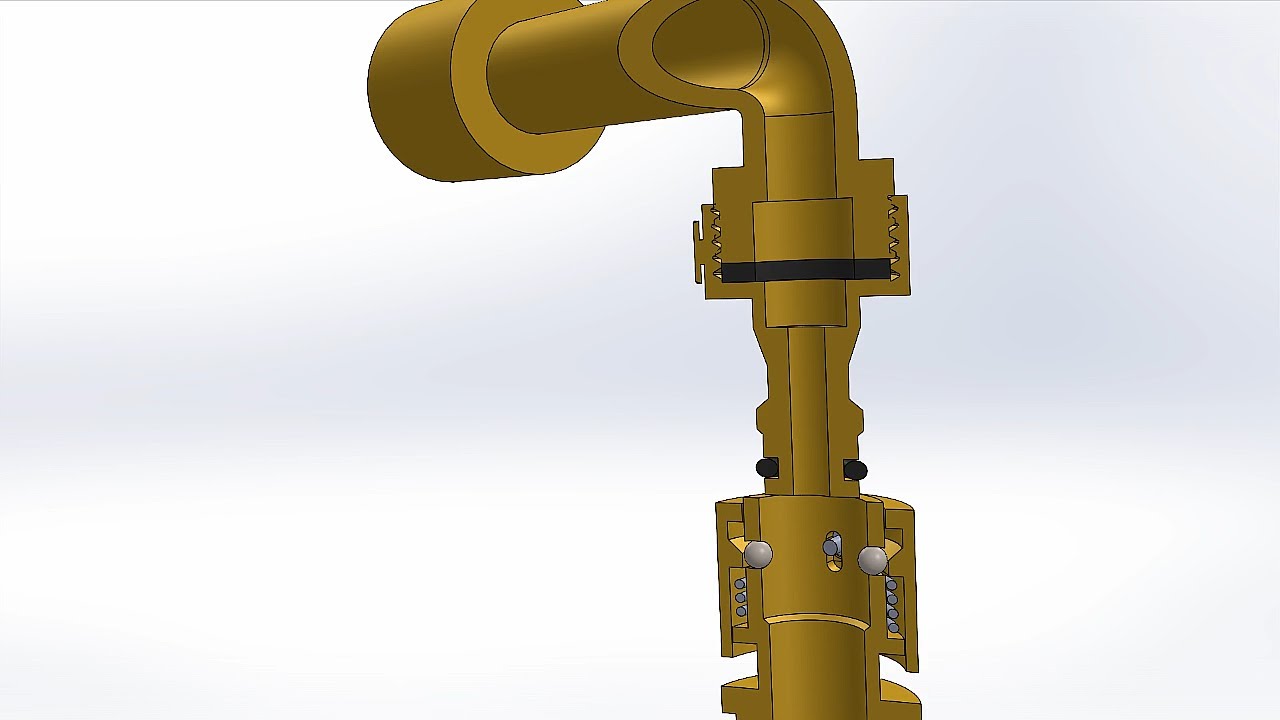

Garden hose Quick Connect devices make it much easier to hook and unhook a hose from the spigot in the back yard. Who wants to screw and unscrew the hose from the spigot every time? I know I don’t. This video will show you how the hose quick connect device works and how it makes your life just a little bit easier.

Video Credits Taran Packer (  / taran-packer-1ba01137  ) - Quick Connect Model, script, narration, music, SOLIDWORKS Nonlinear Simulation, SOLIDWORKS Flow Simulation.

SOFTWARE USED
SOLIDWORKS was exclusively used to make this video. The Quick Connect was modeled from scratch in SOLIDWORKS. The motion animations, simulations, including Flow Simulations were also all accomplished using
SOLIDWORKS Simulation add-ins.
SOLIDWORKS 3D CAD: https://www.solidworks.com/product/so...
SOLIDWORKS Simulation: https://www.solidworks.com/product/so...
SOLIDWORKS Flow Simulation: https://www.solidworks.com/product/so…

TIMESTAMPS
00:00 - Intro
00:25 – Standard Garden Hose Thread
00:44 - Quick Connect Collar
1:00 - Male Quick Connect Plug
1:27 - How the Locking Balls Work
1:48 - SOLIDWORKS Flow Simulation
1:57 - How to Unhook the hose
2:15 - How the Sliding Outer Sleeve is assembled with the Quick Connect Collar
2:56 - Conclusion
