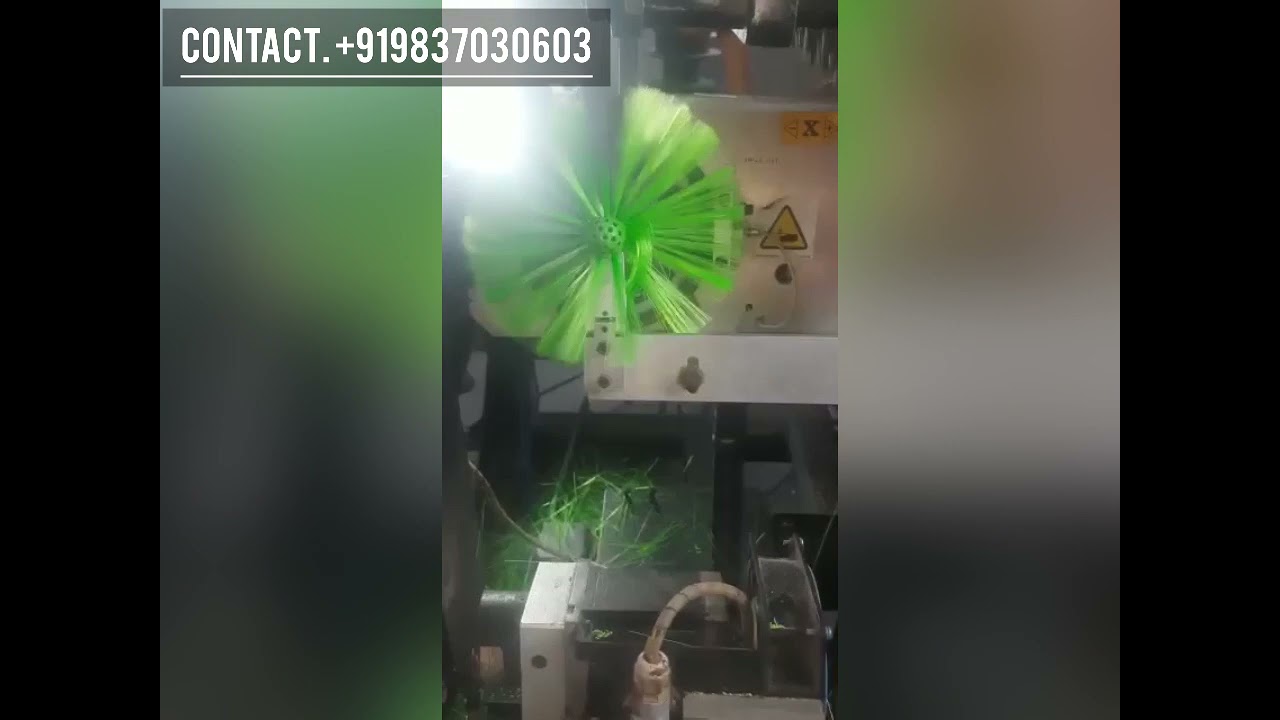

Скачать или смотреть ROUND BRUSH CEILING BROOM TUFTING MACHINE | SHARMA & SONS | AGRA

Standard Working Area of Working Table X-axis x Y-axis x Z-axis x H-axis = 400mm x 100mm x 100mm x 360°(or 30°) Material of Brush Bases Plastic, wood Material of Brush Filaments PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc. Length of Filaments (Outside Holes) 10mm - 180mm Diameter of Brush Filaments 0.08mm - 1.2mm Diameter of Holes 3mm - 5mm Colors of Filaments Either single color or two colors Maximum Tufting Speed 4 holes per second Specifications of Machine Body 1.20m(Length) x 1m(Width) x 2.05m(Height) Motor (Power System) Servo motors Data Input for Tufting Positions Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.
Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position. Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other languages required by customers, operating in dialogue-mode, which is quite simple and easy. Speed Adjusting Frequency-conversion stepless-adjustable speed Qty of Programs Saved It saves totally 84 programs for making different brushes. Gross Weight Around 550KGS Programming PLC (Programmable Logic Controller) Power Supply Either 3-phase 380V or 1-phase 220V, 50-60Hz, 800W Replaceable Grippers FMS type. Operator could make other kinds of brushes, as long as he changes grippers. Tufting Method Anchor-type (using flat wires) Packing Packed into wood cases.
Wood case for machine body: 1.50m x 1.52m x 2.08m
Wood case for computer box: 0.80m x 0.80m x 1.56m
