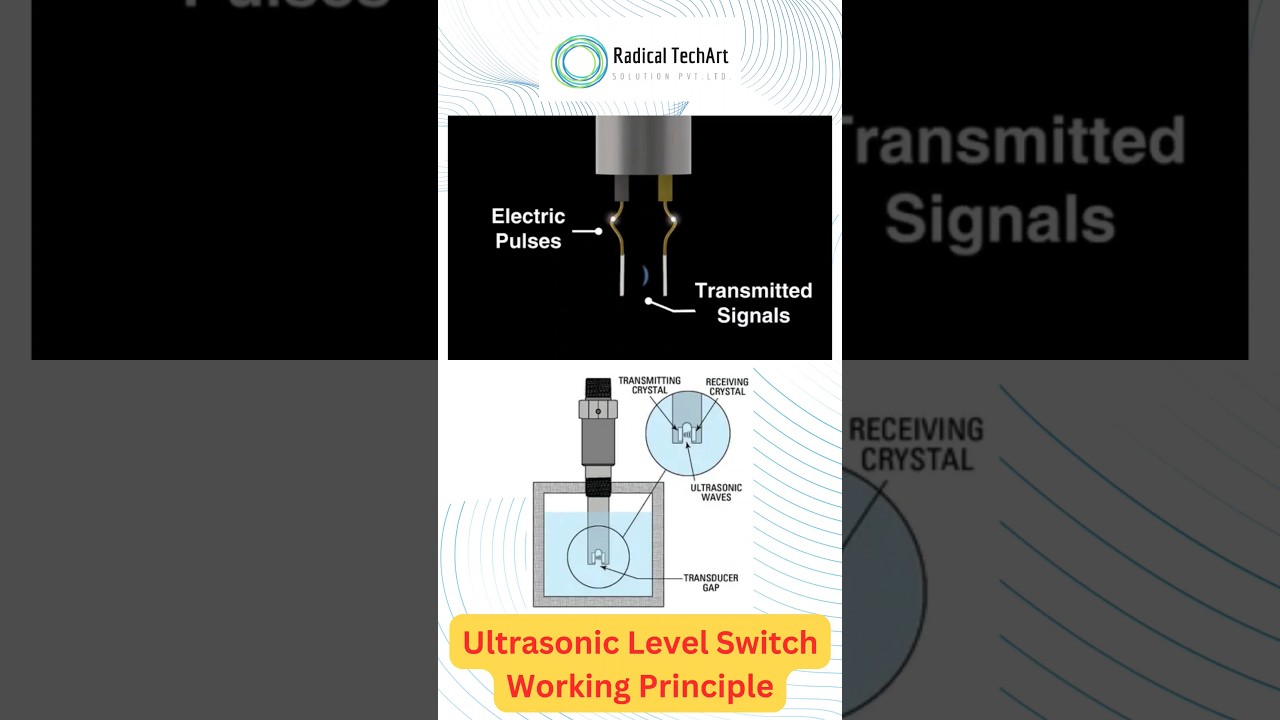

An ultrasonic level switch is a type of level sensor that uses ultrasonic technology to detect the level of liquids or solids in a container or vessel. It works based on the principle of measuring the time it takes for an ultrasonic pulse to travel from the sensor to the material's surface and back. Here's an overview of the working principle and key components of an ultrasonic level switch:

Working Principle:

1. *Transducer:*
The ultrasonic level switch includes a transducer, which is typically mounted on the top of the container or vessel.
The transducer emits ultrasonic pulses, usually in the form of high-frequency sound waves.

2. *Pulse Transmission:*
The ultrasonic pulses travel downward from the transducer towards the surface of the material (liquid or solid) in the container.

3. *Reflection:*
When the ultrasonic pulses encounter the material's surface, they are reflected back towards the transducer.

4. *Time-of-Flight Measurement:*
The ultrasonic level switch measures the time it takes for the pulses to travel from the transducer to the material's surface and back. This measurement is known as the "time-of-flight."

5. *Distance Calculation:*
The distance between the transducer and the material's surface is calculated using the formula:
\[ \text{Distance} = \frac{\text{Speed of Sound} \times \text{Time-of-Flight}}{2} \]
The speed of sound is generally assumed to be constant in the air or the specific medium.

6. *Level Determination:*
The calculated distance is used to determine the level of the material in the container.

7. *Switching Threshold:*
The ultrasonic level switch is typically configured with a switching threshold. When the calculated distance crosses this threshold, the switch triggers an output signal or changes its state, indicating a specific level condition.

Advantages:

*Non-Contact Measurement:* Ultrasonic level switches operate without direct contact with the material, making them suitable for applications involving corrosive or abrasive substances.

*Versatility:* Applicable to both liquid and solid level measurements.

*Wide Range:* Can be used for both short-range and long-range level detection.

*Easy Installation:* Generally, easy to install and set up.

Considerations:

*Environmental Conditions:* Factors such as temperature, humidity, and air density can affect the speed of sound, so environmental conditions should be considered.

*Material Properties:* The composition and surface characteristics of the material being measured can impact the accuracy of the measurement.

*Obstacles and Reflections:* Presence of obstacles or reflective surfaces within the vessel may affect the accuracy of the readings.

Ultrasonic level switches are commonly used in various industries, including water treatment, chemicals, food and beverages, and manufacturing, where reliable and non-contact level detection is required.
