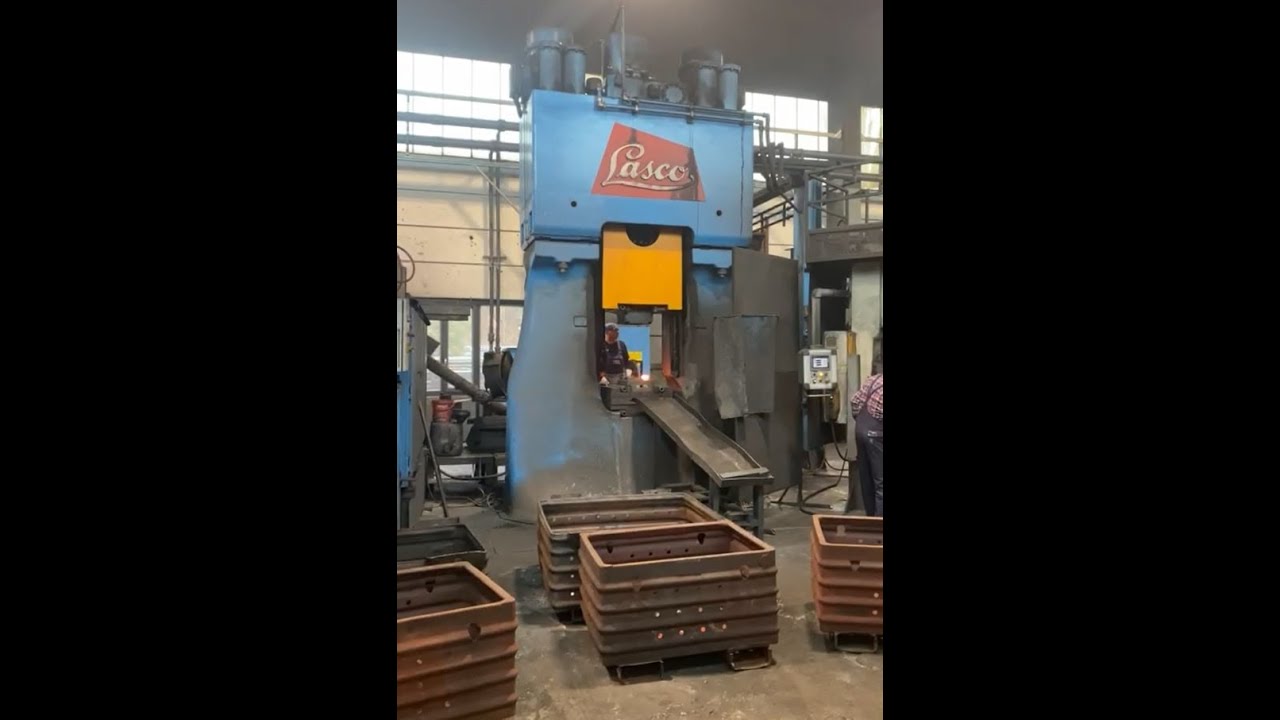

Hydraulic forging hammer Lasco HO-U 630 - 63 kJ - Dabrox.com
https://dabrox.com/hydraulic-forging-...

Specifications - Lasco HO-U 630 (ID:76023)
Type Hydraulic forging hammer
Manufacturer Lasco
Model HO-U 630
Blow energy 63 kJ
Nominal weight of upper die 600 kg
BPM 85
Ram velocity 5 m/s
Ram depth 760 mm
Ram weight 4300 kg
Ram stroke min/max. 520/760 mm
Max. die height without dovetails 460 mm
Min. die height without dovetails 220 mm
Daylight between guides 800 mm
Width of frame base 3000 mm
Depth of frame base 2000 mm
Frame weight 81 mm
Total weight approx. 98.5 ton
Height above fl oor level 5110 mm
Total height approx. 6600 mm

Hydraulic forging hammer for sale: Hydraulic forging hammer Lasco HO-U 630 - 63 kJ (ID:76023). All details of this offer (condition, price, delivery terms) will be sent to you by our manager.
