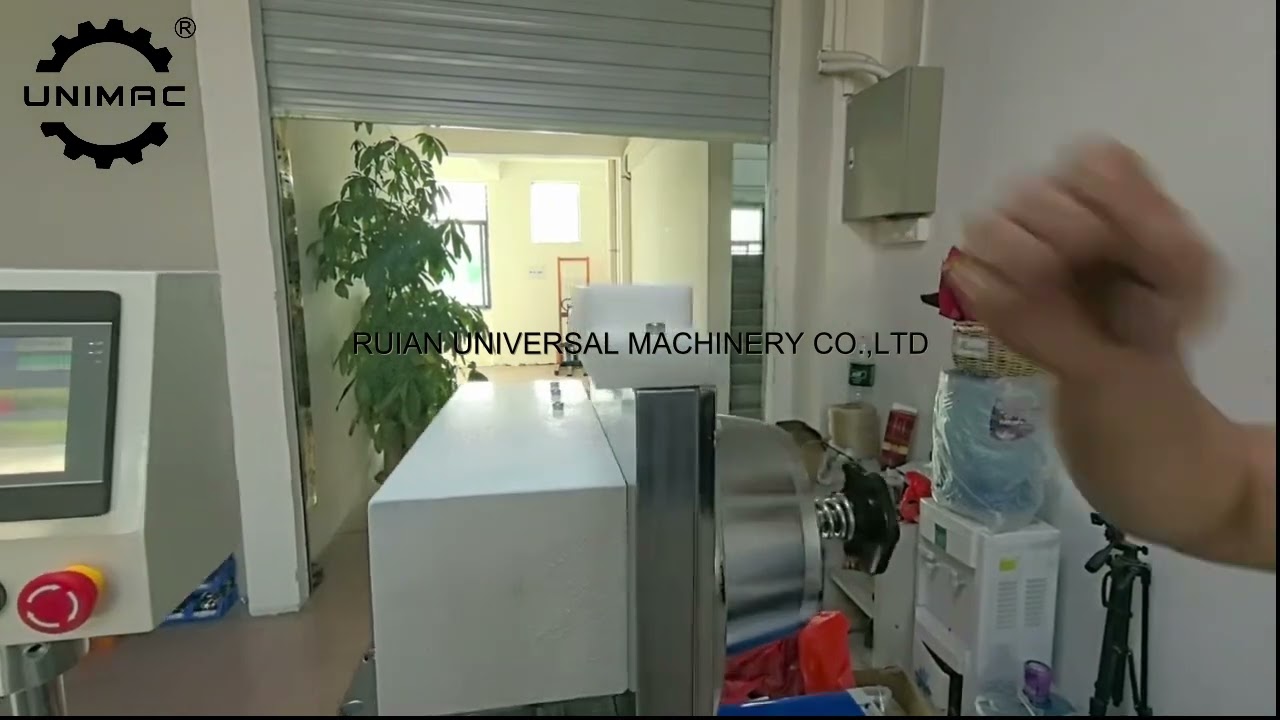

Скачать или смотреть Full automatic hangtag eyeleting machine LM-JY3

Description:
This machine is specially designed for all kinds of tags,just as PVC TAGS, paper tags etc. Tag feeding, hole punching, eyelet installing, output and counting in one pass.  It is easy to do replacement of mould. Safe and reliable operation. It Is the preferred equipment of the the tag manufacturers modern market competition.

Using the frequency converter ,touch screen, PLC and sensor electronic system.
 The main technical parameters
Model: LM-JY3
Speed: 3000-3600pcs/ h
Max size of tags: 90mm * 150mm
Min size of tags:  20mm * 50mm
Eyelet inner diameter: 3-5mm ( if more than this size, it can be customized the machine)
Eyelet mould: Can be changed for different eyelet size, the machine self-bring one unit eyelet mould
Machine Size: 1220mm * 770mm * 1560mm
Machine weight: 250KG
Power supply: 220V,50HZ/60HZ
