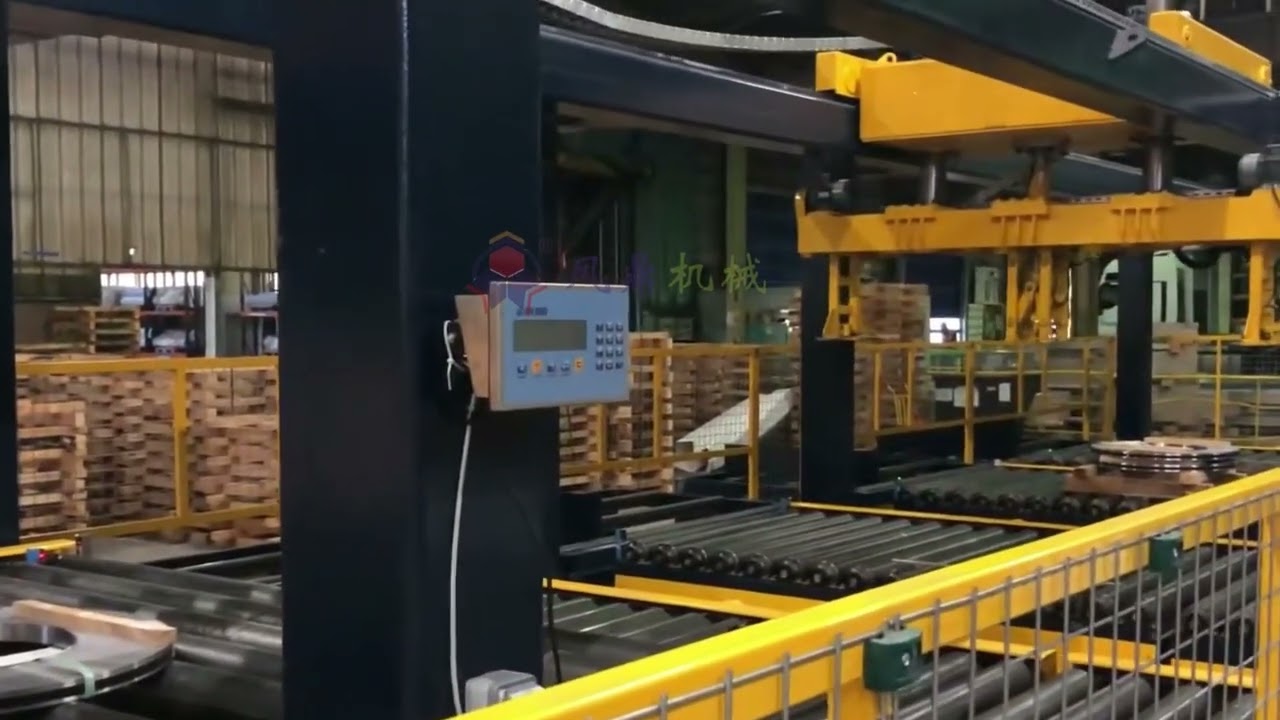

Скачать или смотреть Integrated Steel Strip Coil Banding & Palletizing Line | Core‑Pierce Strapping & Auto Lift‑Stack

www.fhopepack.com
[email protected]
Our Integrated Steel Strip Coil Banding & Palletizing Line delivers a seamless, end‑to‑end workflow—automatically strapping coils through their core, then lifting and stacking them onto pallets without manual intervention.

Key System Components & Features:

Core‑Pierce Strapping Module

Pneumatic piercing head threads heavy‑duty steel band through the coil center (“heart”), then tension‑locks and welds or crimps the band for a secure, deformation‑free bundle.

Dual‑axis positioning ensures precise band placement on coils from Ø300 mm to Ø1 200 mm.

High‑Speed Band Tension & Sealing

Adjustable tension control accommodates strip gauges from 0.5 mm to 3 mm.

Integrated ultrasonic or friction‑weld sealer provides consistent, high‑strength joins with minimal maintenance.

Automated Lifting & Palletizing Unit

Servo‑driven lifter raises strapped coils onto a robotic or gantry palletizer.

Configurable stacking patterns (single‑file, nest, or tiered) optimize pallet stability and space utilization.

Inline Conveyor & Transfer Automation

Modular roller conveyors shuttle coils through each station; optional AGV interface enables coil delivery and pallet removal.

Low‑profile transfer carts align automatically under the coil for smooth handoff.

Central PLC Control & Touchscreen HMI

Store up to 75 process recipes (coil diameter, strap tension, stack pattern) for one‑touch changeovers.

Real‑time dashboards display cycle counts, band usage, and system health; remote IIoT connectivity available for MES/SCADA integration.

Safety & Compliance

Fully enclosed guarding with safety interlocks and light‑curtain protection around moving components.

Emergency‑stop stations at each module and lock‑out/tag‑out points simplify maintenance.

Robust Construction & Serviceability

Heavy‑duty steel frame with vibration‑dampening mounts ensures stable operation at high speeds.

Quick‑release tooling and slide‑out panels enable fast access to wear parts and sensors.

By combining precision core‑through strapping with automated lifting and stacking, this line maximizes throughput, eliminates manual handling, and ensures uniform, pallet‑ready steel strip coil bundles—ideal for mills, service centers, and distributors pursuing fully automated packaging solutions.
