★HUAJIANG GORGE BRIDGE Dynamic Load Testing - World Tallest Bridge

花江峡谷大桥
Huajiang Canyon Bridge

最大承重3360吨！世界第一高桥进行96辆车静载试验
The world's tallest bridge, with a maximum load capacity of 3,360 tons, Days 4 undergoes a static load test with 96 vehicles.

dynamic load testing 04
August 26, 2025, 10:35AM Source: CCTV VLG-ruon


Over the past two days, the Huajiang Gorge Bridge, the world's tallest bridge, has been undergoing load testing, a crucial test before its opening to traffic. Load testing, often called a "full physical examination," is a crucial step in verifying the bridge's structural safety and load-bearing capacity before its opening. The Huajiang Gorge Bridge load tests primarily consist of static and dynamic load tests. (The Huajiang Gorge Bridge load test consists of three phases: no-load testing, static load testing, and dynamic load testing. The entire process will last four days.)

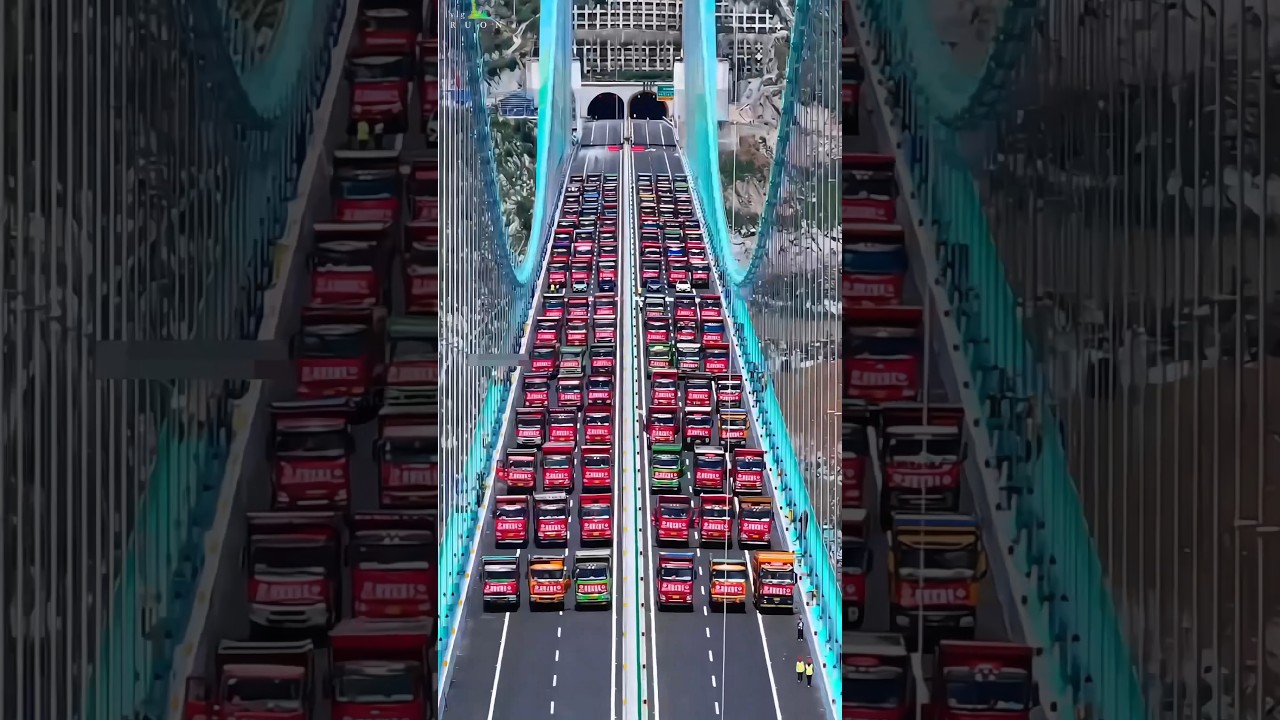

This morning (August 25th), the #HuajiangGorgeBridge underwent its final static load test, with 96 test trucks loading the bridge. The vehicles, divided into five groups, entered the bridge symmetrically from both ends and stopped along the bridge's centerline. The test fleet progressed in batches of 24, 48, 72, 84, and 96 vehicles. Each truck carried 35 tons, ultimately resulting in the bridge bearing a load of approximately 3,360 tons. This simulated a large-scale traffic jam, allowing testers to examine the stress and strain, deflection, displacement, and cable tension in key components of the bridge's systems.

Previously, the bridge underwent static load tests and dynamic load tests on 18 and 48 vehicles respectively. After preliminary analysis of the data by the testing team, all results were within the calculated limits.

这两天，世界第一高桥——花江峡谷大桥正在进行荷载试验，大桥接受通车前的“关键大考”。荷载试验是桥梁通车前验证大桥结构安全性与承载能力的关键环节，也被称为大桥的“全身体检”。花江峡谷大桥荷载试验主要分为静力荷载试验和动力荷载试验。


About Bridge Information ℹ️

花江峡谷特大桥
Huajiang Grand Canyon Bridge
Beipanjiangzhen, Zhenfeng, Guizhou, China
2,051 feet high / 625 meters high
4,659 foot span / 1,420 meter span
Completion Date in 2025 September

the Huajiang deck level needing to be at an elevation of at least 1,100 meters, the engineers had no choice but to go across the 625 meter deep gap with a suspension span of epic proportions. The decision was made to go with a stiffened steel truss with a main span of 1,420 meters or 10 meters longer than the Humber Bridge, a suspension span in the UK that held the record as the world’s longest suspension bridge for 17 years. The steep slope on the north side of the Huajiang Canyon also required the construction of a concrete tower 262 meters tall with the south tower being a more normal-sized 205 meters tall. The total length of the bridge is 2,890 meters with more than two dozen approach spans of 40 meters.
