This 28 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
. Rim: 28 inch double wall Alloy Rim Fit For: 28 × 1 1/2" tire
. Spoke: 12 gauge / 184mm Length × 36 pcs

. Engine: Bldc hub motor
. Voltage: 36V
. Power: 750W
. Efficiency: 87.5%
. Max speed: 66.4 kmh – 41.2 mph
. Mechanical brake: Disk or  V
. Freewheel: space for 6 or 7 gears
. Cable location: shaft end, LEFT
. Cable length:100cm / 40"
. Install: spacing of 135mm fork
. Noise: 60 db
. Surface: Black painted

. Driver: brushless controller
. MOSFET: 12 PCS
. With LCD: YES
. Rated Voltage: DC 36 Volts
. Min. Voltage: DC 30 ± 0.5 V
. Rated power: 750 Watts
. Casing material: aluminium
. Maximum Current: 26 A ± 1 Amps
. Thermal: aluminum shell and the substrate
. 3 phase 120° brushless motor
. Operating Conditions: -20~45 °C
. Waterproof design
. Size: 105 mm L × 72 mm W × 38 mm H

With LCD, More Function:
Cruise - Yes
Forward & Backward Optional: On / Off
Kmh & mph Optional
Set Max speed 0 ~ 100 kmh / 60 mph
Speeds 0 - 5 - "0" is off. "1" is the slowest. "5" is the fastest.
...

Package Content:
1 x 28 inch 36V 750W rear hub motor wheel

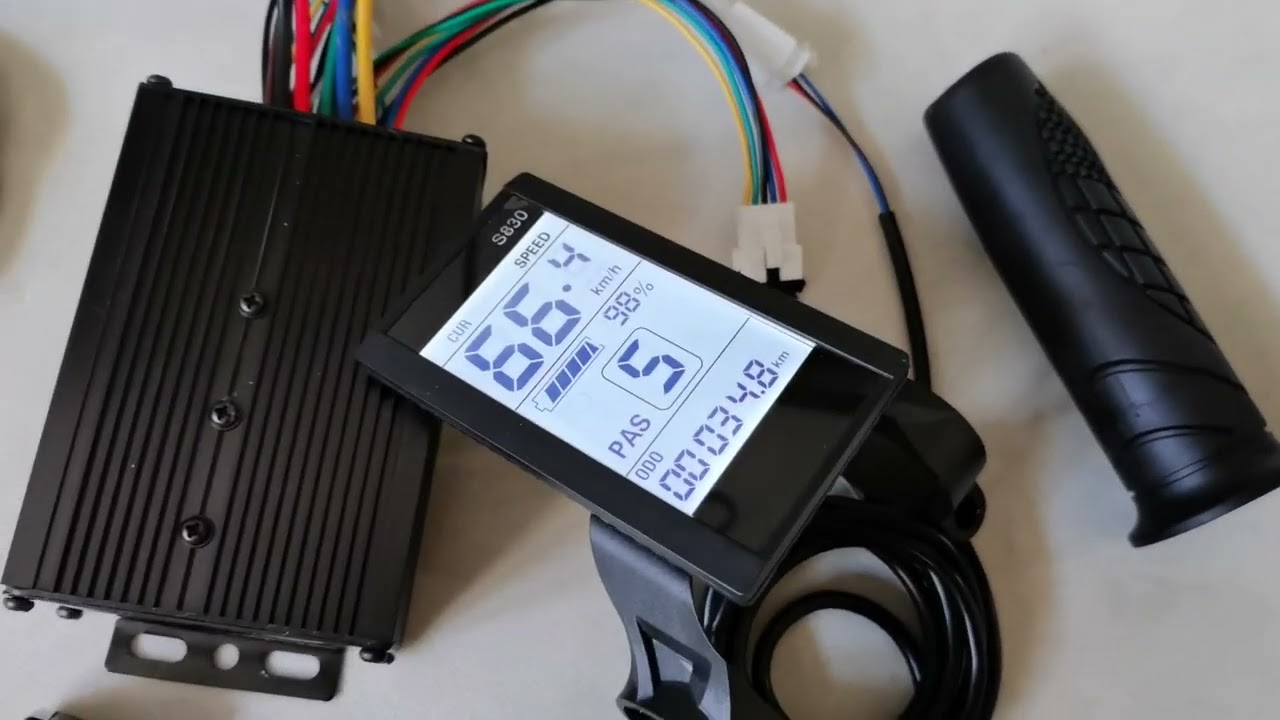

1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle Default Optional: Thumb throttle
1 x Brake levers
1 x Three button switches control cruise..
1 x Pedal assist

Net weight: 10.8 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
