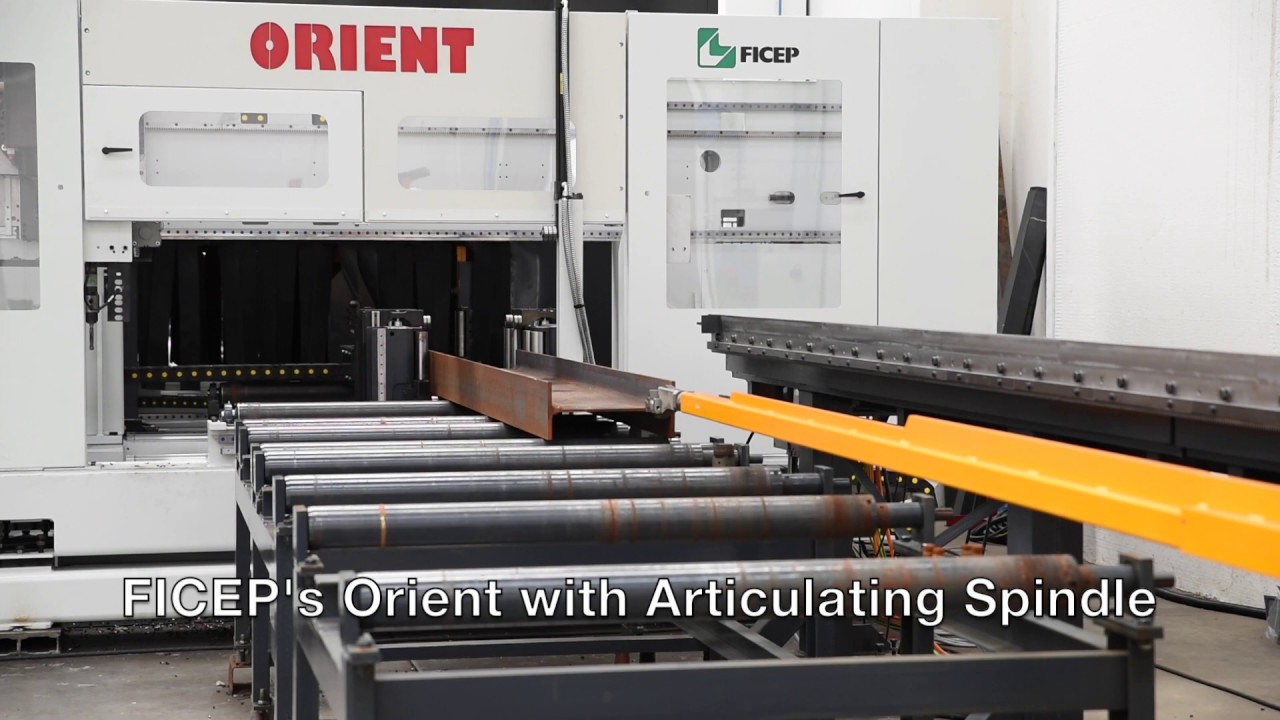

The Orient CNC steel drilling line, uses unique steel fabrication technology to achieve industry-leading productivity for a drill with articulating spindles. This innovative spindle design enables up to three surfaces to be processed with the same spindle.

The Orient spindles feature 17 KW (20 HP) of power at speeds up to 5,000 RPM. The positive spindle feed is designed to take full advantage of today’s high performance tooling. Each spindle is furnished with a 6-position automatic tool changer to accommodate ISO 40 tool holders to generate holes sizes of up to 40 mm (1-9/16”).

The Orient that can be provided with one or two articulating spindles for drilling and scribing for example. When scribing this capability can be utilized to establish layout locations, detail orientation and weld symbols where required. As an option an underside-scribing tool can be added to permit 4 side scribing to eliminate manual layout.

The Orient uses a positive rack and pinion system to achieve exceptional accuracy. The positioning of the section to be processed is achieved to exacting standards regardless of the sections surface condition. This carriage system also automatically measures the stock length of the section prior to processing to maximize material utilization. This positive feeding system advances the section through the drill/saw so all the stock length material can be utilized without requiring a drop. If a trim cut is desired this is automatically removed and placed on a small parts conveyor without any involvement of the operator or attendant. If short parts are required, or a drop is generated, they are processed in the same fully automatic manner.

FICEP invented and has received numerous patents for the automatic importation of the locations of the intersecting members from the 3-D model. These innovative patents eliminate any manual programming to establish not just holes but all the required layout locations.

The Orient family of FICEP drilling lines can be fully integrated with a FICEP engineered and manufactured band saw of a corresponding size. The band saws feature full automation of clamping, feeding, blade adjustments and rotation of the saw to the desired miter angle with positive rack and pinion positioning. Even the lateral position of the optional vertical clamp can be adjusted to accommodate the depth of the section being processed.

As an alternative to integrating a band saw into the line, a robotic thermal cutting system can be implemented. The robot uses both plasma and oxy-fuel thermal cutting technologies in conjunction with an automatic torch changer to achieve cut off, copes, mechanical openings, rat holes, weld prep and more.
