BCNet-CX Ethernet communication module for Omron CPM1A/CPM2A/CQM1 series PLCs, designed for efficient factory equipment informatization and production management.
BCNet-CX DIN rail model is an Ethernet communication processor designed to meet the increasing demands for factory equipment informatization (equipment network monitoring and production management). It is used for Ethernet data collection from Omron PLC series such as CPM1A, CPM2A, and CQM1, making it highly convenient for building production management systems.

The BCNet-CX DIN rail model is suitable for:

PLCs with a 20-pin interface: CPM1A/2A/CQM1 series PLCs, using a CQM1-CIF02 data conversion cable, requiring an external 24VDC power supply.
PLCs with a 10-pin interface: CPM2C/CQM1 series PLCs, using a CS1W-CN226 data conversion cable, requiring an external 24VDC power supply.
BCNet-CX Ethernet module for Omron PLCs

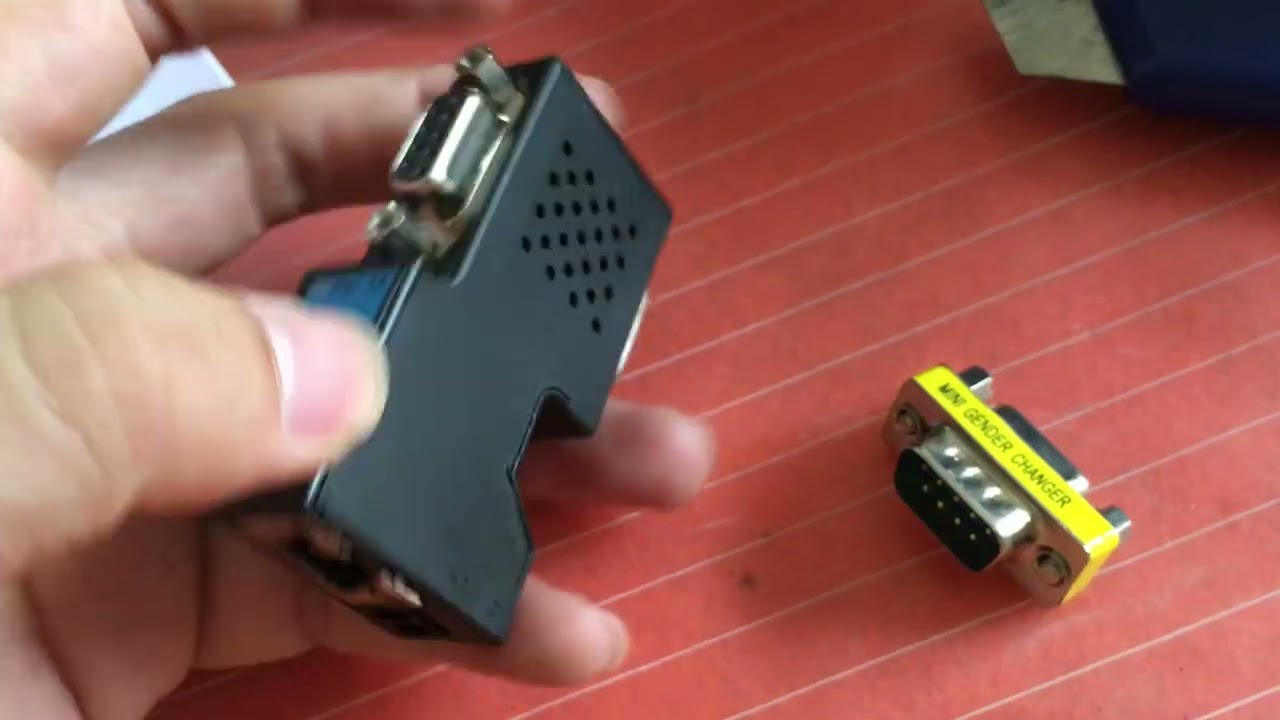

BCNet-CX Direct Plug-in is an Ethernet communication processor designed to meet the increasing demands for factory equipment informatization (equipment network monitoring and production management). It is used for Ethernet data collection from Omron PLC series such as CQM1H, C200H, C500, C1000, and C2000, making it highly convenient for building production management systems.

BCNet-CX Direct Plug-in does not occupy the PLC programming port. This allows upper computer software to monitor PLC data via Ethernet while the touch screen can communicate with the PLC through reuse interfaces.

BCNet-CX Direct Plug-in is suitable for Omron’s 9-pin interface, plugging directly into the 9-pin female port on the CPU. It draws power from the PLC port, eliminating the need for an external 24VDC power supply.
