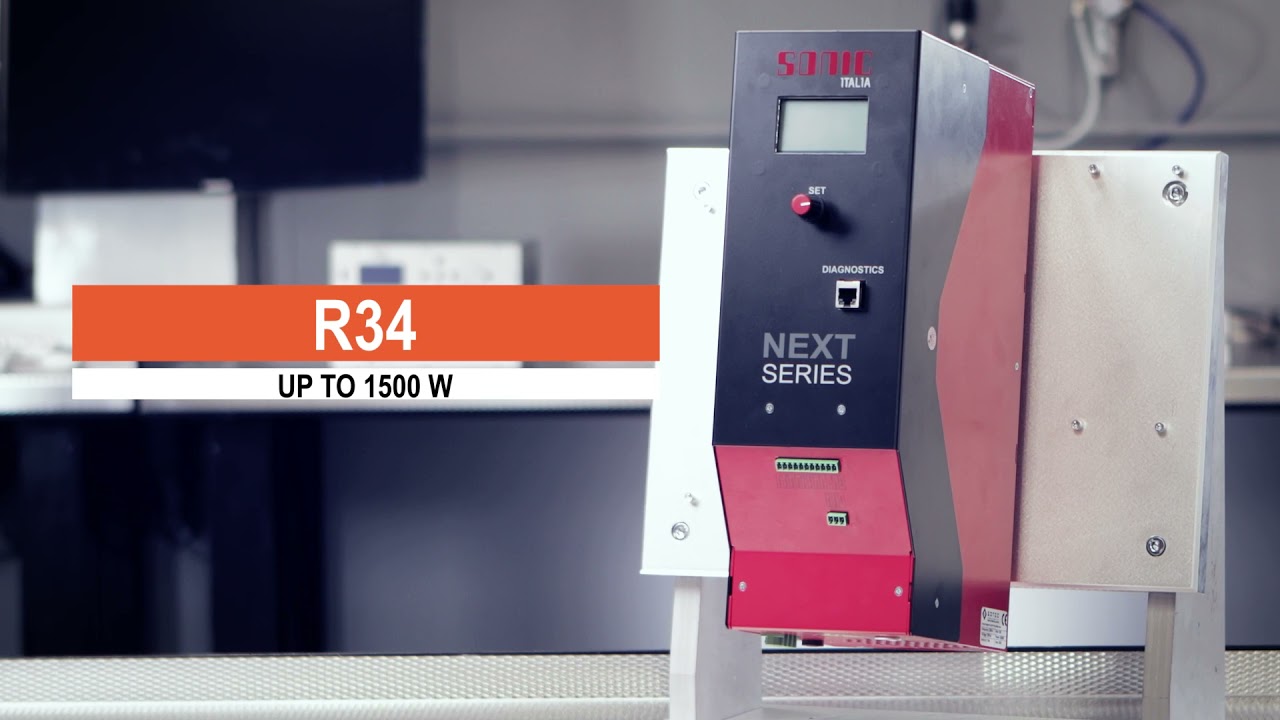

Скачать или смотреть Multi - Frequency Ultrasonic Generator 30-35-40 khz 1500W NEXT R34 | Ultrasonic machine generator

The New multi-frequency ultrasonic generator NEXT R34 has been specifically designed to be used by OEM companies on automation lines and special machines.
SONIC ITALIA patented multi-frequency technology combined with power of 1500 W makes the ultrasonic generator NEXT R34 incredibly versatile as it can be used with up to 7 converters of 30, 35 and 40 kHz.
Its versatility makes it perfect to be used in all fields of ultrasound application, from the ultrasonic welding of thermoplastic materials, to the ultrasonic cutting of synthetic fabrics or ultrasonic portioning of food products, both in continuous and step by step mode.
The proprietary software developed by SONIC ITALIA allows our customers to supervise up to 8 parameters and all alarms in real time.
The integrated digital oscilloscope gives the possibility to view the processes live, providing the first step of quality control.

Technical features of multi frequency ultrasonic generator NEXT R34:
Frequencies : 40 35 and 30 kHz
Max Power : 1500 W
Working mode : Free, Timer, Energy, Joule, Cooling, Test
Communication interface : display with encoder, Modbus RS485 RTU
Live streaming of up to 8 parameters
Graphic display 128 x 64 pixel
Emi filter
Active PFC control circuit
Input voltage : 230/110 V – 50/60 Hz
Connectors : Lemo, Removable terminal block, RJ45
Working amplitude value : 50 to 100 %
Editable value of Voltage to piezo ceramics
Integrated oscilloscope
Ultrasonic generator dimensions : 130 x 265 x 458 h mm
Weight : 7,3 Kg

Contac Us at [email protected] for more information
