Скачать или смотреть Determine the magnitude of P and angle phi | Vector Mechanics Beer & Johnston | Engineers Academy

🎓 Vector Mechanics Problem 3.49 | Maximum Tension in Cable ABAD | Statics Moment About z-Axis



📌 Topics Covered:

Position and force vectors
Cross product to determine moment
Extracting the z-component of a moment
Solving inequality for maximum allowable tension

🧮 Problem Statement:

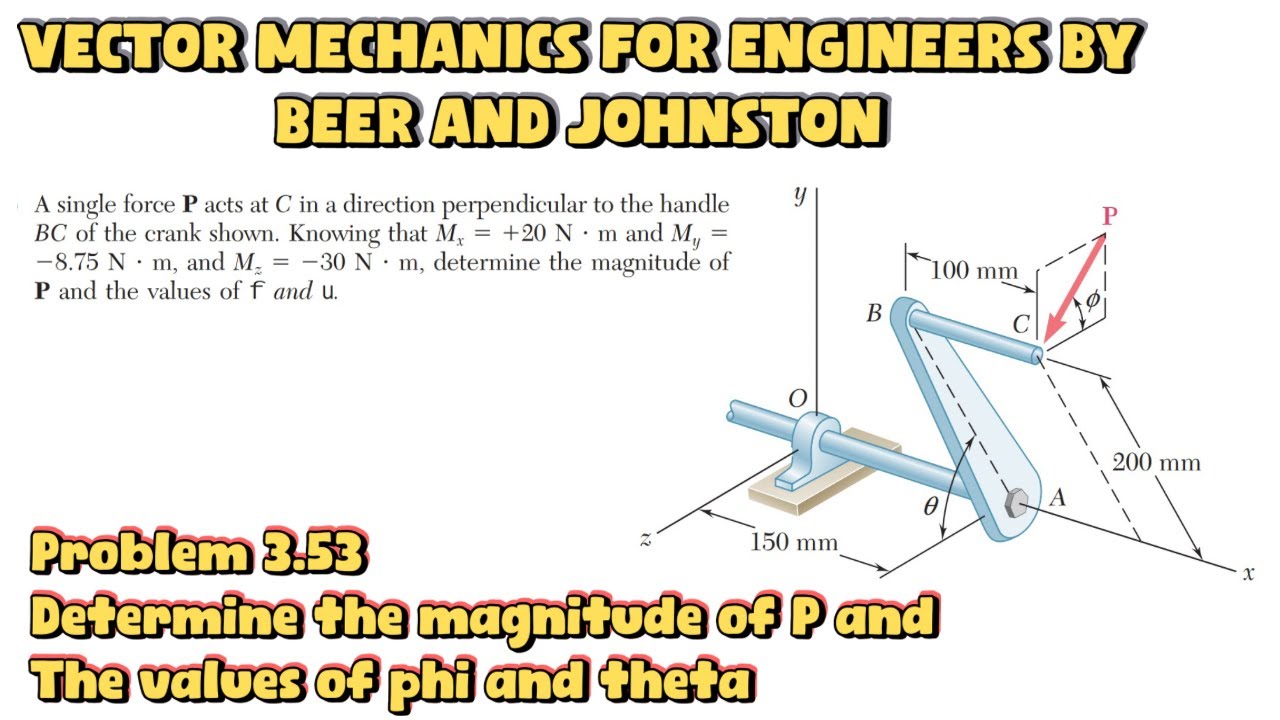

3.53 A single force P acts at C in a direction perpendicular to the handle
BC of the crank shown. Knowing that M, = +20 N • m and M, =.
8.75 N • m, and M= = -30 N • m, determine the magnitude of P and the values of phi and theta.

🔧 Tools Used:

Vector algebra
Cross product
Static equilibrium principles
📘 Textbook Reference:
Vector Mechanics for Engineers: Statics by Beer, Johnston, et al. – Problem 3.50

👍 Don’t forget to like, subscribe, and hit the bell icon for more statics and engineering mechanics walkthroughs!

📢 Got a problem you'd like us to solve? Drop it in the comments!

#EngineeringMechanics #VectorMechanics #Statics #Moments #CrossProduct #Tension #EngineeringTutorial #MechanicalEngineering #BeerAndJohnston #StaticsProblem
