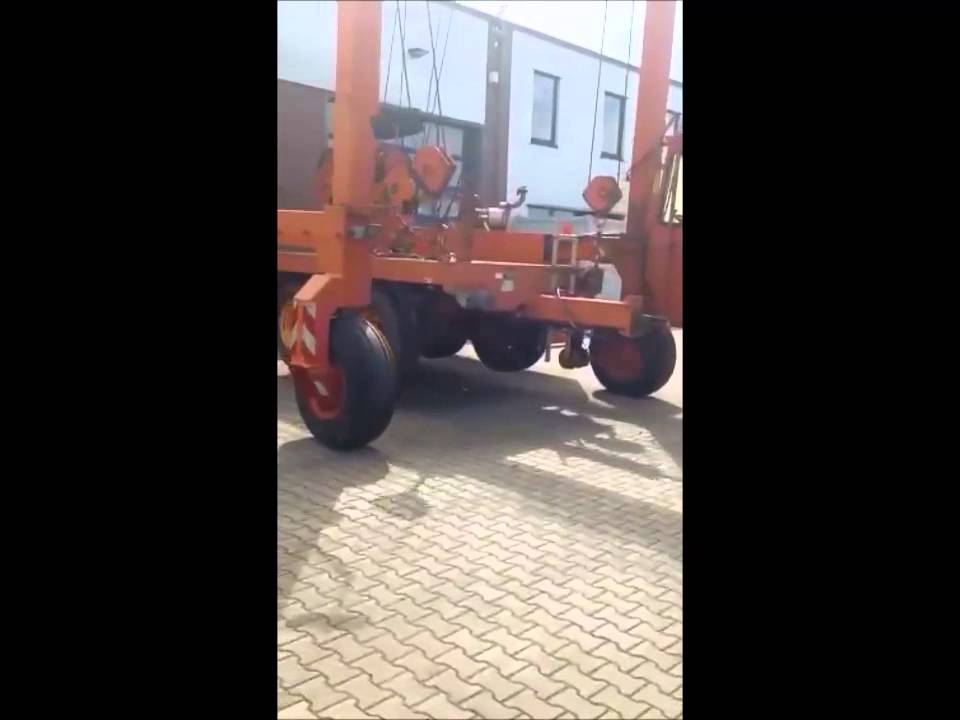

Скачать или смотреть Shuttlelift SL35 2000

http://www.pfeifermachinery.com/en/us...

Manufacturer: Shuttlelift
Typ: SL35
Building year: 2000
Fuel: Diesel
Serial number: 259-400
Working hours: 1185
Loading / lifting capacity: 31.500 kg
Capacity in KW: 82
Capacity in HP: 111

Specifications
Maximum permissible load: 31.500 kg.
Overall height: 6050 mm
Inside clear height (below the crossbar): 5490 mm
Total width: 5020 mm
Inside width: 3500 mm
Wheelbase: 5640 mm
Maximum distance trolley (Center-center): 5790 mm
Minimal trolley distance: 2060 mm
Speed loaded: 27.4 m/min.
Travel Speed Empty: 54.9 m/min.
Lifting speed, normally at full load: 3.05 m/min.
Lifting speed, empty: 4.57 m/min.
Gradeability: 6.5%
Weight: 11.340 kg
Tire pressure: 8.3 bar
Outside turning radius: 9145 mm

Cab, with heating,Defroster and windshield wipers.
Driving and working light.
Rotating warning lights.
Device is completely overhauled.

All necessary documents and papers.
