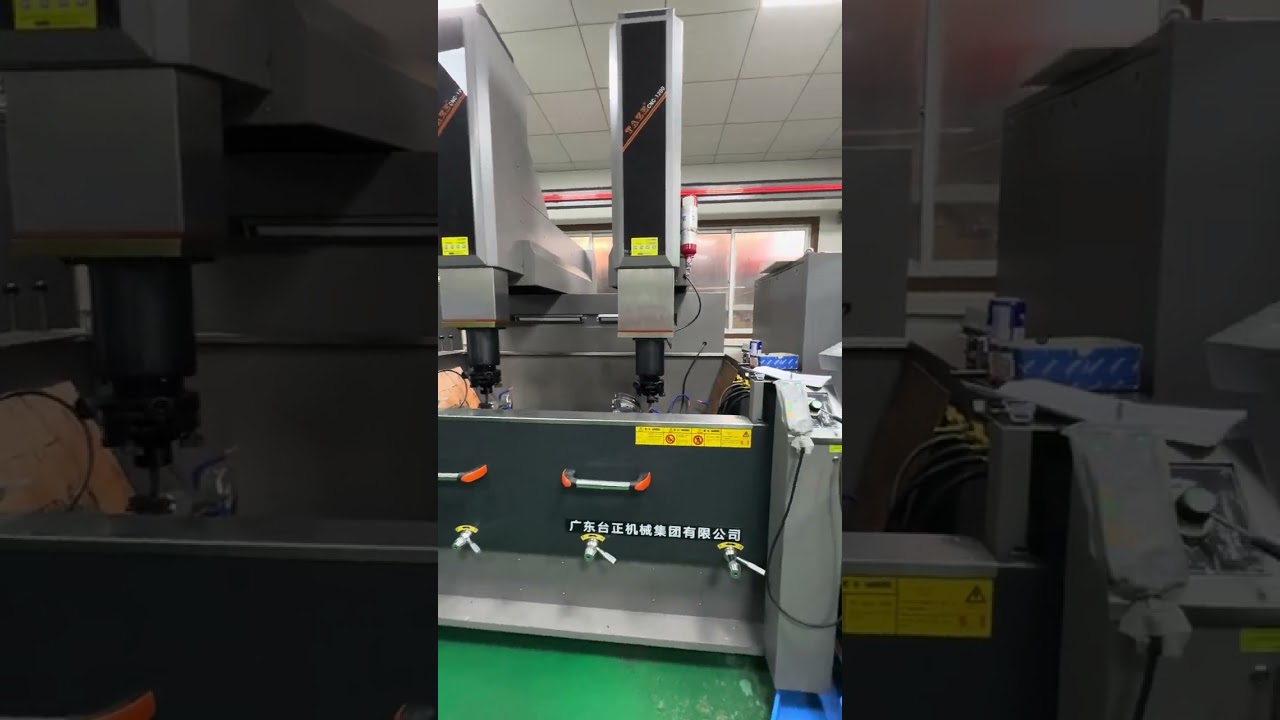

Скачать или смотреть Double head Electrical Discharge Die Sinking Mirror EDM Machine

www.caliberindustry.com
[email protected]

1.Single-axis mirror control system.
2.Intelligent CNC mirror EDM system.
3.Four-axis linkage CNC mirror EDM machine system
4.Mirror EDM expert process library system
5.Linux stable and reliable industrial level operating platform
6.19″ touch capacitive display
7.Industrial level metal crystal input keypad + touchpad
8.Multi-function hand control box (automatic contact counting, clearing, 1/2 and coordinate system switching on the hand box)
9.Minimum drive 0.0001mm
10.Automatic programming system (input material combination, electrode shape, machining depth, machining roughness and machining coordinates to generate machining program)
11.High-gloss mirror control loop, optimum finish Ra≤0.13
12.Ultra-low loss circuit, small current finishing circuit, minimum control current ≤75mA
13.Small current finishing circuit, minimum IP0.1
14.Machining modules such as deep bone position, large area, and screw
15.Machining history (view the last 400 machining and historical operations, machine start-up time and discharge machining time)
16.Anti-carbon buildup, arc release and automatic cleaning of machining surface
17.60 display machining coordinate systems
18.Machining information display (display machining time, machining residue and efficiency)
