SOLIDWORK TUTORIAL NO #19 / HOW TO MAKE ACME THREAD IN SOLIDWORK.


========


IN THIS TUTORIAL I WILL EXPLAIN HOW TO USE THIS HOLE VIZARD FIATURE AND MAKE ACME THREAD AND YOU CAN MAKE ALL TYPE OF THREAD USE THIS METHOD IN SOLIDWORK.
IN THIS TUTORIAL WE MAKE A 1 ACME THREAD PROFILE IN THREAD PROFILE FOLDER.

I WIL ALSO GIVE PATH OF THIS THREAD PROFILE FOLDER.

(THIS PC)---(LOCAL DRIVE_ C)---(Program Data)---(SOLIDWORKS)---(SOLIDWORKS 2016)---(Thread Profiles)

NOW GO INSIDE THIS THREAD PROFILE AND COPY THIS METRIC DIE.SLDLFP FILE AND PASTE IN THIS THREAD PROFILE FOLDER.NOW RENAME THIS FILE AS A METRIC ACME THREAD AND OPEN IT IN SOLID WORK AND EDIT
THIS PROFILE AND MAKE ACME MEANCE TREPAZODIAL shape TYPE PROFILE AND DIAMENTION OF THIS PROFILE IS
HIGHT IS 0.5*PITCH
MIDPOIN OF THREAD IS 0.5*PITCH
THREAD TEATH LENGT IS 0.37*PITCH
DEGREE BETWEEN 2 THREAD IS 29’.

IN THIS TUTORIAL WE MAKE THREAD ON OD MEANCE OUTER SURFACE OF
CYLINDER

IF YOU NEED INSIDE THREAD MEANCE ID (INSIDE DIAMETER) THEN ALL PROCESS SAME BUT COPY METRIC TAP.SLDLFP THIS FOLDER AND EDIT THIS FILE AS A METRIC THREAD ACME AND OPEN AND EDIT AND MAKE THREAD LOCATION IN CYLINDER INSIDE HOLE THEN SELECT THREAD AND THIS FILE THAN THREAD ARE DONE .

IF YOU CAN FACED PROBLEM IN INTERNAL THREADS THAN COMMENT PROBLEM I WILL SOLVE YOUR PROBLEM .

IN THIS TUTORIAL WE MAKE ACME THREAD AND THIS ACME THREAD DIAMENTION IS PER THREAD HEIGHT AND LENGTH IS STANDARD IN VARIOUS DRAWING DIAMENTION IS LIKE THIS
0.5 * (MULTIPLY) OUR PITCH 1 MM. (IN THIS TUTORIAL FOR EXAMPLE WE USE 1 MM PITCH)
HIGHT IS 0.5*P
MIDPOIN OF THREAD IS 0.5*P
THREAD TEATH LENGTH IS 0.37*P
DEGREE BETWEEN 2 THREAD IS 29’.

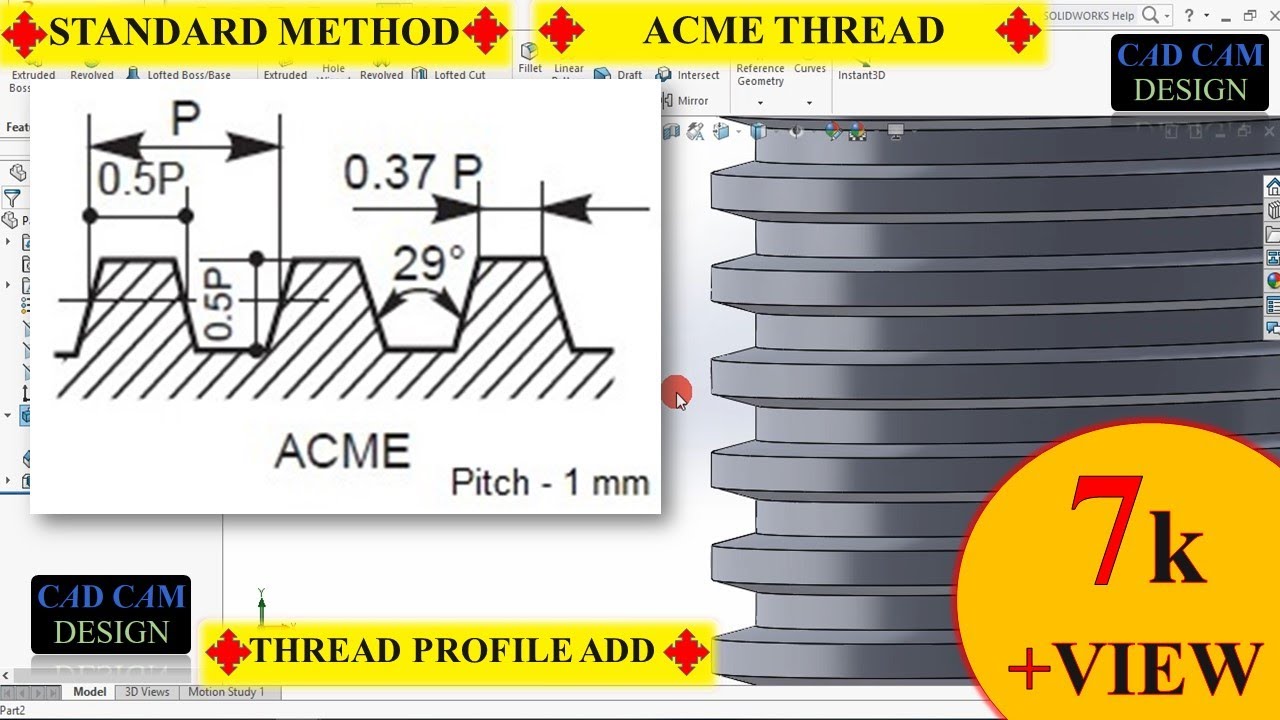

I WILL ALSO PUT DIAMENTION IN THUMNAIL.


DIFFERENT EXAMPLE IN THIS TUTORIAL DIAMENTION.
IN THIS TUTORIAL WE USE 1 MM PITCH.
NOW,
HIGHT IS 0.5*P ====0.5*1=0.5 THIS IS OUR THREAD HIEGTH

MIDPOIN OF THREAD IS 0.5*P =====0.5*1=0.5
THREAD TEATH LENGTH IS 0.37*P=0.37*1=0.37
DEGREE OF THREAD IS 29’.



(this 0.5 will be standard and pitch will be 1,2,10,20)

THIS DIAMENTION ARE ONLY FOR ACME THREAD AND ALL DIAMENTION ARE IN MM.

========

we will learn below tools or features (OPTIONS) IN SOLIDWORK.

1.HOLE VIZARD FEATURE

2.THREAD

3.ACME THREAD


=========
