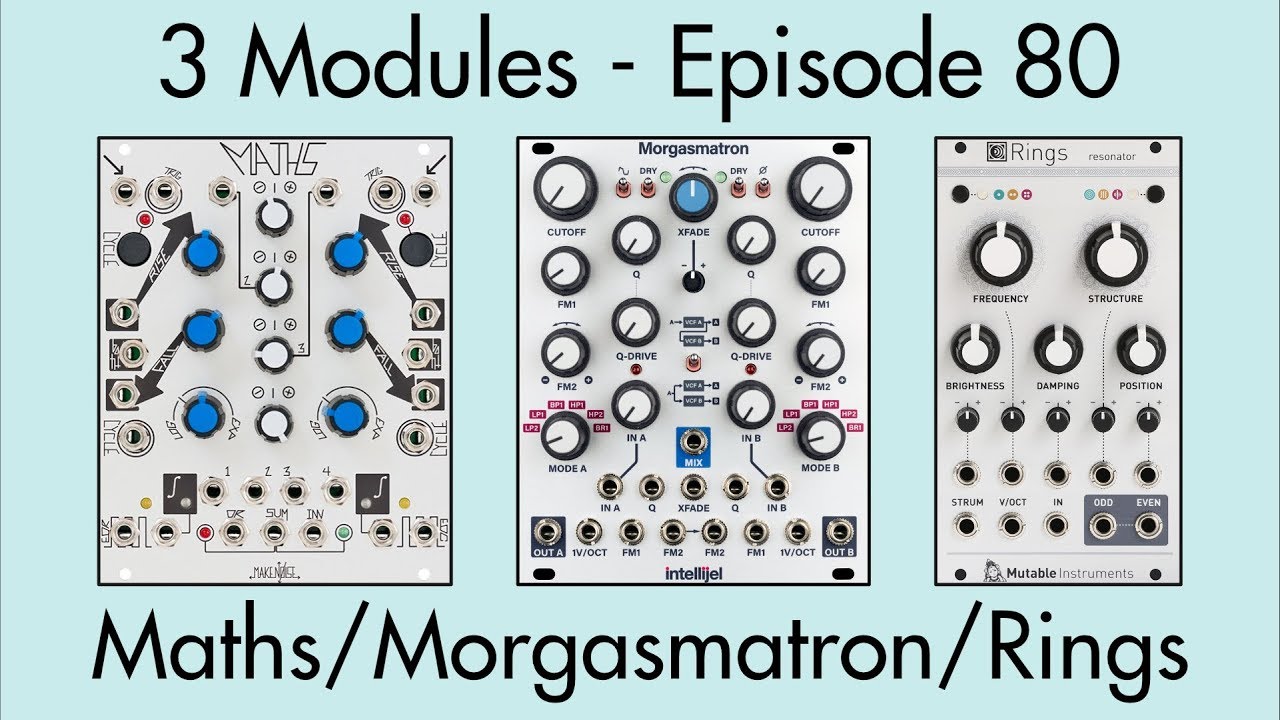

Скачать или смотреть 3 Modules #80: Maths, Morgasmatron, Rings

Drones!

Patch notes:

I'm using Morgasmatron as a sort of "complex oscillator", with both filters pushed to self-oscillation. The output of filter B is patched into FM2, which means it'll modulate the frequency of both filters by an amount determined by each of the FM2 attenuverters. I also have the filter routing set to "series", so when I turn up the "In B" knob, filter A's output is fed into filter B.

The Mix output from the filters is then sent to both channel 2 and 3 of Maths, and I have one channel turned all the way up and the other turned all the way down (reverse polarity). Now, as you might suspect, the SUM of these signals is nothing at all, so why do this? Because the OR output only outputs the highest, positive voltage of both inputs at any given time. It will output the original signal as long as it's in its positive phase. When that goes negative, the reverse polarity signal goes positive and takes over. The result is a full-wave rectified (google it and you'll find some nice illustrations) version of the input: That is a version where the negative phase is flipped. The effect is kind of like asymmetrical wavefolding, which is makes for a cool, musical type of distortion.

The distorted signal is sent to Rings, and processed with its sympathetic strings resonator mode. Maths' channel 4 envelope modulates the Position parameter to add some motion to the resonator.

Maths also modulates the frequencies of the two filters, by way of the looping envelope generators. And to add to the interaction, channel 1 also modulates the fall time of channel 4.

* *

Thanks for watching! :)

Feel free to request upcoming module combinations from my rack, and check out the #3modulechallenge for more 3 module patches!
