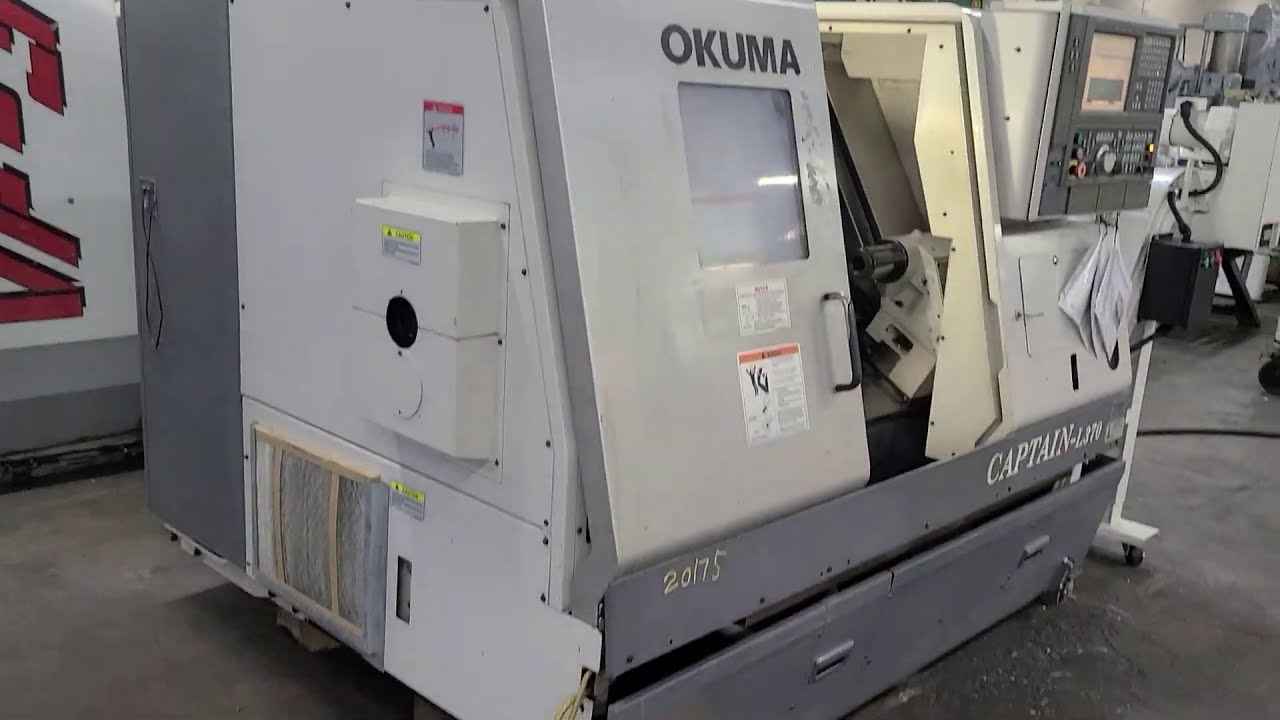

Скачать или смотреть 2005 OKUMA CAPTAIN L370 CNC LATHE ez52552

https://www.ezsystems.com/p/Okuma-Cap...

Chuck Size: 10"
Swing Over Bed: 20.87"
Swing Over Saddle: 16.54"
Maximum Turning Diameter: 14.56"
Maximum Work Length: 19.68"
X-axis Travel: 10.23" / Z-axis Travel: 20.47"
Spindle Nose: A2-8 / Spindle Bore: 3.15"
Spindle Speeds: 45 to 3,000 RPM
Turret Type: 12 Station Face and Circumference
Rapid Traverse Rates X / Z: 787 / 984 IP
Tailstock Quill Type: #5 Morse Taper / Quill Travel: 4.72"

EQUIPPED WITH:
10" Kitagawa 3 Jaw Hydraulic Chuck, Model No. B210 with Actuator
Missing: Draw Tube Between Actuator and Chuck
Fine Serrated Hard Master Chuck Jaws (No Top Jaw)
Hole Thru Chuck: 3"
ASA A1-8 Backing Plate Bolted to Chuck
LNS Turbo Chip Conveyor, SN. 13347500495, Model 54759466
(2) Circumference Tool Holders
(1) 3-1/2" Disc Drive
(1) 4 Port USB Hub
(3) Foot Pedal Controls
Built in Work Light
Central Lubrication System
Coolant System with Pump
Full Work Area Guarding
Windows and OSP Control Software CD's
OEM Electrical Schematic
Color CRT
 
INSTALLED FEATURES:
One Touch IGF
Windows System Version 1.2.0.E
Okuma Control OSP-P 100 CNC
NC-Spec Codes Installed:
HI-G Control
NC Turret
Heavy Tooling
Servo Link NC
Servo Link Spindle
Tape Data In / Out
Edit Interlock
NC Torque Limit
LAP 4
Nose-R 2B
Exp. Auto Chamfer
One Touch IGF
Programming Help
Help
3D Animation
Animation
Touch Setter
Turret Position Comp
Tool Wear Comp
I / M Switch
Cycle Time Calculator
NC Work Counter
NC Work monitor
Cycle Time Check
Load Monitor
MAC Man
Pitch Error Comp .SP
Simple Tow Along Tailstock
Spindle Max. IL.
Center Work
Chuck Grasp Comf
EX Brake Release
Safety Relay
POS Unit
Oil Level Detect

1/2 HP Chip Conveyor Motor
20 HP Spindle Motor
Wired for 220 / 480 Volts
Presently Wired for 220 Volt Operation
Full Load Current: 74.1 / 34 AMPS
Largest Motor: 96 AMPS
Rated Capacity: 28.2 KVA (37.8 HP)

Overall Size, Machine: 87" LR x 72" FB x 82" High (on 4" blocks) x 9,500 Lbs.
Chip Conveyor: 93" x 23" x 63" High x ?? Lbs.
Coolant Pan: 87" x 23" x 19" High x ?? Lbs.
