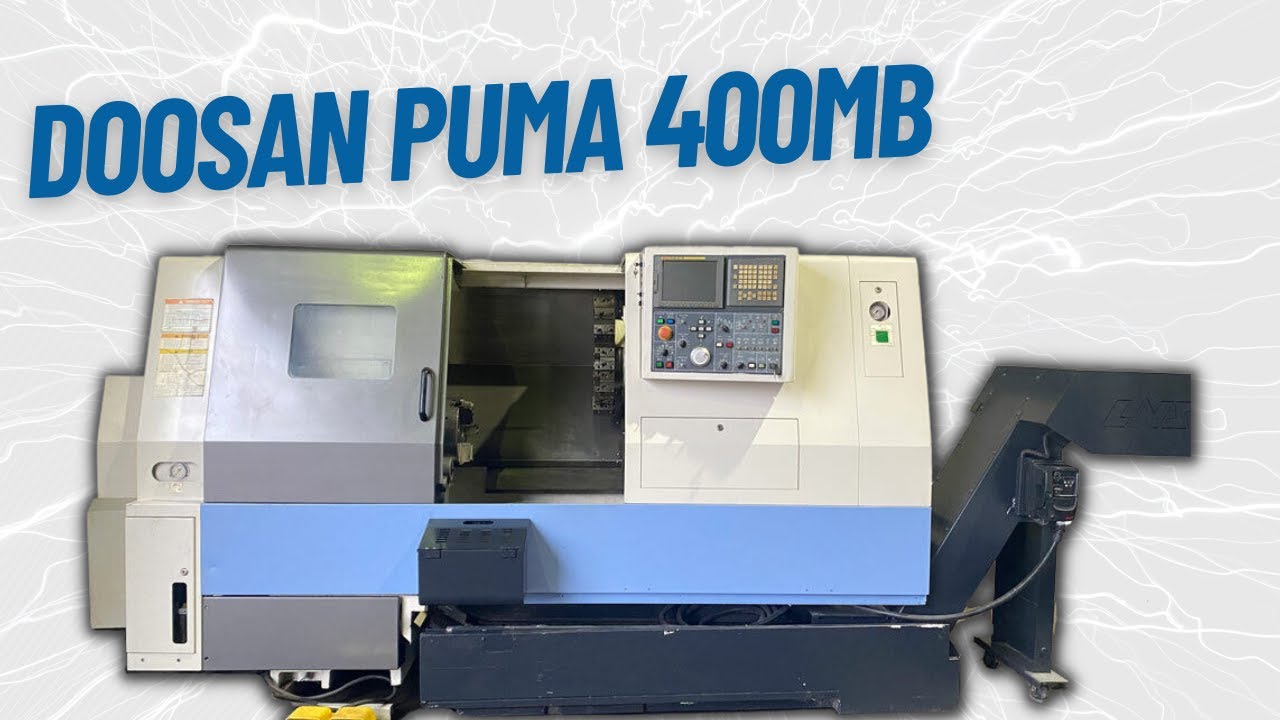

Скачать или смотреть DOOSAN PUMA 400MB CNC TURN MILL LATHE SKU 2062 – MachineStation

Hello, thanks for checking this DOOSAN PUMA 400MB CNC TURN MILL LATHE Video.

For Pictures and Specifications 👉 https://machinestation.us/product/doo...

We Sell New & Pre-Owned Metal Cutting & Forming CNC Machines. We have hundreds of quality used CNC machinery in stock at our locations in Houston, Texas I Byron, Illinois I Lake Elsinore, California I New Delhi, India I Mexicali, Mexico 👉 https://www.machinestation.us/locations/

Please call us at 909-919-9600 or check our complete inventory at http://www.MachineStation.us

We are always in market to buy surplus machinery for cash 💰💰 from one machine to complete manufacturing facility. Click 👉 https://www.machinestation.us/sell-ma...

#CNCMachines #MoriSeiki #UsedCNCLathe ⭐⭐⭐ For Special Offers, Follow MachineStation ⭐⭐⭐
🔗 Facebook:   / machinestation
🔗 Twitter:   / machinestation
🔗 Instagram:   / machinestation
🔗 Linkedin:   / mycompany
🔗 Pinterest:   / machinestation
🔗 Pre-Owned Inventory: https://www.machinestation.us/used-ma...

SKU # 2062
Make: DOOSAN
Model No.: PUMA 400 MB
Serial No. P35M2325
Year: 2006/2007
Cutting Time: 5049 Hours
Condition: Very Good

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final. *

Equipped With:
• Fanuc 21i-TB CNC Control
• C Axis
• 12 Station Live Tool Turret
• 18″ Big Bore Hydraulic Chuck
• 5.2″ Bore A2-11 Spindle
• Programmable Hydraulic Tailstock
• PCMCIA Card Interface
• Foot Switch
• Coolant System with pump
• Chip Conveyor
Specifications:
• Max Turning Diameter: 22.0″
• Max Turning Length: 38.5″
• Max Bar Capacity: 4.6″
• Swing Over Bed: 30.3″
• Swing Over Carriage: 23.2″
• Distance Between Centers: 42.0”
Travel:
• X Axis Travel: 14.1″
• Z Axis Travel: 43.5″
• C Axis Travel: 0.001
• Rapid Traverse X Axis: 630 IPM
• Rapid Traverse Z Axis: 787 IPM

Spindle:
• Spindle Nose: A2-11
• Spindle Bore: 5.2″
• Spindle Speed: 15 – 2000 RPM
• Spindle Motor: 40 hp
Turret:
• Turret Capacity: 12 Live Stations
• Turret Index Time: 0.25 Second
• Tool Size: 2.4″
Tailstock:
• Tailstock Taper: MT-6
• Tailstock Body Travel: 40.5″
• Tailstock Quill Dia.: 4.7″
• Tailstock Quill Travel: 4.7″
General:
• Power Source: AC 220V, Three Phase, 60 Hz
• Power Requirement: 68 Amps Overall
• Dimensions: 15’0″ x 8′.2″ x 98″ High Overall Dimensions: 20′.0″ x 8′.2″ x 98″ High with Chip Conveyor
• Weight: 30,000 lbs Approx.
