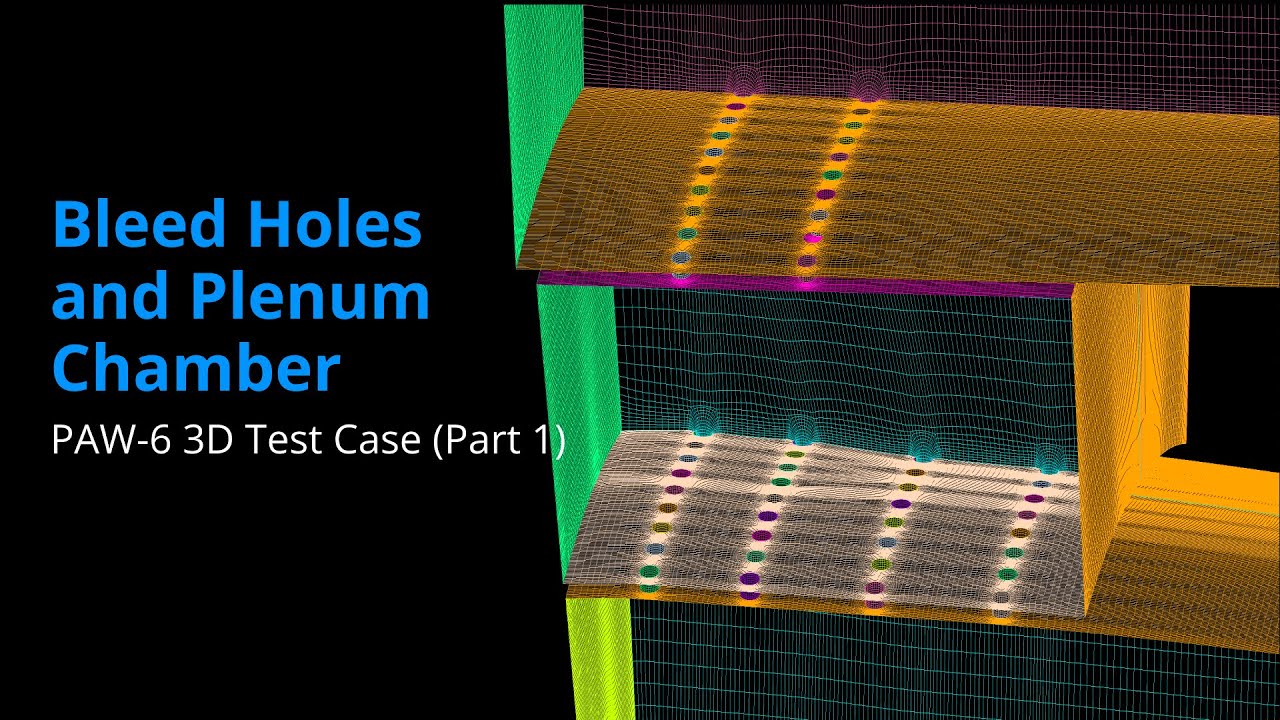

Скачать или смотреть 3D PAW6 Inlet Test Case - Part 1 : Bleed holes and Plenum Chamber

We will be continuing our series on the PAW6 Axisymmetric Spike from the 6th #AIAA Aerodynamics Workshop. More specifically, we will be looking at geometry model 'D', which has fully modelled bleed holes, plenum chambers and vortex generators.

In this video, we will be showing how we can easily create the topology and mesh in the region consisting of the bleed holes and the two plenum chambers, using GridPro's 'Hole Topology' feature.

Contents of the Video
0:00 Introduction
1:12 Important Note
1:32 Hole Topology Creation
3:41 Linking the lower set of holes
4:47 Linking the lower and upper set of holes
6:37 Wrapping to the boundaries
11:52 Density Modification
12:48 Grid Generation
13:07 End of the video

If you have any comments, questions, or suggestions, then drop a line below. You could also connect with us on Twitter, LinkedIn or on Facebook.
