Corona Treater For Monolayer

Avail from us Corona Treater For Monolayer that is used for the treatment on plastic film. We manufacture Corona Treater For Monolayer from quality-tested IGBT & Electronic Items. The Corona Treater For Monolayer has high frequency and is used for increasing surface tension in plastic extrusion film & printing. We are a well-recognized Manufacturer, Exporter and Supplier of Corona Treater For Monolayer.

Sizes Available
• 600 mm
• 700 mm
• 800mm
• 900 mm
• 1000 mm
• 1100mm

Price
• As per size



Technical Specifications
• Main supply : 220VAC single phase 3 wire + 5%
• Mains frequency : 50Hz +5%
• Power dissipation : 1.5Kw
• Output frequency : 18khz to 60khz
• High frequency generator : By using latest German technology IGBT & IGBT driver.
• Indication : Audio alert at the time of start, Load Amps, main on corona start, audio & visual alarm at the time of tripping
• Control : Power control by potentiometer corona start / stop, Pneumatic on/off, Maximum power lock adjustment.
• Protection : Rotation control via inductive sensor, Corona can not be start at the time when door is open, Over load protection, Dynamic short circuit protection at IGBT input shutdown, Under voltage/ Over voltage shut down input.
• Hazardous area : No, Integrated potential free power supply for IGBT driving, Drive inter lock top /bottom
• Power consumption : 1.6kva ( at full load )
• Power line voltage : 220v /50Hz / 1ph
• I.G.B.T. Used : Germany Infinion mack 150A1200v block
• Driver : S.M.D. Fully inter locked top / bottom Low voltage & high voltage shutdown
• Alarm : Audio & visual alarm at the time of trip condition
• Colour : semence gray
• Rotation control : via inductive sensor
• Power regulation : manually by potentiometer
• Measurements
o Generator 520x200x480 (LxWxH )
o Hp-transformer 230x230x330 (LxWxH)

Description
• Treatment : Double sided with two electrode
• Electrode pivoting : pneumatic
• Treatment width : 550mm
• Roll length : 600mm
• Type of electrode : 1pcs. FOUR snapped(F.S)
• Diameter of backing rolls : 50mm
• Roll/ covering : Aluminum/ including silicon sleeves Exchangeable silicon sleeve

To enquire about the desired product(s), just check the box and then click “Inquiry Now” button which is provided below.

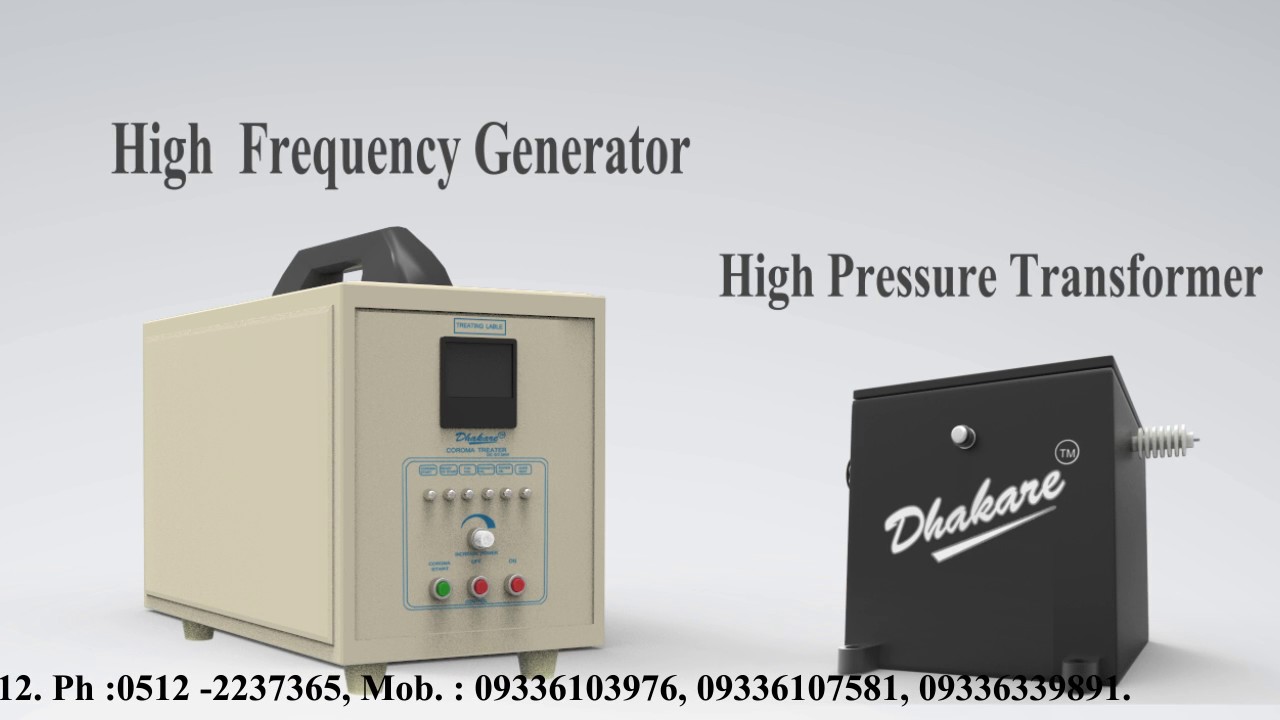

Corona Treater For Monolayer Generator
