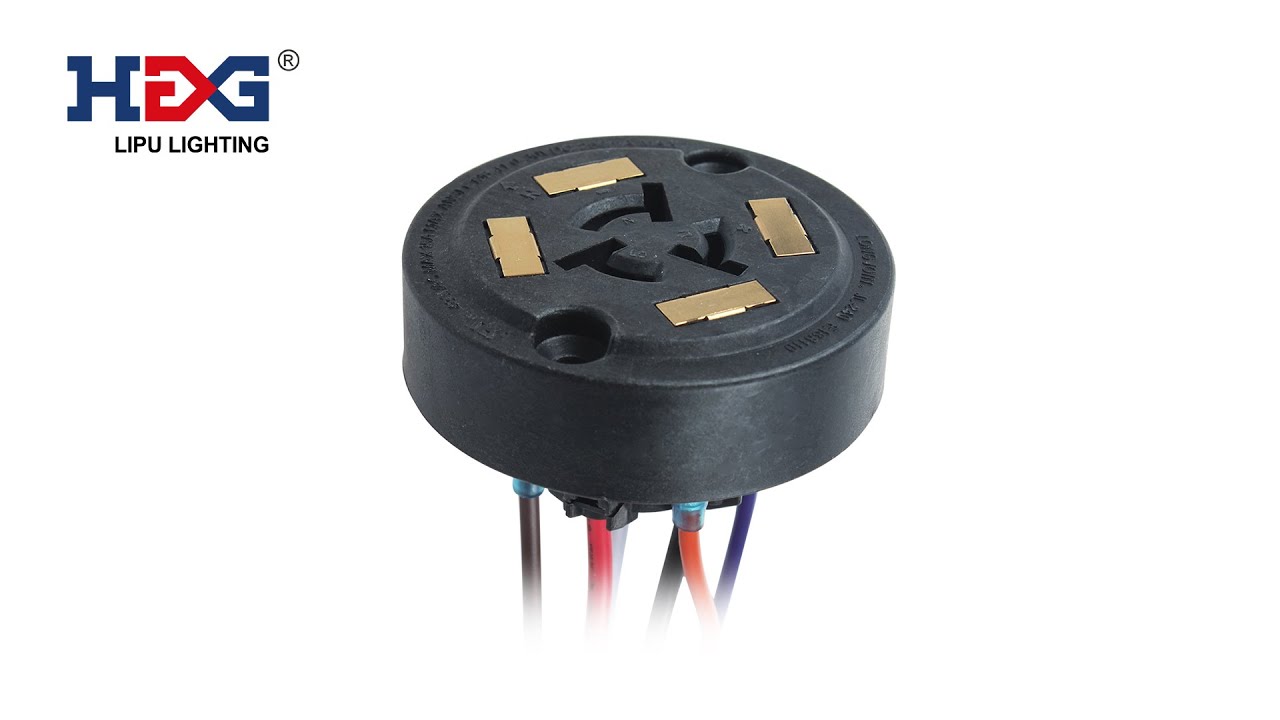

LIPU LP-240-7 PHOTOCELL RECEPTACLE 7PIN BASE
LIPU LIGHTING
LIPU light photo control base

LIPU 7pin Rotatable Nema Connector Socket Photocell Receptacle
Popular ANSI CI36.41 Twist Lock 7Pin Photocontrol Receptacle
for street lights
Ambient Temp:-40℃~+70℃
Related Humidity:99%
Weight Approx:100g
UL773/ANSI C136.20-1996 receptacle for luminaires
UL &CUL listed
Phenolic socket photocontrol receptacle
Perform all wiring of receptacle with power turned OFF
The housing is made of UL 94V-0 rated thermoplastic. The line voltage contacts are made of
phosphorous bronze pl ated overall with tin. Dimming pad contacts are made of brass with gold
plating in contact pad area, tin plated in wire crimp area with nickel under-plate on entire contact.

Shanghai Lipu Electric Lighting Co., Ltd. founded in 2001, and specialized in producing LED flood lights, LED street light, all kinds traditional outdoor lighting products such as flood lights, street light, factory lights, halogen lights and its accessories like ballast, ignitor, capacitor, lamps, photo control photocell receptacle etc. The home automation products such as LED ceiling lights have also been researched and produced.Our company built a new factory in Changzhou...in 2013.(Changzhou Huaou Lighting Electric Co., Ltd.) in order to meet the growing needs of production.
