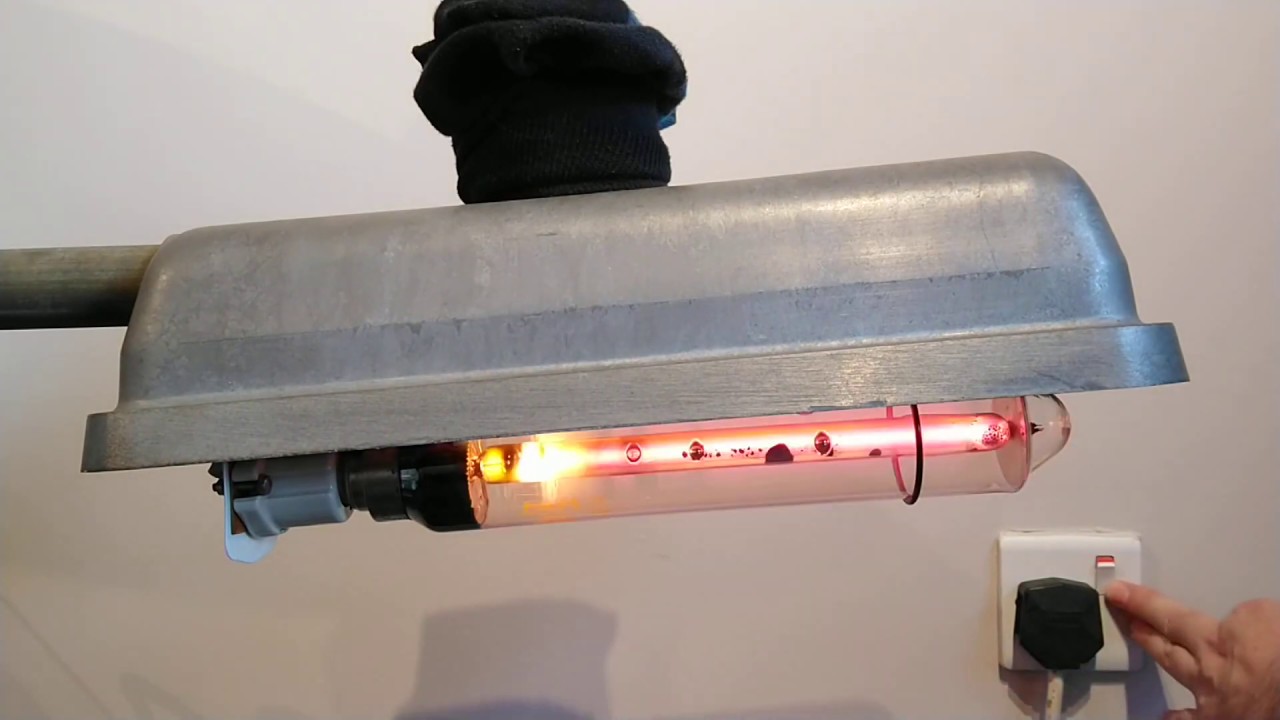

This is a Philips M130-GO and this is the side entry 35 watt version with a Zodion Part Time! (dusk ON to 01:00 OFF/ 05:45 ON & OFF at dawn) photo cell. There is also a 55 watt version and there were top entry versions as well.
The Lamp is a Philips made in U.K. 35 watt Sox Plus Low Pressure Sodium takes about 3-4 minutes from turning on to Fully ON!
Wiring Brown (Live or Line) to IN (photo cell) OUT Brown to ballast and link to capacitor. White wire goes from ballast to black igniter and then to lamp and a white wire from lamp to capacitor to the blue wire, then goes from the capacitor to the black igniter and then to Neutral and a loop goes to photo cell. Earth wire goes to Lamp Case and the to ballast to ground opening cover.
This Philips Street Lamp came from Kew Drive in Wigston Fields Leicestershire. Street had small concrete lamp posts (5 meters) on it. They were replaced with LED R2's lamps with 6 meter metal posts.
