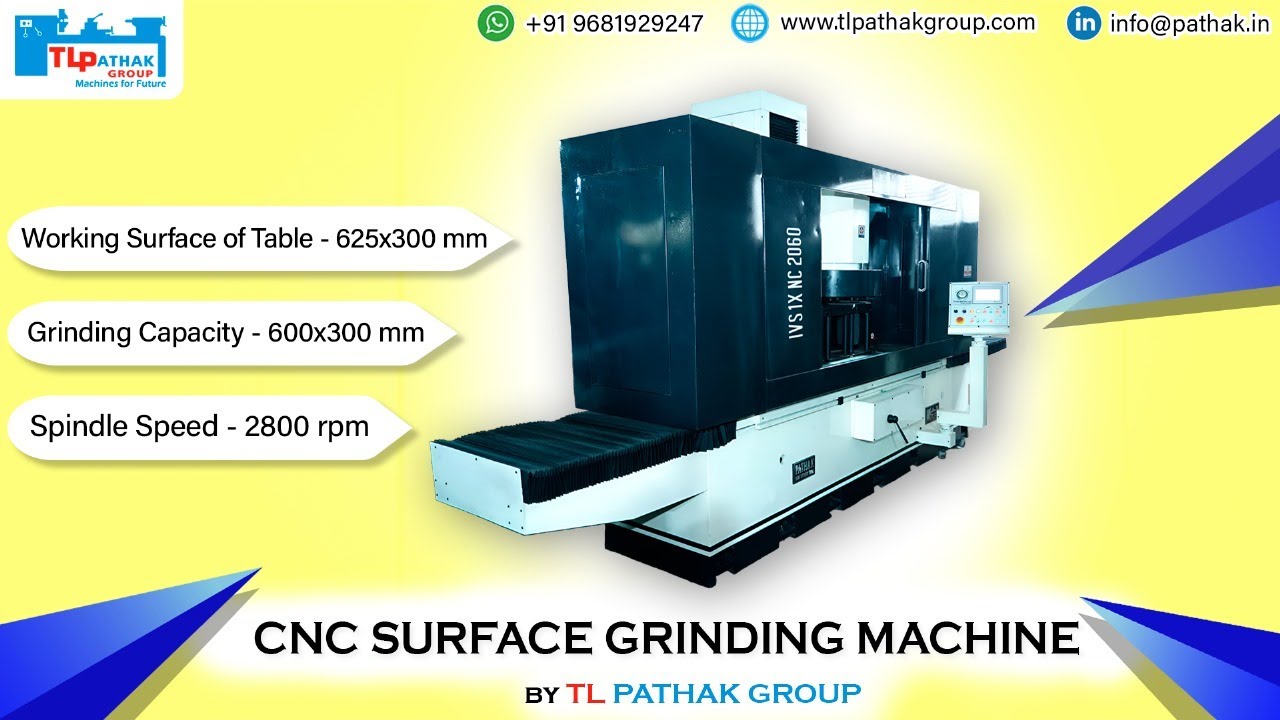

Скачать или смотреть Cnc Surface Grinding Machine by TL PATHAK GROUP

A CNC surface grinding machine is a precision tool used to achieve extremely flat and smooth surfaces on workpieces. Unlike manual grinding, CNC (Computer Numerical Control) surface grinders utilize programmed instructions to automate the process, resulting in higher accuracy, repeatability, and efficiency. Here's a detailed description:

Components and Features:

Machine Bed: A robust base made of cast iron or granite providing stability and minimizing vibrations.
Grinding Wheel: A rotating abrasive wheel that removes material from the workpiece. Different types of wheels are available depending on the material and desired finish.
Spindle: Holds and rotates the grinding wheel at high speed. Precision bearings ensure smooth and accurate operation.
Worktable: A precision surface where the workpiece is mounted. It moves horizontally (X-axis) and vertically (Y-axis) according to the programmed instructions.
Wheelhead: Houses the grinding wheel and moves transversely (Z-axis) for cross-feed grinding.
Control System: A computer interface that allows operators to input parameters, upload programs, and monitor the grinding process. Modern CNC systems offer advanced features like automatic wheel dressing and compensation.
Coolant System: Delivers coolant to the grinding zone to reduce heat, prevent workpiece distortion, and improve wheel life.
Working Principle:

The workpiece is securely clamped on the worktable. The grinding wheel rotates at high speed, and the CNC control system precisely guides the movement of the worktable and wheelhead. Material is removed from the workpiece surface as it passes under the rotating wheel. The depth of cut is controlled by the vertical movement of the wheelhead.

Types of CNC Surface Grinders:

Horizontal Spindle: The most common type, with the grinding wheel spindle oriented horizontally.
Vertical Spindle: Used for specialized applications where a vertical spindle orientation is beneficial.
Rotary Table: The workpiece is mounted on a rotating table, suitable for cylindrical grinding.
Advantages:

High Precision: Achieves tight tolerances and superior surface finishes.
Increased Productivity: Automates the grinding process, reducing cycle times and increasing output.
Repeatability: Consistently produces identical parts with high accuracy.
Versatility: Can handle a wide range of materials and workpiece sizes.
Reduced Operator Skill: Requires less manual intervention and expertise compared to traditional grinding.
Applications:

CNC surface grinders are used in various industries, including:

Tool and Die Making: Producing precise molds and dies.
Automotive: Manufacturing engine components, gears, and other precision parts.
Aerospace: Grinding turbine blades and other critical components.
Electronics: Creating flat surfaces for electronic components.
Medical: Manufacturing implants and surgical instruments.
Choosing a CNC Surface Grinder:

Factors to consider when selecting a CNC surface grinder include:

Workpiece Size and Material: The machine should have sufficient capacity to accommodate the intended workpieces.
Accuracy Requirements: Select a machine with the appropriate level of precision for the application.
Automation Needs: Consider features like automatic wheel dressing and workpiece loading/unloading for increased efficiency.
Budget: CNC surface grinders range in price depending on their features and capabilities.
