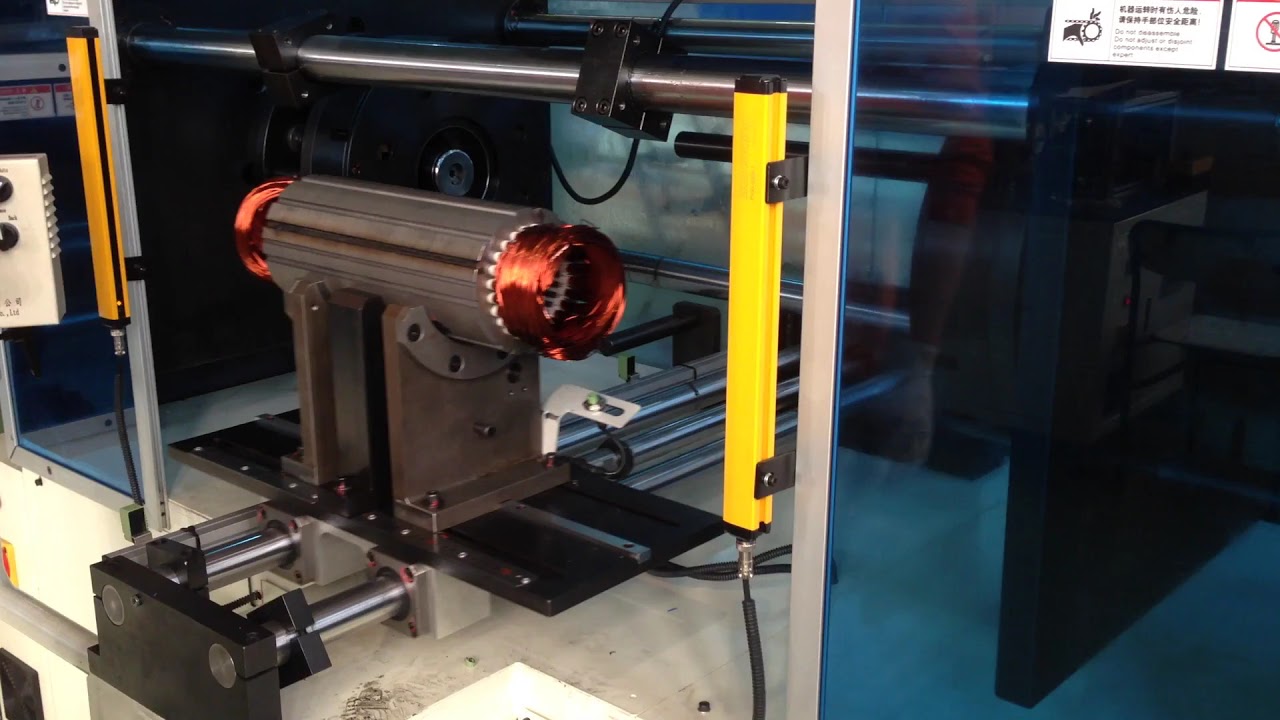

This stator final forming machine is horizontal type so as to easily load and unload stator. It is driven by hydraulic system, and controlled by PLC. It expands the inner of the over-hang during forming process; it effectively ensures the over-hang dimension and the appearance.

During tooling change, just change the block, inner expansion core and upper stator fixing sleeve. The core adopts quick release structure. For the block and upper stator fixing sleeve, it can be quickly changed by loosening the related screws. When change different stack stator, loosen related screws, then drive the gear and rack by handle. After adjustment, tighten the screws.

(1) Main technical data
Stator OD： ≤φ350mm
Stator ID：φ80-φ230mm
Stack Height：100mm-400mm
Displacement of Cylinder：30L/min
Power supply：380V 50/60Hz
Weight ≈1800Kg
Dimension：(L)2550×(W)1930×(H)2200mm

(2) Application
It is applied to deep water pump motor and other various type of overlength motor stator.

If you want more information, please contact us.
