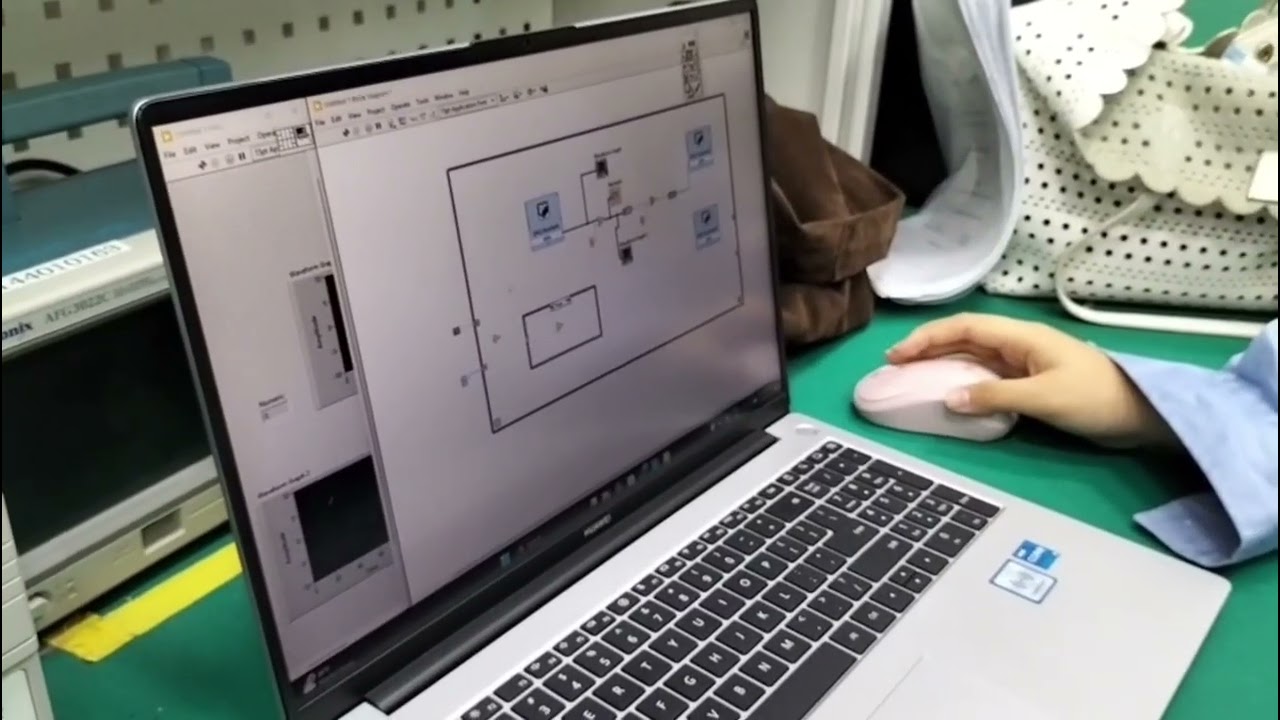

Скачать или смотреть Question 1: FSR Force Measurement Using DAQ System (PART2)

In this video, we demonstrate real-time force measurement using an FSR (Force Sensitive Resistor) sensor connected to a DAQ system. The sensor is set up in a voltage-divider configuration, allowing continuous voltage acquisition that is converted into estimated force or pressure values. Two LEDs provide visual feedback: the green LED lights up when the force exceeds a defined threshold, while the red LED turns on when it is below the threshold, ensuring only one LED is on at a time. An edge-triggered counter records each valid press event, incrementing whenever the force transitions from below to above the threshold. This project highlights sensor conditioning, DAQ integration, and simple digital logic for practical force-sensing applications.

NAME : DAMIA AISYAH BINTI ZAINI
STUDENT ID : 54106323035
IAC - 5A
