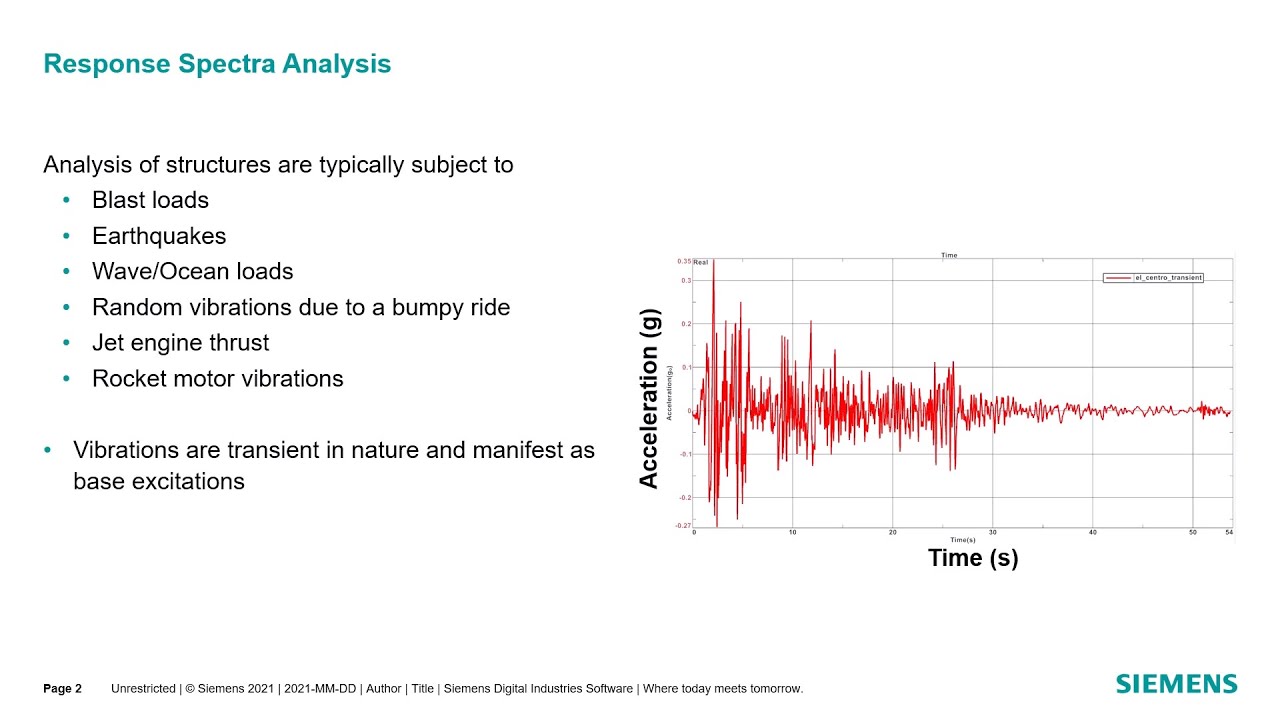

Скачать или смотреть How To Run A SOL 103 Response Spectra Analysis - Tips and tricks

See these tips for creating a solution 103 response spectra analysis. The response spectra load supports table of fields for multiple damping factors and the software will interpolate based on the damping specified in the case control. Version: 2412

This content is a technical guide on conducting a Simcenter Nastran solution 103 Response Spectra Analysis for structures under transient loads. It details the setup process, including editing output requests, specifying modal parameters, and importing shock pulse data. The analysis aims to predict peak structural responses conservatively, ensuring design resilience against shock loading. The guide emphasizes valid result components and the importance of conservative predictions in structural design.
