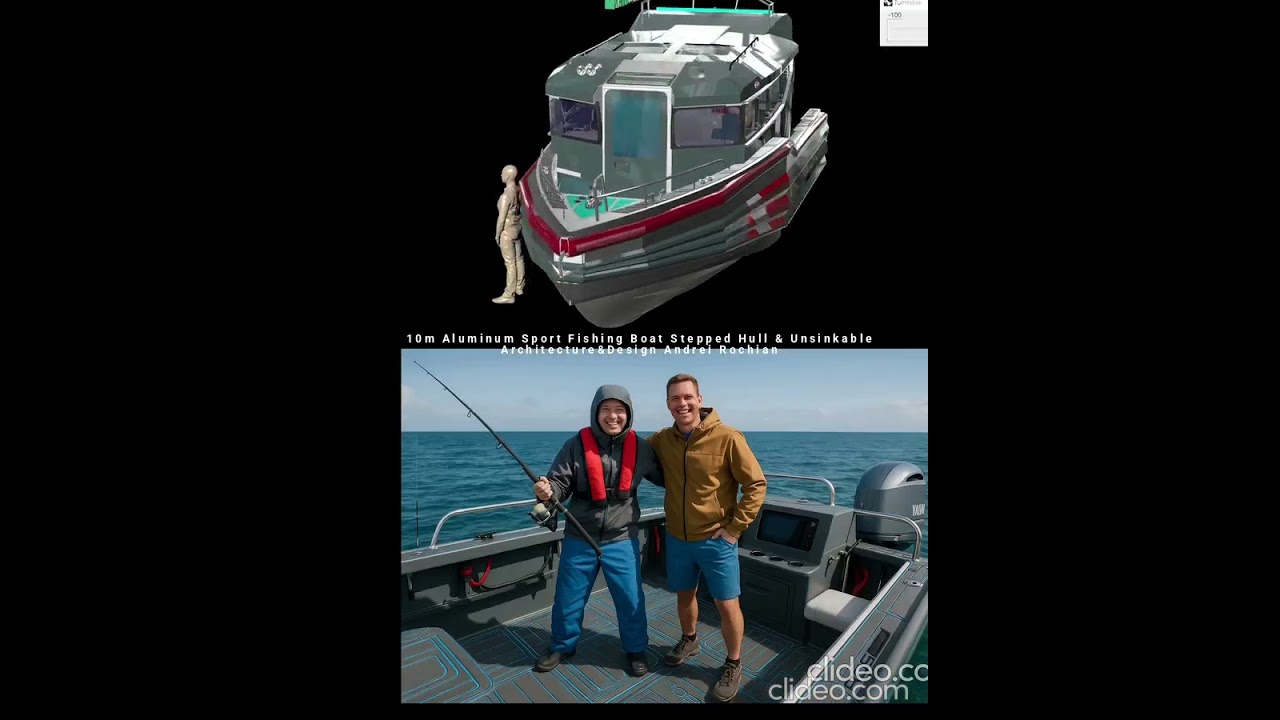

10m Aluminum Sport Fishing Boat Stepped Hull & Unsinkable Architecture&Design Andrei Rochian
STEPPED HULL HIGH SPEED
Foam filled Topsides Augmented Buoyancy
2x 300 hp; 2x400 hp outboards
Side to Side Wide cabin
Passage to the bow by door + roof hatch at centre front cabin
Sanitary Compartment
Stepped Hull
High speed 50 knots
Boat Specifications:
Length Overall (LOD): 10 meters
Length at Waterline (LWL): 7.5 meters
Beam Max (B_max): 3.0 meters
Beam at Waterline (B_LWL): 2.55 meters
Deadrise Angle: 20 degrees
Hull Type: Deep Vee Stepped hull with 2 steps, and a double wall in the topsides filled with flotation foam
Engine Power: 2x 300 hp ; 2x400 (outboard propulsion)
Bow Design: Sharp, raked bow for wave-cutting performance
Maximum Speed (V_max): + 50 knots
Flotation and Stability:
Foam-Filled Topsides:
The topsides are filled with flotation foam between the double walls, which adds buoyancy and increases the overall flotation capacity of the boat. This means:
Even in the event of hull breach or water ingress, the foam helps keep the boat afloat.
The foam reduces the risk of capsizing, enhancing the boat's stability and unsinkability.
The foam filling significantly boosts the reserve buoyancy
The moderate deadrise provides a balance between stability and rough-water performance, while the stepped hull allows for better speed and efficiency at planing.
