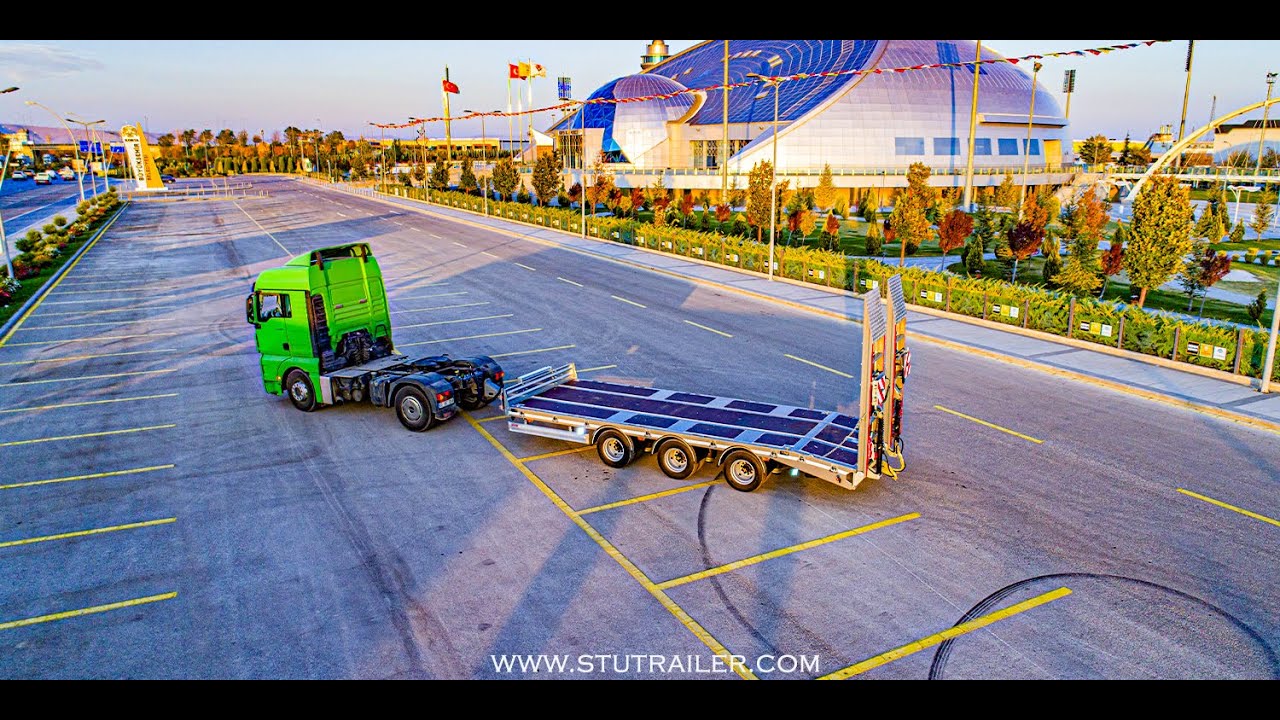

Remorque Trailer - 3 Axle Drawbar Trailer / Tandem Trailer - STU Trailers;

We Build High - Quality Drawbar Trailers / Tandem Trailers from 700MC SSAB Brand for different heavy haulage transportations.

Nous construisons des remorques à barre d'attelage / remorques tandem de haute qualité de la marque 700MC SSAB pour différents transports de poids lourds.

GENERAL DETAILS:
Platform Lenght : 7.300 mm ( 6.250 mm + 1.050 mm )
Total Axle Capacity : 36.000 KGS
Drawbar Lenght : ±1.700 mm
Axle Distance : ±1.360 mm
Total Width : ± 2.550 mm ( 7 x Left & Right Side extensions +25 cm )
Ramp Width : ±850 mm ( Right + Left 25 cm Moveable )

Chassis : Made of high quality steel grade 700MC SSAB Brand, in compliance with Standard ISO 1726-2 and ISO 1726; made of two welded longitudinal beams in "I" form with cross beams at needed distances.

Axle: First axle Liftable and Last Axle can be Self Steering, Using mostly Trax and MPD Brand Axles, Air Suspensions

Brake System : Dual circuit electro-pneumatic WABCO or Knorr Bremse brand EBS 2S/2M ( 4S/3M with self steering axles ) brake system with anti- lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13

Electric System : SA-BA Dasteri™ lightning installation with 24V LED side position lamp and 2 x 7
and 1 x 15 pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation,

Hydraulic Ramps: Suitable with Load with capacity of lowbed and easy demontage with widening 30cm right and left side to load construction machines and inner closer positions for loading small forklifts.

PAINTING:
First Step : Sand Blasting all surface,
First Layer : Barrier™ 80 Jotun (%80 Zinc-Reach) Coating Double Times - C5 (ISO 12944-2)
Second Layer: Jotun™ Epoxy Coating
Third Layer : Jotun™ Brand Premium Acrylic Paint
Fourth Layer : 2K Super Clear Coating for Protection and Shine (95-110 GU )

OPTIONS
Lashing rings Self-steering axle - 1st axle liftable
Spare wheel and it’s holder
Galvanized Chassis
Working lamps EBS Smart Solutions
Hella or Aspöck Stop Lights
Blitz Lights
Reverse Gear Horn
Container Locks
Different Drawbar Solutions
Hydraulic Supporter Landing Legs under chassis
Aluminium Light Beam
Tropical Wood or Plywood
Camera System

STU Trailers Co. is producer of remorque trailers and lowbed trailers with hydraulic ramps. All hydraulics can be use with remote control as optional.

For more: www.stutrailer.com

ABOUT STU TRAILERS;
STU Trailers Limited Company is one of the producer of new semi trailers in Turkey for more than 10 years. You can find different kinds of new semi trailers in our production line like; Lowbed Trailers with different usages models and different axle models, Low Loader Trailers for heavy transportation loadings, Tipper Trailers in different volumes for construction areas, Cement Bulker Trailers for transportation of bulk cement, Concrete Mixer Trailers for construction sector, Flatbed Trailers for long and heavy transportation loadings, 20feet 30feet 40feet 45feet Container Carrier Trailers, Side Loader Trailers to carry 1×20″ or 2×20″ or 1x30ft or 1x45feet Containers in port or custom duties. For different carriage capacities of Lowbeds, Special Trailers as known show Trailer.

A PROPOS DES REMORQUES STU ;
STU Trailers Limited Compagnie est l'un des producteurs de nouvelles semi-remorques en Turquie depuis plus de 10 ans. Vous pouvez trouver différents types de nouvelles semi-remorques dans notre ligne de production comme ; Remorques surbaissées avec différents modèles d'utilisation et différents modèles d'essieux, Remorques surbaissées pour les chargements de transport lourds, Remorques à benne basculante de différents volumes pour les zones de construction, Remorques à ciment pour le transport de ciment en vrac, Remorques bétonnières pour le secteur de la construction, Remorques à plateau pour les charges longues et lourdes chargements de transport, remorques porte-conteneurs de 20 pieds 30 pieds 40 pieds 45 pieds, remorques à chargeur latéral pour transporter des conteneurs 1 × 20 ″ ou 2 × 20 ″ ou 1x30 pieds ou 1x45 pieds dans le port ou les droits de douane. Pour différentes capacités de transport de Lowbeds, Remorques spéciales comme connu montrent Remorque.
