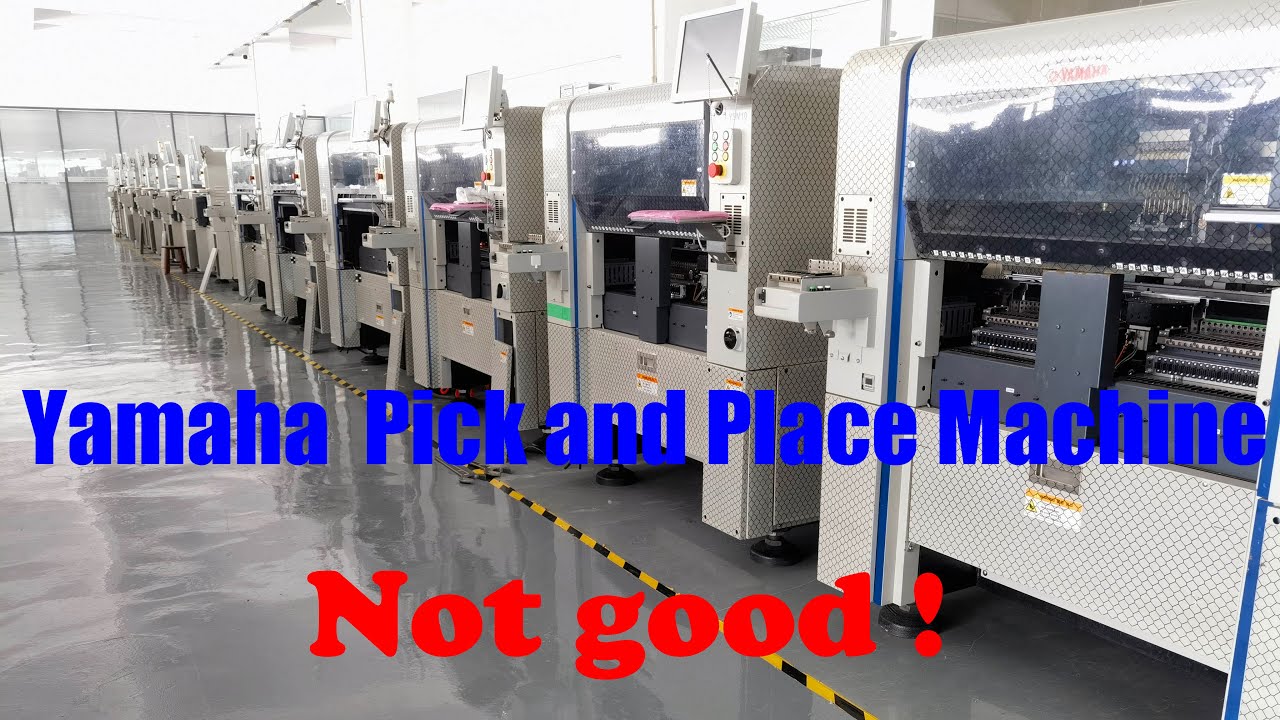

Скачать или смотреть Introduction to the yamaha ysm20r pick and place machine.

Introduction to the yamaha ysm20r pick and place machine.#yamaha machine #smt pick and place machine
https://www.jhims.com/en_product/en_p...
Tel: +86 18975335491 (whatsAPP, telegram, Skype, Zalo, WeChat)
Email: xiexuehua@jhims.com

Technical data of yamaha pick and place machines
Basic specifications

Model :YSM20R machine

Target board size
Monorail model: L810 × W490mm ~ L50 × W50mm
Double conveyor type: *Only for X-axis double beam type
For one board: L810 × W490mm to L50 × W50mm
For 2 substrates: L380 × W490mm to L50 × W50mm


Model :YSM20R machine
Attachment head/components that can be attached
High-speed general-purpose (HM) head*1: 0201mm ～ W55 × L100mm, height 15mm or less
Shaped (FM) head: 03015mm ～ W55 × L100mm, height 28mm or less


yamaha ysm20r machines are available in a range of PCB sizes.
Mounting capacity (optimal conditions)
X-axis double beam: High-speed general-purpose (HM) mount head ×2 95,000CPH

ysm20r pick and place machines Assembly accuracy
Mounting accuracy
±0.035mm (±0.025mm) Cpk≧1.0 (3σ) Our best conditions (when using standard components for evaluation)



Number of component varieties
Fixed plate feeder：Max. 140 types (converted from 8mm belt feeder)
Disposable change cart: 128 types at most (converted from 8mm belt feeder)
Pallet feeder: 30 types (fixed type: when equipped with sATS30/sATS30NS, max.), 10 types (cart type: when equipped with cATS10, max.)



Power supply specifications
Three-phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz



Supply air source

0.45MPa or more, clean and dry condition



External dimensions (excluding protruding parts)
L1,374 × W1,857 × H1,445mm (main body only)



Main body weight

approx. 2,050kg (main body only)
