Introduction

3.5 inch touch screen is the most popular touch screen for Raspberry Pi . Here we design a dual use ABS case for Raspberry Pi 4 Model B with 3.5 inch touch screen . It means you can use the case to install Raspberry Pi and 3.5 touch screen or install Raspberry Pi with cooling Fan. We need to mention you that when you install the 3.5 inch touch screen , the can't install the cover and fan at the same time.

Dual Use Case

1. Daul use :
First use : install Raspberry Pi with 3.5 inch touchscreen ;
Second use : install Raspberry Pi with cooling fan
( as the following picture show )


2. Material : ABS

3. How to install the 3.5 inch touchscreen :

(1). Install the Raspberry Pi on the base board

(2). Please stick the pad on the back of 3.5 inch touchscreen ( as the picture show ) , then insert the 3.5 inch touchscreen on Raspberry Pi by GPIO pin correctly ( don't be malposed )

(3). Install the enclosure part


Power Adapter

1. Interface : USBC

2. Input : 100 - 240V , 0.3A , 50/60Hz AC

3. Output : 5V 3A , DC

4. Plug : EU / US / UK / AU ( leave a message in the order for the type you want )

5. Chariging cable : with ON/OFF switch button on it to cut off or start the power , about 95cm length

Heat Sink

1. 1 copper and 3 aluminum , for CPU , RAM , Ethernet card and USB control module on PCB
2. With self stick thermal conductive adhesive on the back.

3.5 inch Touch Screen

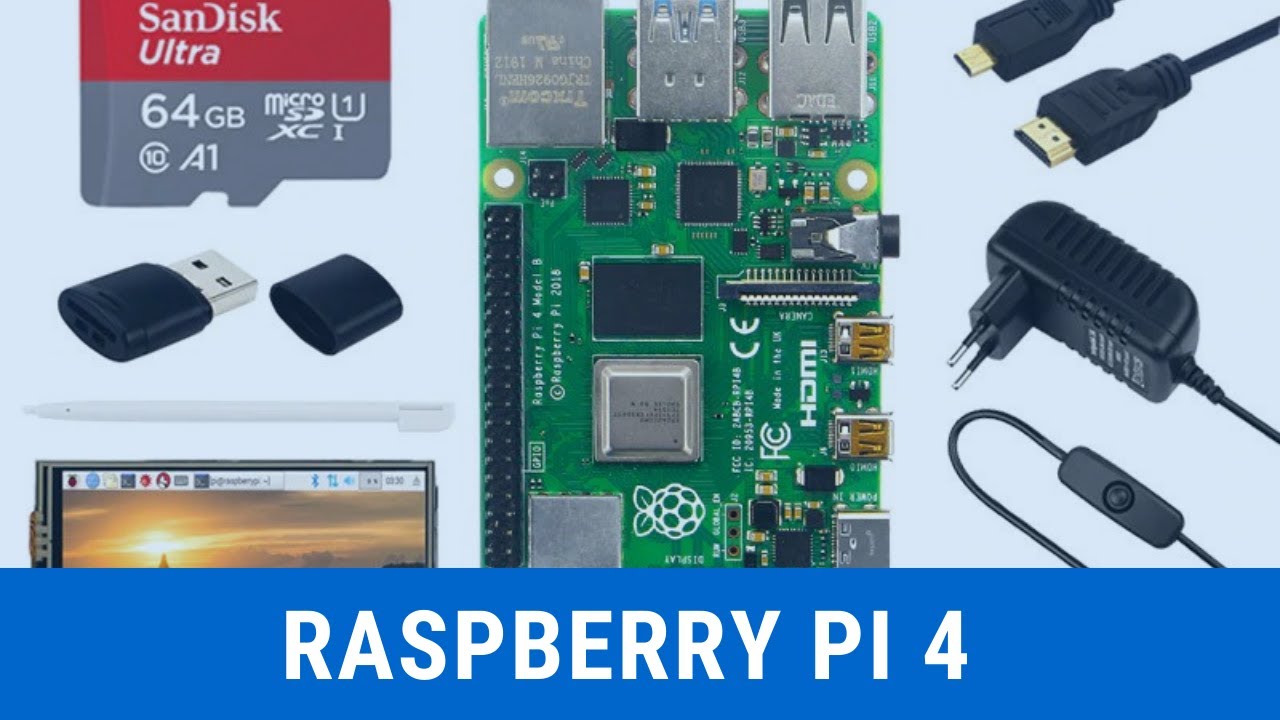

Packing List

Bundle 1

1 x Raspberry Pi 4 Model B (4GB RAM)
1 x ABS Case
4 x Heasinks
1 x 64GB SD Card
1 x USB Reader
1 x 3A USBC Power Adapter
1 x 3.5 inch Touch Screen
1 x Touch Pen
(as following picture)



How to use the 3.5 inch Touch Screen

Step 1：Download the Raspbian image
https://www.raspberrypi.org/downloads...

Step 2: Burn the system image to SD card
https://projects.raspberrypi.org/en/p...

Stop 3 : Connect the LCD to Raspberry Pi , insert the SD card , connect the Ethernet and power on

Step 4: Open terminal(SSH) and install the driver on RaspberryPi
Run:

sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD35-show

Wait a few minutes, when the system reboot it will be ok.

You can refer to this link for detail:
http://www.lcdwiki.com/3.5inch_RPi_Di...
On the bottom of link , there is the system image for download to use directly.
