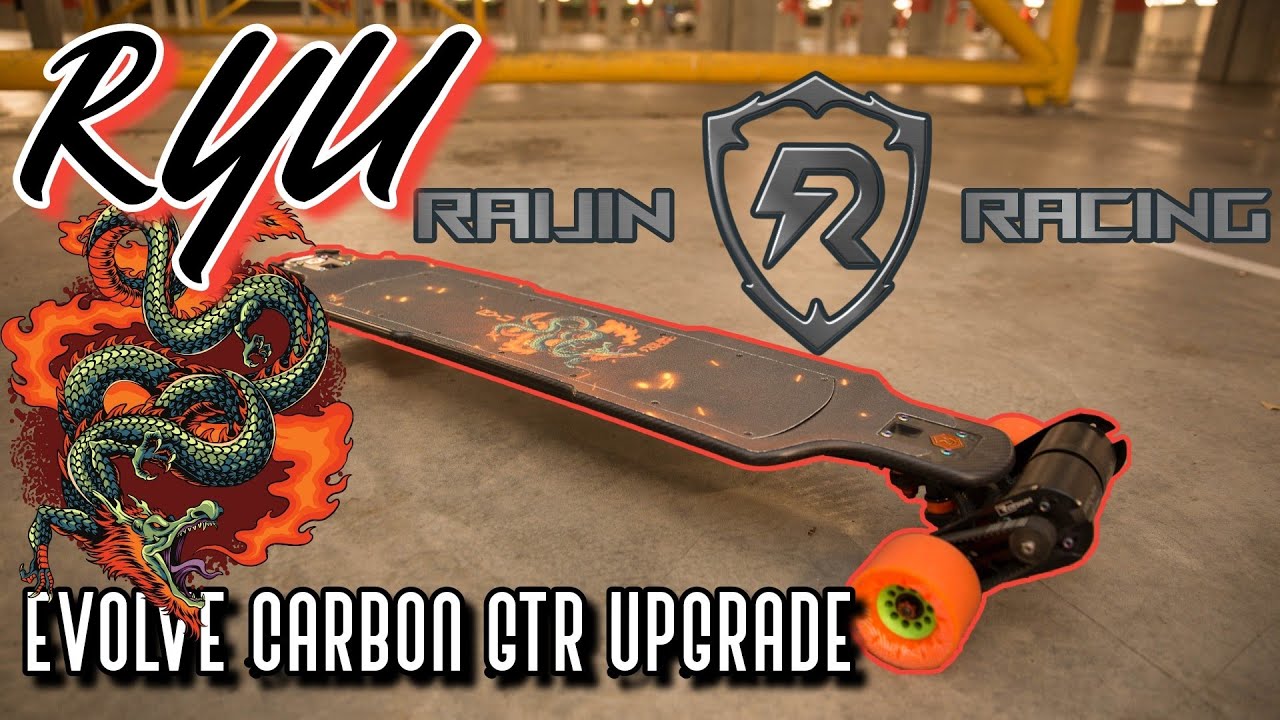

Скачать или смотреть [Evolve Carbon GTR Upgrade] 6500 Watts ~RYU~ |Raijin Racing| The Most Powerful Upgrade Available.

Designed And Built By Raijin Raicing

raijinracing.com

Remote: FreeSK8 puck puck bruce mod
Charging: 4A
.
Specs
Pneumatic:
.
Top Speed: 47km/h
Battery max output: 6,500 Watts
Battery capacity: 560Wh
Charge time: 3 hours
Motor output (potential): 6,500 Watts total
• Average range: estimated 37km
• Gear ratio: 4.1
Wheel torque: 37Nm
RPM: 7500


Urethane:
.
.
Top Speed: 55km/h
Battery max output: 6,500 Watts
Battery capacity: 560Wh
Charge time: 3 hours
• Motor output (potential): 6,500 Watts total
Average range: estimated 45km
• Gear ratio: 2
• Wheel torque: 22Nm
• RPM: 7500
• Esc Stormcore 60d+
• Battery 12s 3p 21700 Molicel P42A

Motors-

Raijin Racing Strike Motors

Best in class 6374 motors, semi-sealed, sensored and epoxy reinforced.

Specs

• Peak power: 4600W

• Peak current: 90A

• Voltage: 67.2V

• Efficiency: 85%-90%

• Torque: 6Nm

• Winding: 150Kv

• Stator: 53x45mm, 0.2mm laminations

• Shaft: 10mm stepped to 8mm with keyway, 34mm length

• Phase wire: 12AWG/4mm bullet, 320mm long w/ braided nylon sleeve

• Poles: 14

• Magnets: N42SH

• Bearings: triple supported NMB

• Weight: 980g
