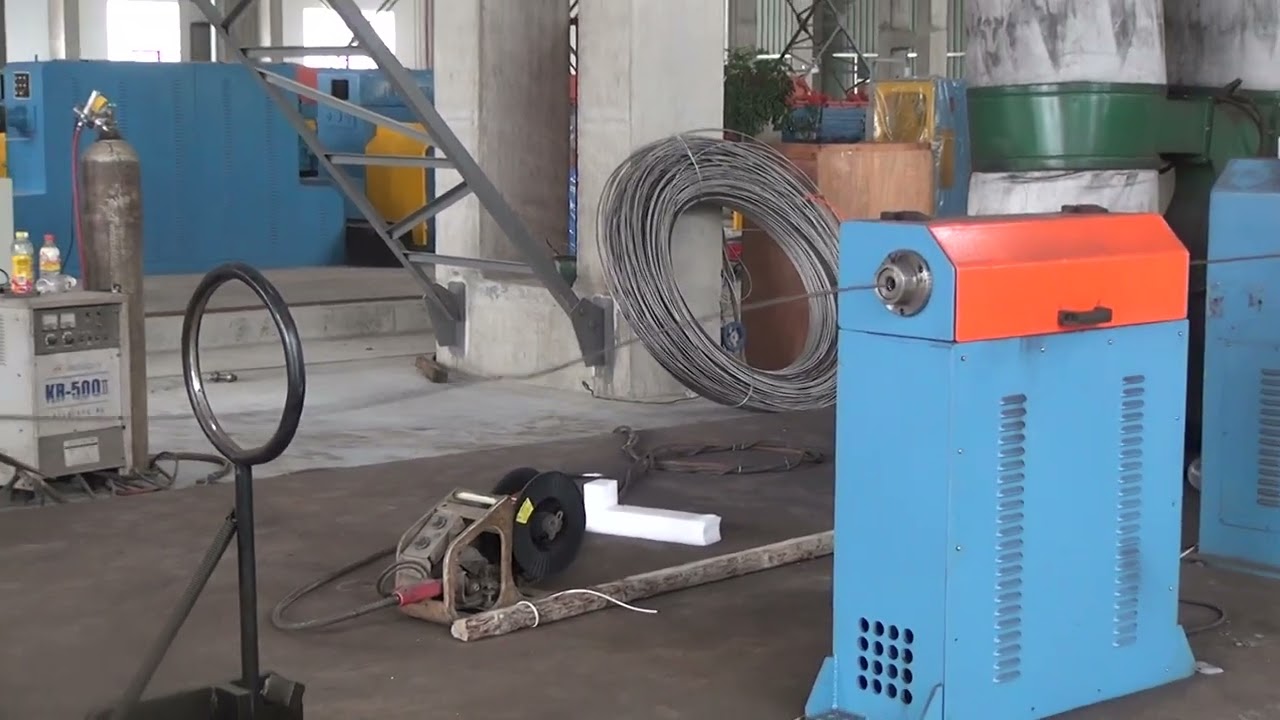

Duck-nip Payoff Stand
----------------------------
Duck-nip Payoff Stand,The simple horizontal type pay-off stand for dry type wire drawing machine,
We offer the complete range of overhead payoffs for intermediate drawn wires which are available for various types of dry wire
drawing machines. The products from this range can also be customized as per the requirements of the clients.
The Overhead Payoff Unit is used for uncoiling wire rod coils with diameters ranging from 5.5 mm to 16 mm and ensures continuous feeding of the line.Each finger can load 2500KG coil, It is composed of two tilting fingers, where the wire rod coils are loaded in sequence, and a pay-off tower with sufficient height to guarantee high-speed wire uncoiling without tangles.
The vertical pay-offs are recommended up to medium wire rod diameters sizes and are composed of two main devices that works in combination:
Rod diameter: ø5,5 – ø12 mm
Max. coil weight: 6000 kg
Wire Quality: High carbon steel wire or heavy low carbon wire
Typical coil size: D int ø ~850-900 mm;D ext ø ~1250 – 1300 mm;Height ~1800 – 2100 mm
