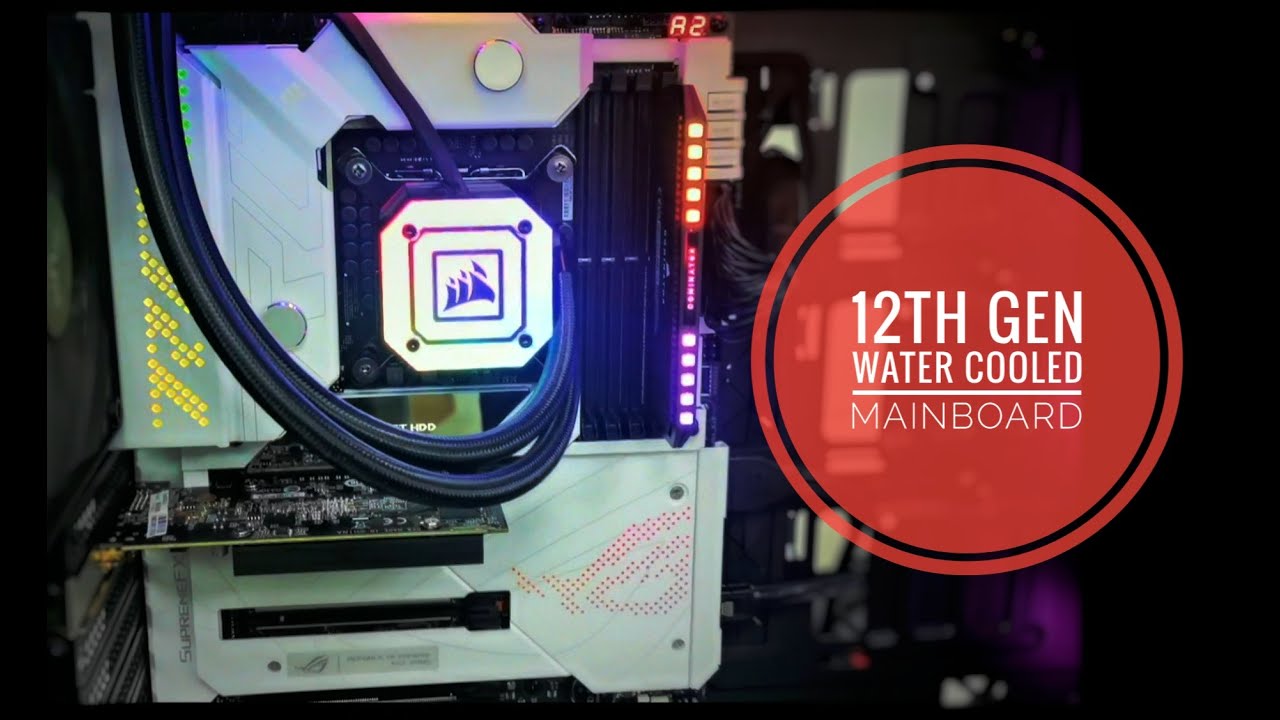

Скачать или смотреть Asus Rog Maximus formula WIFI-6 intel 12th/13th gen water-cooled motherboard |

Model
Asus ROG MAXIMUS Z690 FORMULA
Chipset Intel Z690 , CPU Sockets LGA1700
Bluetooth Bluetooth 5.2 ,Wi-Fi Yes
RaidSupport 0, 1, 5, 10 /TPM Port Yes /RGB Support Yes

Supported CPU 12th Gen Intel Core Processors & Pentium Gold and Celeron Processors
Warranty 3 Year

Memory Type DDR5/Dual /Memory Slot 4 / Memory Max. 128GB
Memory MHz 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory

USB Port 2 x USB Type-C Thunderbolt 4 ports, 6 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 3 x USB 2.0 Type-A

HDMI Port 1/ DisplayPort (DP) 1 /SATA Port 6 /BIOS Type 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS ,CrossFire Support No,

PCI Express Slot 2 x PCIe 5.0 x16 slots supports x16 or x8/x8 modes, 1 x PCIe 4.0 x16 slot supports x4 or x4/x4 mode

M.2 Slot 5 x M.2 (1 x M.2 type 2242/2260/2280/22110 support PCIe 4.0 x4 mode), (1 x M.2 type 2242/2260/2280 supports PCIe 3.0 x4 mode), (1 x M.2 type 2242/2260/2280 supports PCIe 4.0 x4 & SATA modes), (1 x M.2 type 2242/2260/2280/22110 suppports PCIe 4.0 x4 mode), (1 x M.2 type 2242/2260/2280/22110 suppports PCIe 4.0 x4 mode)

LAN Chipset Marvell 10Gb Ethernet(10/100/1000/2500/10000Mbps)
Wi-Fi Technology Intel Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax)

Audio Chipset ROG SupremeFX HD Audio CODEC ALC4082
Audio Channel 7.1 Channel

Special Features Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, OLED 2, ASUS HYDRANODE, ROG Exclusive Software, ASUS Exclusive Software, WEFI BIOS

Others Manageability: WOL by PME, PXE, Internal I/O Connectors: (1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 4 x 4-pin Chassis Fan header(s), 1 x W_PUMP+ header(s), 1 x 2-pin Water In header, 1 x 2-pin Water Out header, 1 x 3-pin Water Flow header, 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, 1 x 6-pin PCIe Graphics Card connector, 3 x Addressable Gen 2 header(s), 1 x AURA RGB header(s), 1 x FlexKey button, 1 x 12-1 pin Front Panel Audio header (AAFP), 1 x ReTry button, 1 x SPI TPM header (14-1pin), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header)
